DS21503 Rev. 11 - 2 1 of 4 1.5KE6V8(C)A - 1.5KE400(C)A
www.diodes.com ã Diodes Incorporated
Maximum Ratings @ T
A
= 25°C unless otherwise specified
1.5KE6V8(C)A - 1.5KE400(C)A
1500W TRANSIENT VOLTAGE SUPPRESSOR
· 1500W Peak Pulse Power Dissipation
· Voltage Range 6.8V - 400V
· Constructed with Glass Passivated Die
· Uni and Bidirectional Versions Available
· Excellent Clamping Capability
· Fast Response Time
· Lead Free Finish, RoHS Compliant (Note 3)
· Case: DO-201
· Case Material: Transfer Molded Epoxy. UL Flammability
Classification Rating 94V-0
· Moisture Sensitivity: Level 1 per J-STD-020C
· Terminals: Finish - Tin. Leads: Axial, Solderable per
MIL-STD-202 Method 208
· Ordering Information: See Page 4
· Marking: Unidirectional - Type Number and Cathode Band
· Marking: Bidirectional - Type Number Only
· Weight: 1.12 grams (approximate)
Features
Mechanical Data

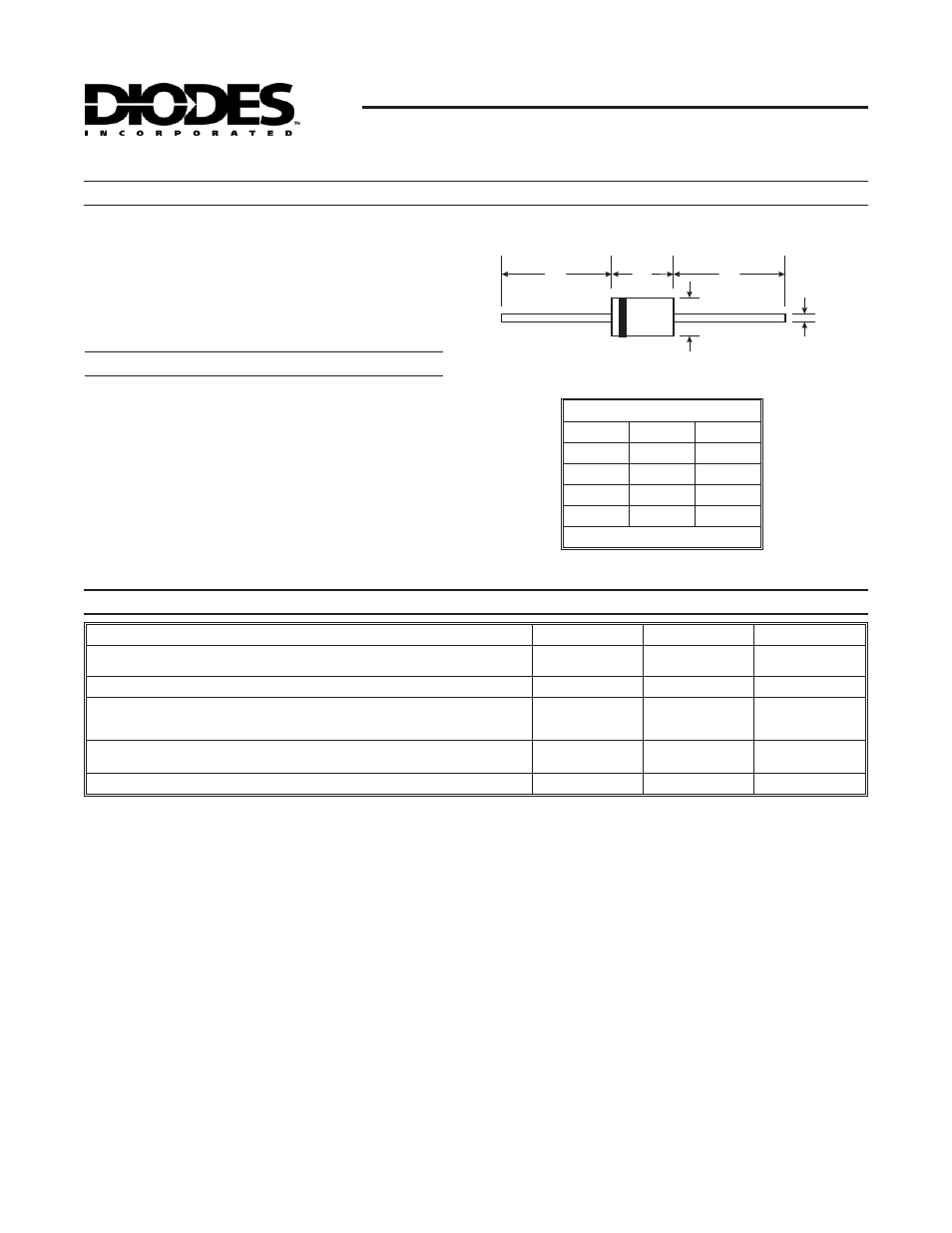

DO-201
Dim Min Max
A 25.40 —
B 8.50 9.53
C 0.96 1.06
D 4.80 5.21
All Dimensions in mm
A A B
C
D
Notes: 1. Suffix ‘C’ denotes bidirectional device.
2. For bidirectional devices having V R of 10 volts and under, the I R limit is doubled.
3. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see EU Directive Annex Notes 5 and 7.
Characteristic Symbol Value Unit
Peak Power Dissipation at t
p
= 1.0ms
(Non-repetitive current pulse, derated above T
A
= 25°C)
P
pk 1500 W
Steady State Power Dissipation at T
L
= 75°C Lead Lengths 9.5 mm P
d 5.0 W
Peak Forward Surge Current, 8.3 Single Half Sine Wave Superimposed on
Rated Load (8.3ms Single Half Sine Wave,
Duty Cycle = 4 pulses per minute maximum)
I
FSM 200 A
Forward Voltage @ I
F
= 50A 300µs Square Wave Pulse, V
BR £ 100V
Unidirectional Only V
BR
> 100V
V F
3.5
5.0
V
Operating and Storage Temperature Range T
j,
T
STG -55 to +175 °C
