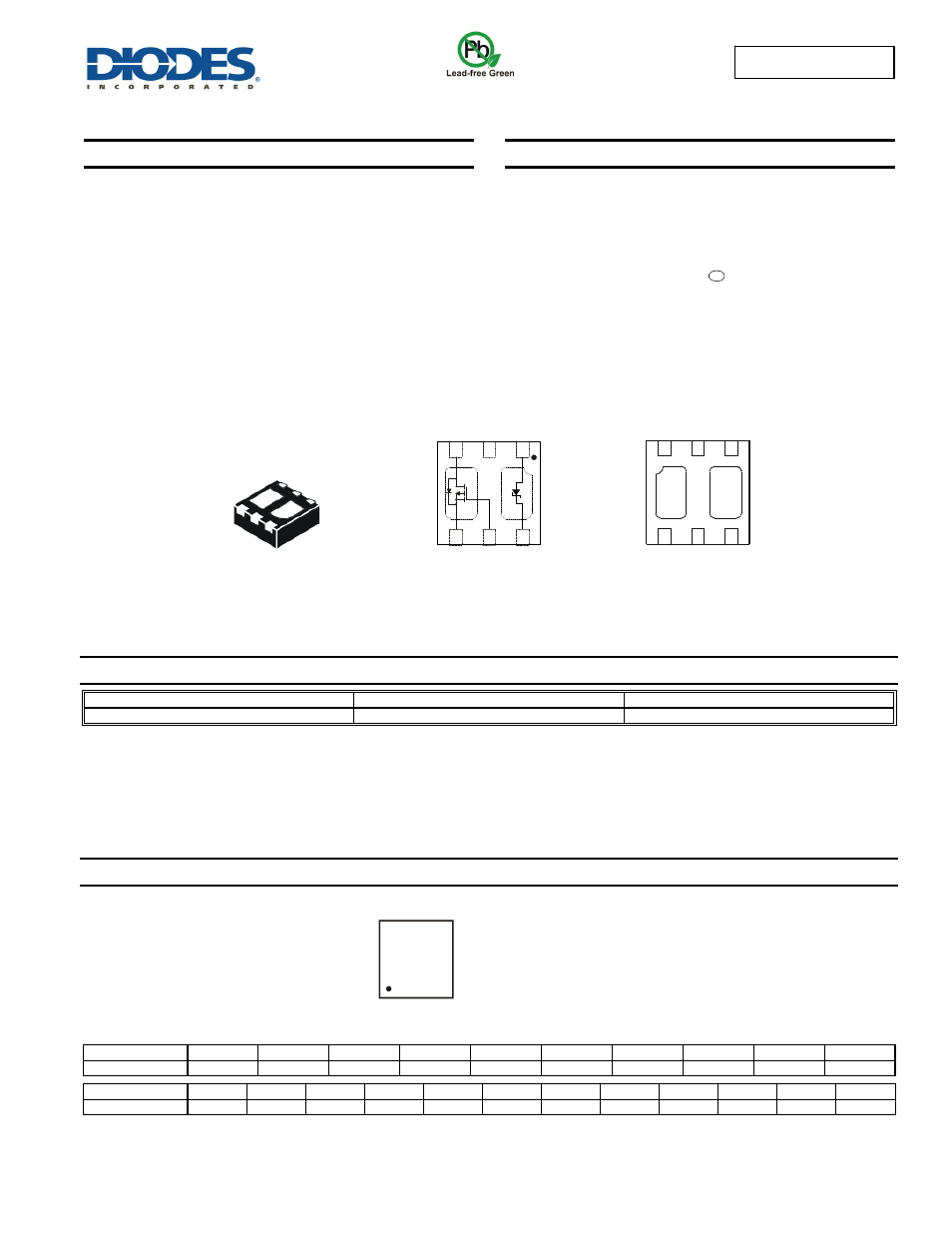

DMS2220LFDB
P-CHANNEL ENHANCEMENT MODE MOSFET WITH INTEGRATED SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low On-Resistance
• 95mΩ @V
GS
= -4.5V
• 120mΩ @V
GS
= -2.5V
• 86mΩ (typ) @V
GS
= -1.8V
•
Low Gate Threshold Voltage, -1.3V Max
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Incorporates Low V
F
Super Barrier Rectifier (SBR)
•
Low Profile, 0.5mm Max Height
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: U-DFN2020-6 Type B
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
e4
•
Weight: 0.0065 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMS2220LFDB-7
U-DFN2020-6 Type B
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015 2016 2017
Code V W X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
U-DFN2020-6
Type B
Bottom View
Top View
Internal Schematic
1
2
3
4
5
6
A
NC
D
S
G
K
Q1
D1
Bottom View
Pin Configuration
A
NC
D
S
G
K
K
D
ME = Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
Dot denotes Pin 1
ME
YM
