DMP6180SK3
Document number: DS36172 Rev. 3 - 2
1 of 6
July 2013
© Diodes Incorporated
DMP6180SK3
NEW PROD
UC
T
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
C
= +25°C
-60V
110m
Ω @ V
GS
= -10V
-14A
140m
Ω @ V
GS
= -4.5V
-12A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
DC-DC
Converters
Power Management Functions
Analog
Switch
Features and Benefits
Low
On-Resistance
Low Input Capacitance
Totally Lead-Free & Fully RoHS compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.33 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance Case
Packaging
DMP6180SK3-13
Standard
TO252
2,500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

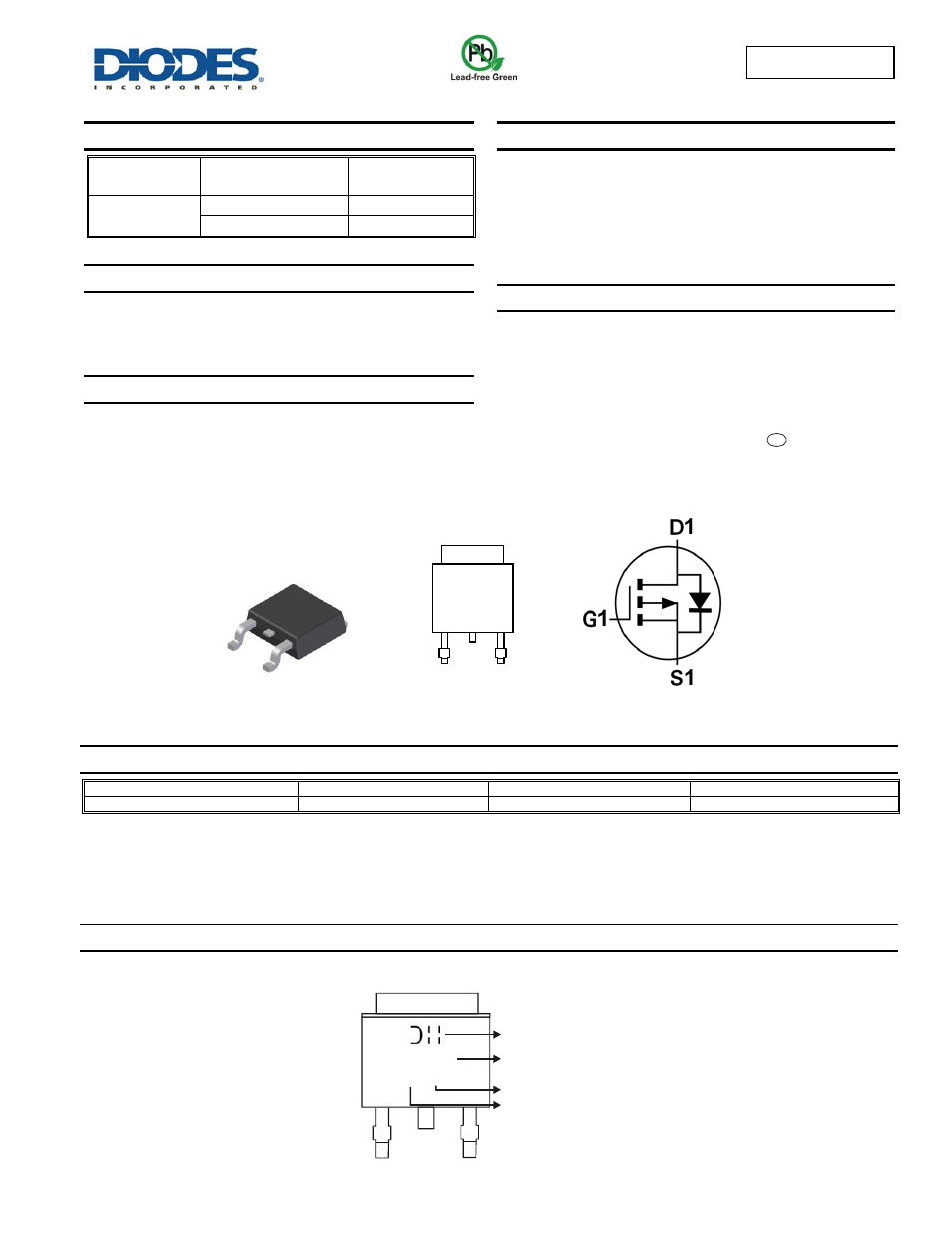

Marking Information
Internal Schematic
G
S
D
D
Top View
Top View
TO252
YYWW
P618SK
Logo
Part no.
.
Year: “11” = 2011
Xth week: 01 ~ 53
e3
