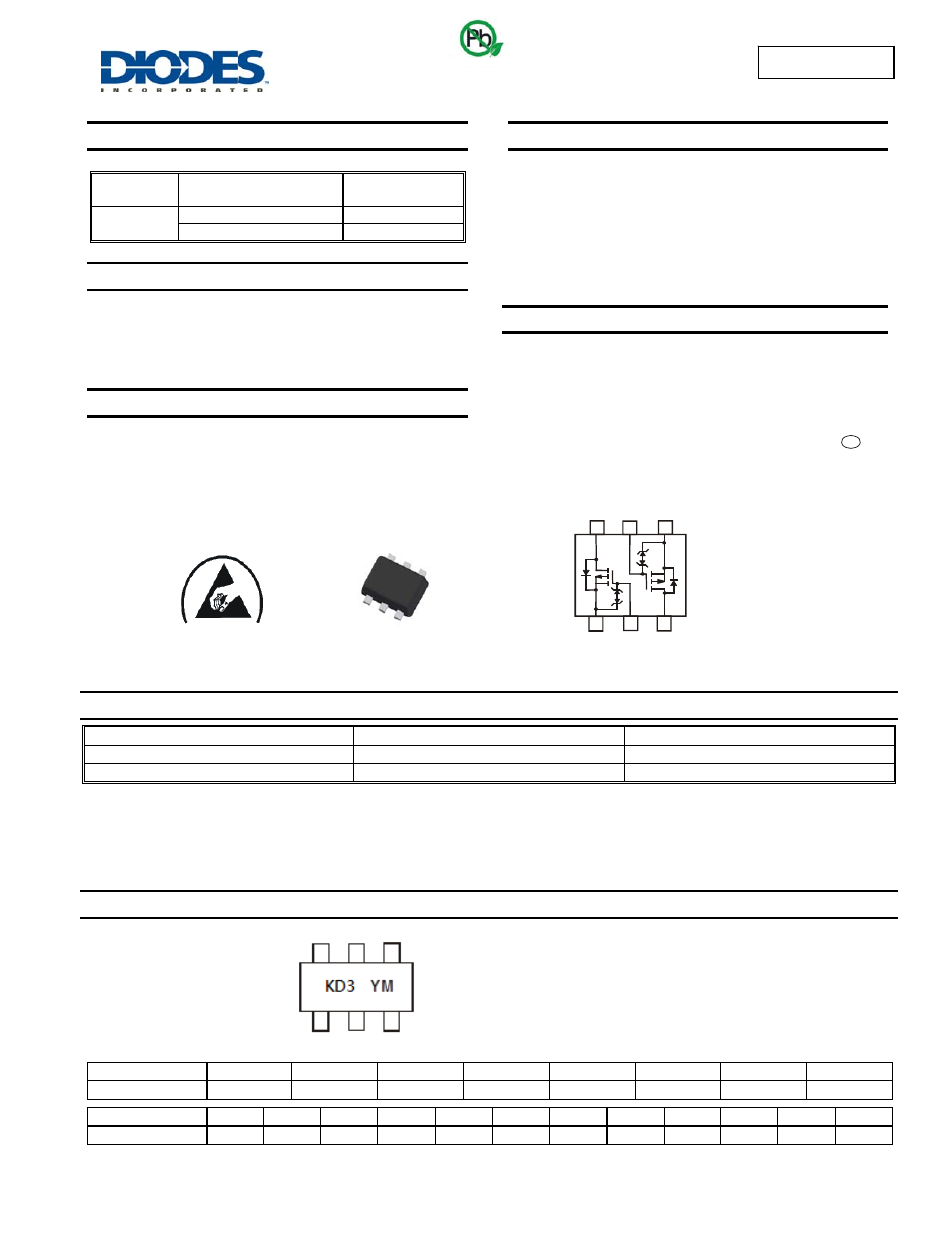

DMP56D0UV
Document number: DS36174 Rev. 2 - 2
1 of 5
www.diodes.com
June 2013
© Diodes Incorporated
DMP56D0UV
DUAL P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V (BR)DSS R DS(ON)
I
D
T A = +25°C
-50V
6Ω @ V
GS
= -4 V -160mA
8Ω @ V
GS
= -2.5V -120mA
Descriptions
This new generation MOSFET has been designed to minimize the
on-state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
 DC-DC Converters
 Power Management Functions
 Battery Operated Systems and Solid-State Relays
Features and Benefits
 Low On-Resistance
 ESD Protected Gate
 Low Input Capacitance
 Fast Switching Speed

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT563
 Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020D
 Terminals: Finish  Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
 Weight: 0.006 grams (approximate)
Ordering Information (Note 4)
Part Number Case Packaging
DMP56D0UV -7 SOT563 3000/Tape & Reel
DMP56D0UV -13 SOT563 10000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2008 2009 2010 2011 2012 2013 2014 2015
Code V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT563
TOP VIEW
TOP VIEW
Internal Schematic
S
1
D
1
D
2
S
2
G
1
G
2
KD3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
ESD PROTECTED
e3
Green
