DMP4025LK3
Document Number:35938 Rev. 3 - 2
1 of 8
www.diodes.com
March 2014
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N

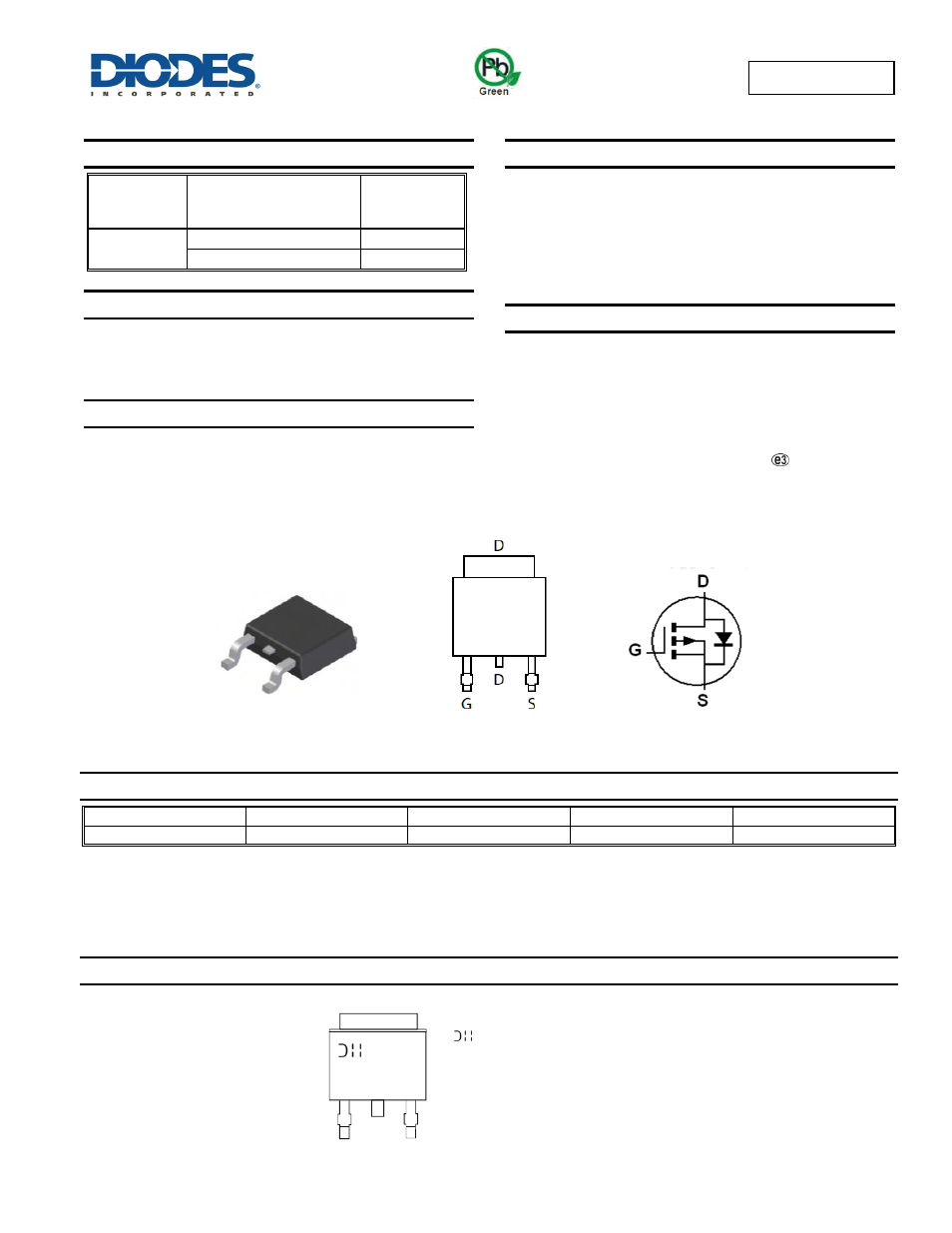

DMP4025LK3
40V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(on)
max
I
D
max
T
A
= +25°C
(Note 6)
-40V
25mΩ @ V
GS
= -10V -8.6A
45mΩ @ V
GS
= -4.5V -7.0A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
 Motor control
 Backlighting
 DC-DC
Converters
 Printer equipment
Features
 Low On-Resistance
 Fast Switching Speed
 Low Input/Output Leakage
 Lead-Free Finish; RoHS compliant (Note 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: TO252 (DPAK)
 Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0 (Note 1)
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals Connections: See diagram below
 Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
 Weight: 0.315 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
DMP4025LK3-13 P4025L 13 16 2,500
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View
TO252
Top View
Pin Out
Device symbol
= Manufacturer’s Marking
P4025L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 10 = 2010)
WW = Week (01 - 53)
YYWW
P4025L
