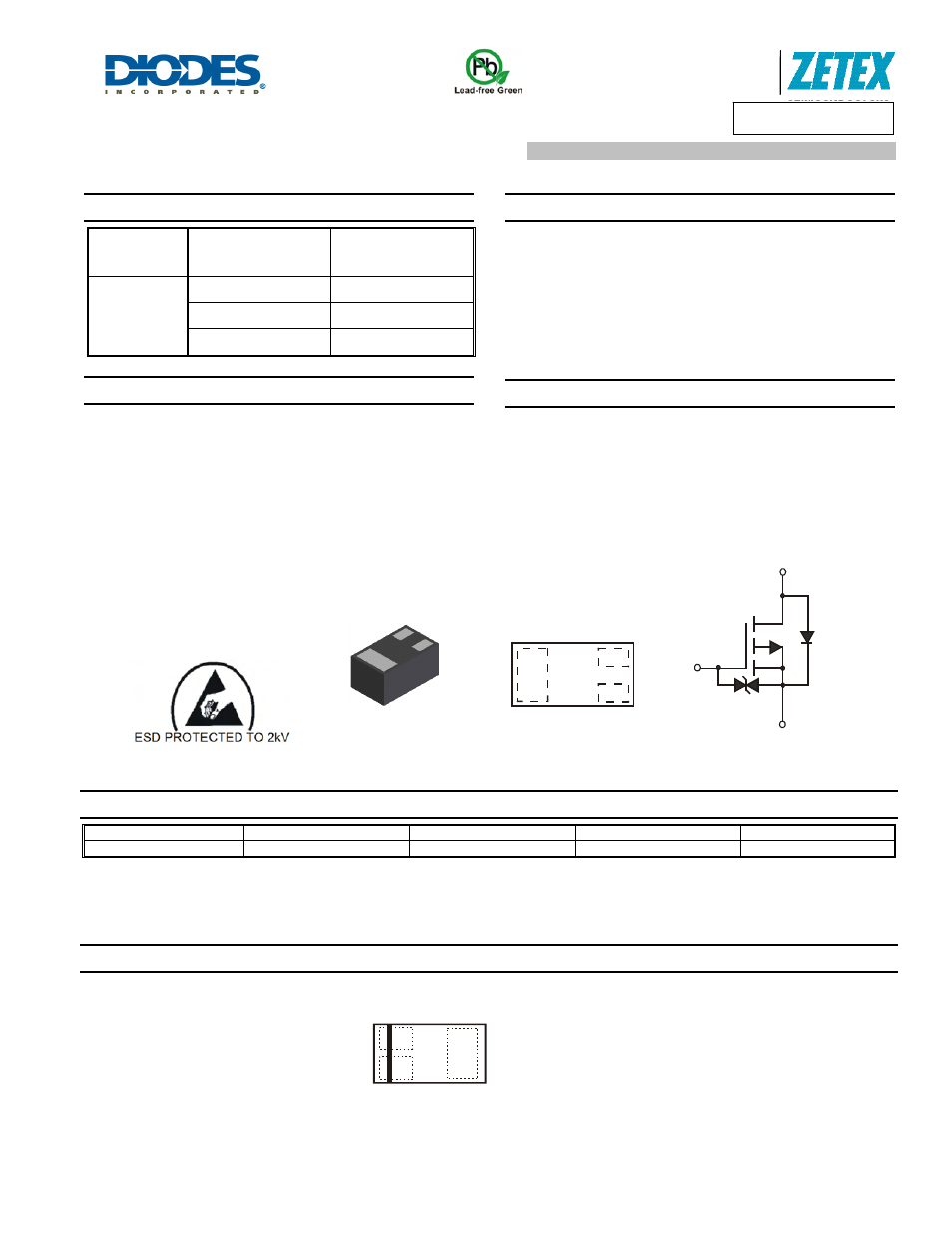

DMP31D0UFB4
D
atasheet number: DS35587 Rev. 1 - 2
1 of 7
January 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
DMP31D0UFB4
30V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
Max R
DS(on)
Max I
D
@ T
A
= 25
°C
-30V
1
Ω @ V
GS
= -4.5V
-0.76A
1.5
Ω @ V
GS
= -2.5V
-0.62A
2
Ω @ V
GS
= -1.8V
-0.54A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
•
Load Switch in portable electronics
Features and Benefits
•
Footprint of just 0.6mm
2
– thirteen times smaller than SOT23
•
0.4mm profile – ideal for low profile applications
•
Low Gate Threshold Voltage
•
Fast Switching Speed
•
ESD Protected Gate 2KV
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
X2-DFN1006-3
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 3)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DMP31D0UFB4-7B P6
7
8
10,000
Notes:
1. No purposefully added lead
2. Diodes Inc's "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
X2-DFN1006-3
Equivalent Circuit
Top View
Internal Schematic
Bottom View
Source
Gate
Protection
Diode
Gate
Drain
D
S
G
P6 = Product Type Marking Code
DMP31D0UFB4-7B
P6
Top View
Bar Denotes Gate
And Source Side
