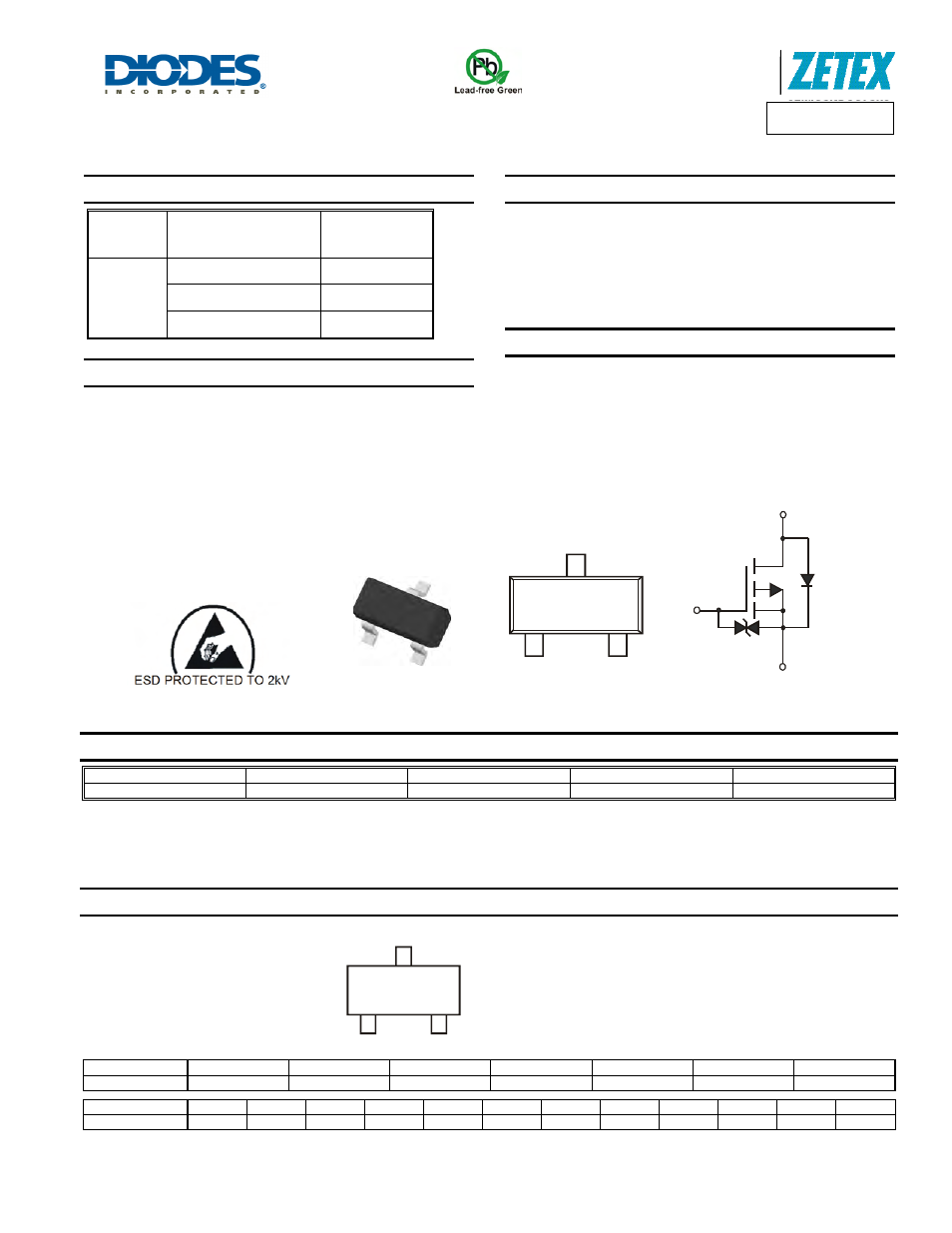

DMP31D0U
D
atasheet number: DS35754 Rev. 1 - 2
1 of 7
February 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
DMP31D0U
30V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
Max R
DS(on)
Max I
D
@ T
A
= 25
°C
-30V
1
Ω @ V
GS
= -4.5V
-0.67A
1.5
Ω @ V
GS
= -2.5V
-0.54A
2
Ω @ V
GS
= -1.8V
-0.47A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
•
Load Switch in portable electronics
Features and Benefits
•
Low Gate Threshold Voltage
•
Fast Switching Speed
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
ESD Protected Gate 2KV
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin
•
Weight: 0.08 grams (approximate)
Ordering Information
(Note 3)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DMP31D0U-7 P3U
7
8
3,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead. Halogen and Antimony free.
2. Diodes Inc's "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT23
Equivalent Circuit
Top View
Internal Schematic
Top View
Source
Gate
Protection
Diode
Gate
Drain
D
G
S
P3U = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
P3U
YM
