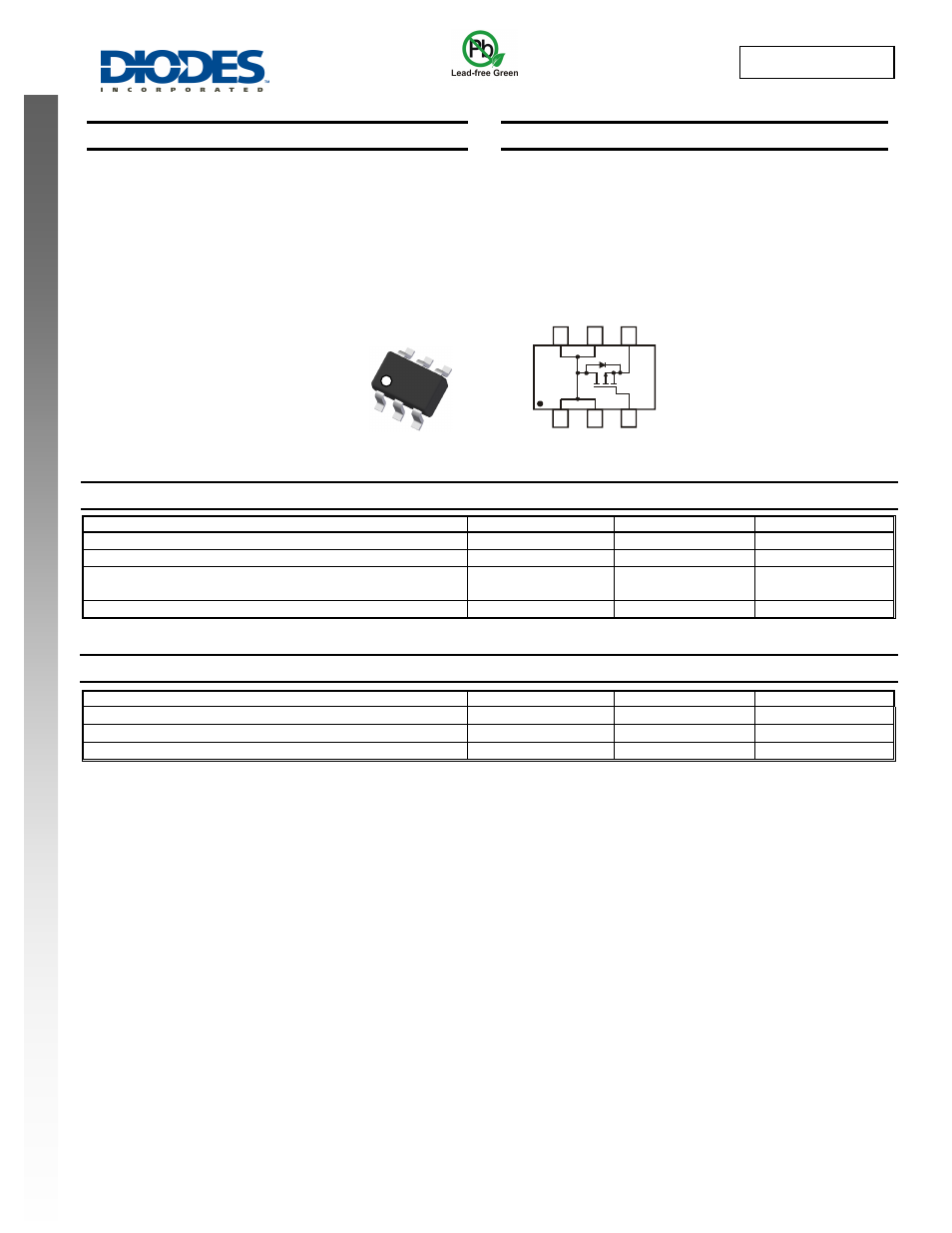

DMP3098LDM
P-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low R
DS(ON)
:
• 65m Ω @V
GS
= -10V
• 115m Ω @V
GS
= -4.5V
• Low Input/Output Leakage
• Lead Free By Design/RoHS Compliant (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• "Green" Device (Note 4)
Mechanical Data
• Case: SOT-26
• Case Material - Molded Plastic. UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208
• Terminal Connections: See Diagram
• Marking Information: See Page 4
• Ordering Information: See page 4
• Weight: 0.008 grams (approximate)
U
C
T
NEW PROD
SOT-26
TOP VIEW
Internal Schematic
G
S D
D
D
D
TOP VIEW
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Drain-Source Voltage V
DSS
-30 V
Gate-Source Voltage V
GSS
±20 V
Drain Current (Note 1) Continuous T
A
= 25°C
T
A
= 70°C
I
D
-4.0
-3.0
A
Pulsed Drain Current (Note 2) I
DM
-14 A
Thermal Characteristics
Characteristic Symbol Value Unit
Total Power Dissipation (Note 1) P
D
1.25 W
Thermal Resistance, Junction to Ambient (Note 1); Steady-State R
θJA
100 °C/W
Operating and Storage Temperature Range T
J
, T
STG
-55 to +150 °C
Notes: 1. Device mounted on 1"x1", FR-4 PC board on 0.1in. 2 pads on 2 oz. Copper pads and test pulse width t ≤10s.
2. Repetitive Rating, pulse width limited by junction temperature.
3. No purposefully added lead.
4. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
DMP3098LDM
Document number: DS31446 Rev. 3 - 2
1 of 4
www.diodes.com
October 2008
© Diodes Incorporated
