Diodes DMP3010LK3 User Manual
Ds g, Product summary, Description and applications

DMP3010LK3
Document number: DS35716 Rev. 4 - 2
1 of 7
February 2012
© Diodes Incorporated

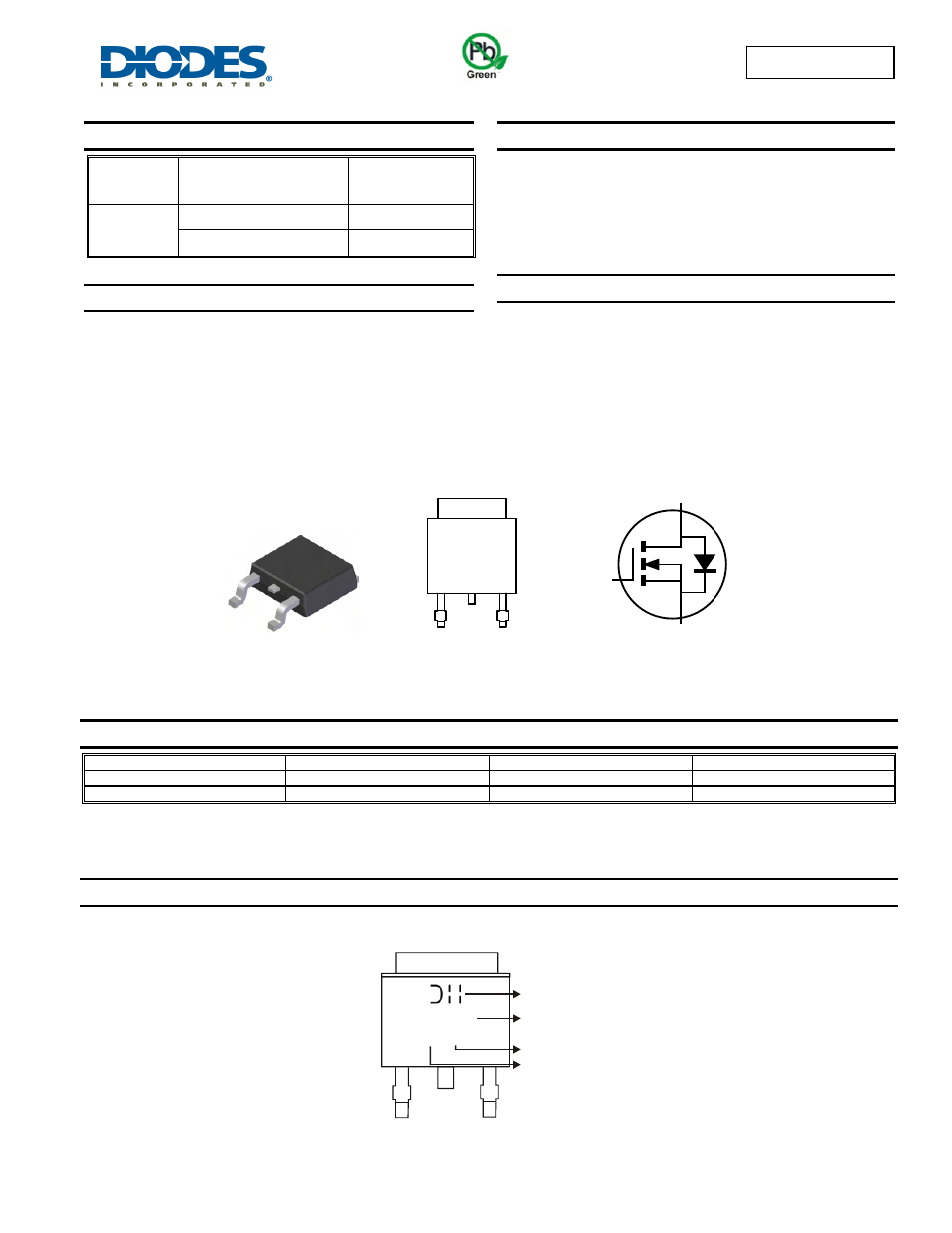

DMP3010LK3
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
A
= 25°C
-30V
8m
Ω @ V
GS
= -10V
-17A
10.2m
Ω @ V
GS
= -4.5V
-14.5A
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
• DC-DC
Converters
•
Power management functions
• Backlighting
Features and Benefits
•
Low Input Capacitance
• Low
On-Resistance
•
Fast Switching Speed
•
"Green" Device (Note 1)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: TO252 (DPAK)
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 2)
Part Number
Qualification Case
Packaging
DMP3010LK3-13
Commercial
TO252
2,500/Tape & Reel
DMP3010LK3Q-13
Automotive
TO252
2,500/Tape & Reel
Notes:
1. Diodes Inc.’s “Green” policy can be found on our w
2. For packaging details, go to our website at
Marking Information
D
S
G
Equivalent Circuit
G
S
D
D
Top View
Pin-Out
Top View
TO252
YYWW
P3010L
Logo
Part no.
.
Year: “11” = 2011
Xth week: 01 ~ 53
