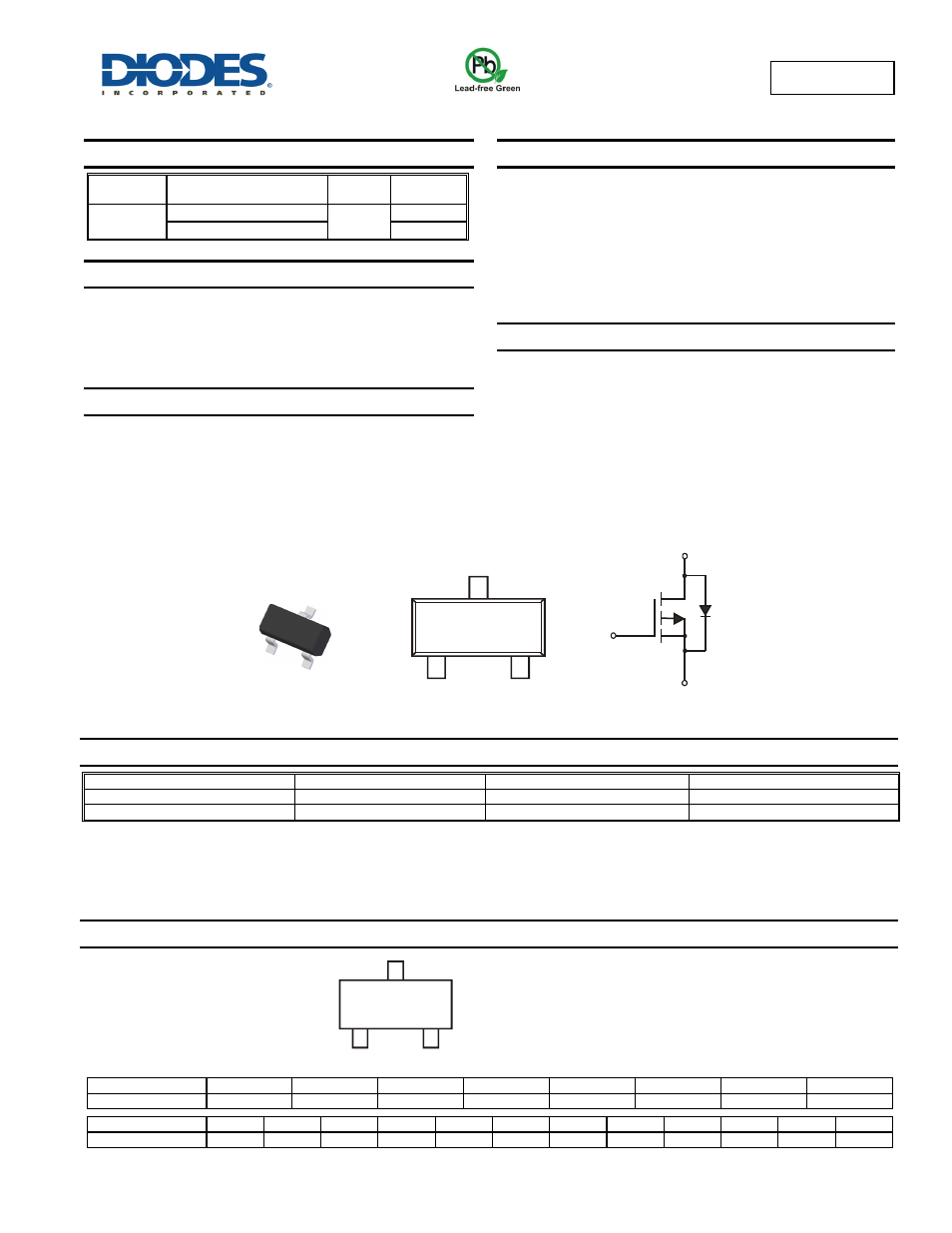

Dmp2225l, Product summary, Description

DMP2225L
Document number: DS31461 Rev. 5 - 2
1 of 6
January 2013
© Diodes Incorporated
DMP2225L
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
A
= +25°C
-20V
110mΩ @ V
GS
= -4.5V
SOT23
-2.6A
225mΩ @ V
GS
= -2.5V
-2.0A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
•
General Purpose Interfacing Switch
•
Power Management Functions
Features
•
Low On-Resistance:
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish — Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
Part Number
Qualification Case
Packaging
DMP2225L
-7
Commercial
SOT-23
3000/Tape & Reel
DMP2225LQ
-7
Automotive
SOT-23
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015
Code V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
SOT23
Top View
Top View
D
G
S
Equivalent Circuit
Source
Gate
Drain
2P2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
2P2
YM
