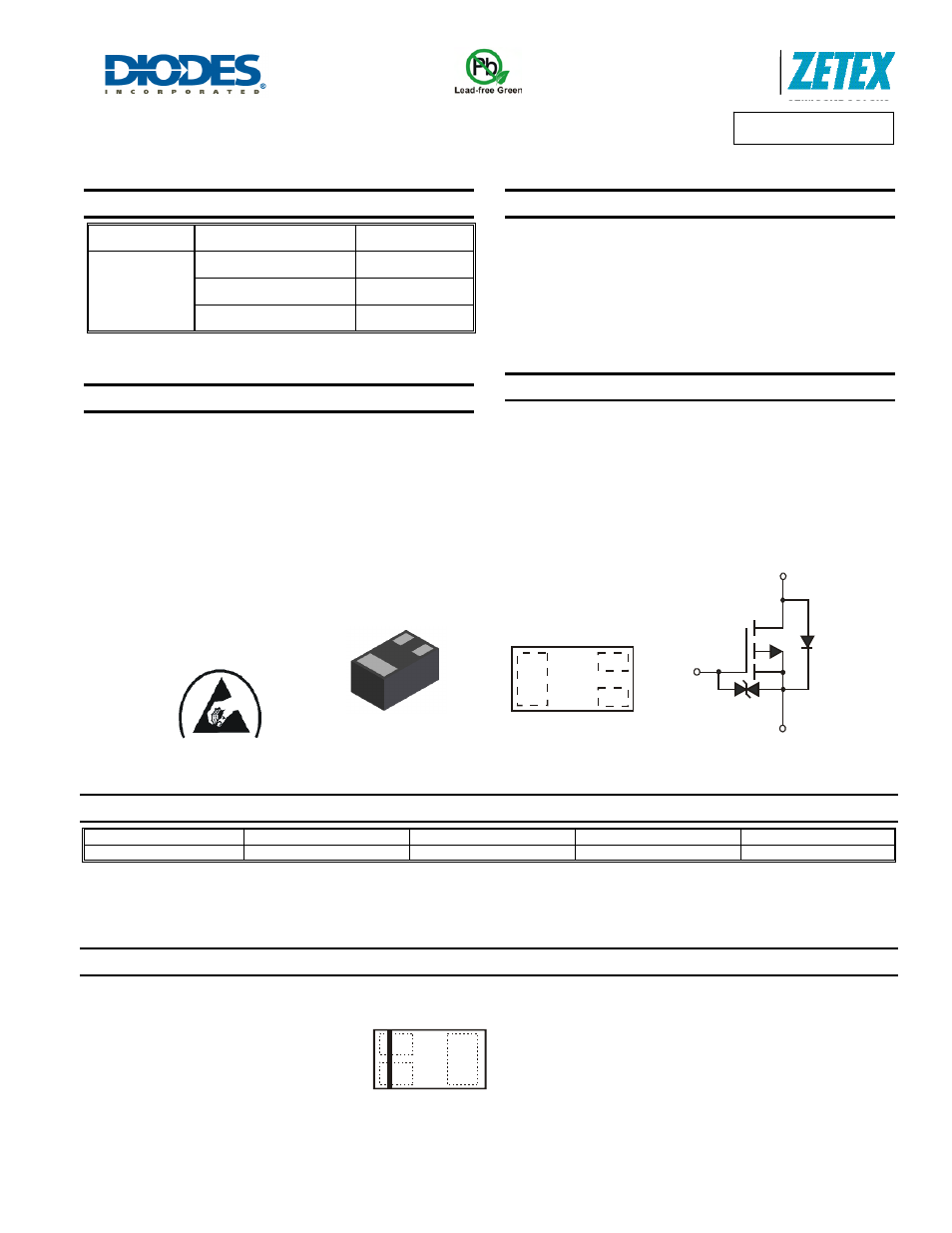

DMP21D0UFB4
D atasheet number: DS35279 Rev. 3 - 2
1 of 7
www.diodes.com
February 2012
© Diodes Incorporated
DMP21D0UFB4
A Product Line of
Diodes Incorporated
20V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
@ T
A
= 25 °C
-20V
495m Ω @ V
GS
= -4.5V -0.77A
690m
Ω @ V
GS
= -2.5V -0.67A
960m Ω @ V
GS = -1.8V -0.57A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
• Portable
electronics
Features and Benefits
•
Footprint of just 0.6mm 2 – thirteen times smaller than SOT23
• 0.4mm profile – ideal for low profile applications
• Low Gate Threshold Voltage
•
Fast Switching Speed
•
Totally Lead-Free & Fully RoHS compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
ESD Protected Gate 3KV
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: X2-DFN1006-3
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
• Weight: 0.001 grams (approximate)
Ordering Information
(Note 3)
Part Number Marking Reel size (inches) Tape width (mm) Quantity per reel
DMP21D0UFB4-7B NO 7 8 10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
X2-DFN1006-3
Equivalent Circuit
Top View
Internal Schematic
Bottom View
Source
Gate
Protection
Diode
Gate
Drain
D
S
G
NO = Product Type Marking Code
DMP21D0UFB4-7B
Top View
Bar Denotes Gate
and Source Side
NO
ESD PROTECTED TO 3kV
