DMP2160UW
Document number: DS31521 Rev. 5 - 2
1 of 5
February 2013
© Diodes Incorporated
NEW PROD
UC
T
DMP2160UW
P-CHANNEL ENHANCEMENT MODE MOSFET
Features
Low
On-Resistance
100m @ V
GS
= -4.5V
120m @ V
GS
= -2.5V
160m @ V
GS
= -1.8V
Very Low Gate Threshold Voltage V
GS(th)
≤ 1V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability

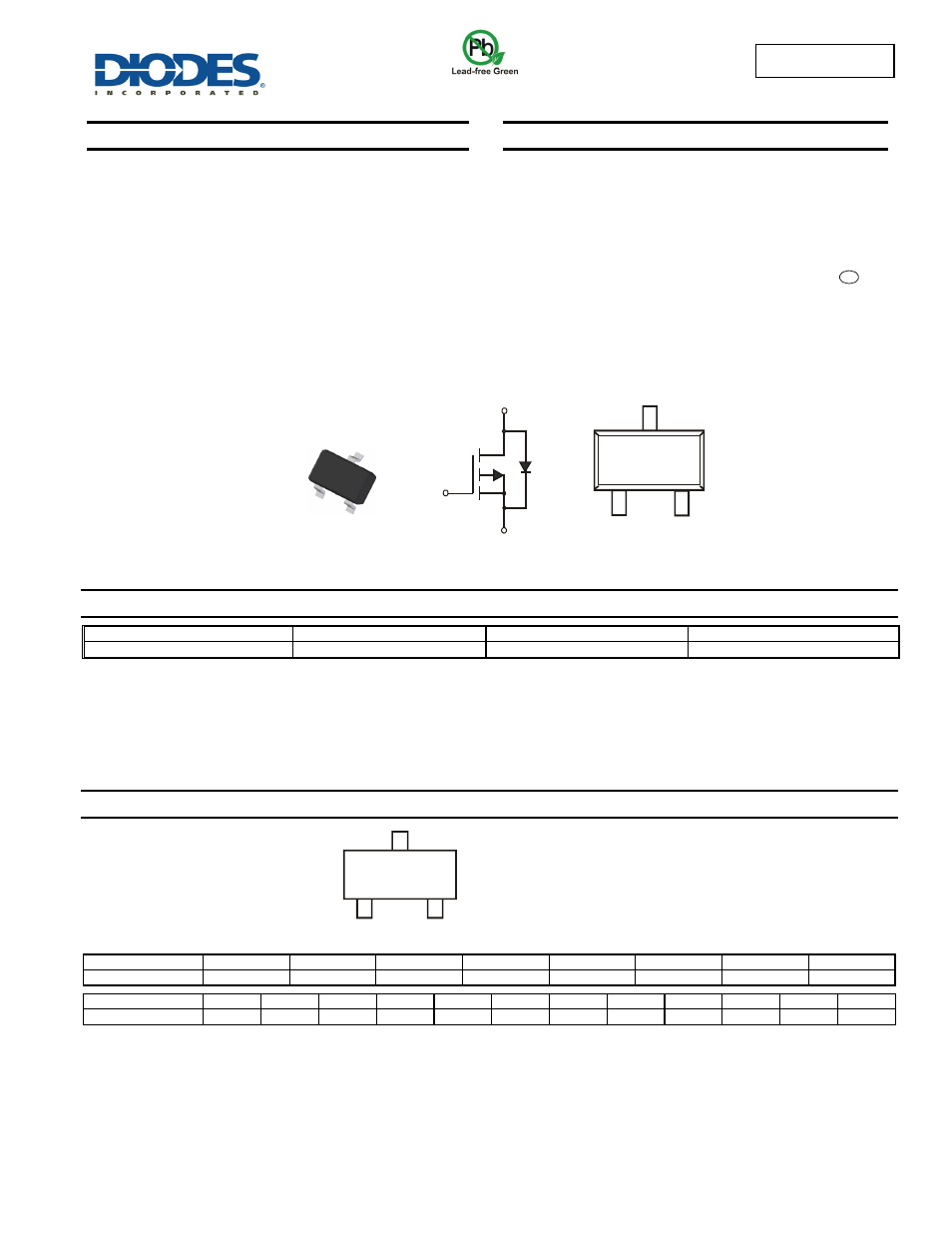

Mechanical Data
Case:
SOT323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals Connections: See Diagram Below
Terminals: Finish - Matte Tin annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance Case
Packaging
DMP2160UW-7
Standard
SOT323
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015
Code V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
SOT323
TOP VIEW
TOP VIEW
Internal Schematic
Source
Gate
Drain
G
S
D
DMF = Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
DMF
YM
e3
