DMP2130LDM
NEW PRODUCT
P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
•
Low R
DS(ON)
:
•
80 m
Ω @V
GS
= -4.5V
•
110 m
Ω @V
GS
= -2.7V
•
130 m
Ω @V
GS
= -2.5V
•
Low Input/Output Leakage
•
Lead Free By Design/RoHS Compliant (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
"Green" Device (Note 4)
Mechanical Data
•
Case: SOT-26
•
Case Material – Molded Plastic. UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208
•
Terminal Connections: See Diagram
•
Marking Information: See Page 2
•
Ordering Information: See page 2
•
Weight: 0.008 grams (approximate)

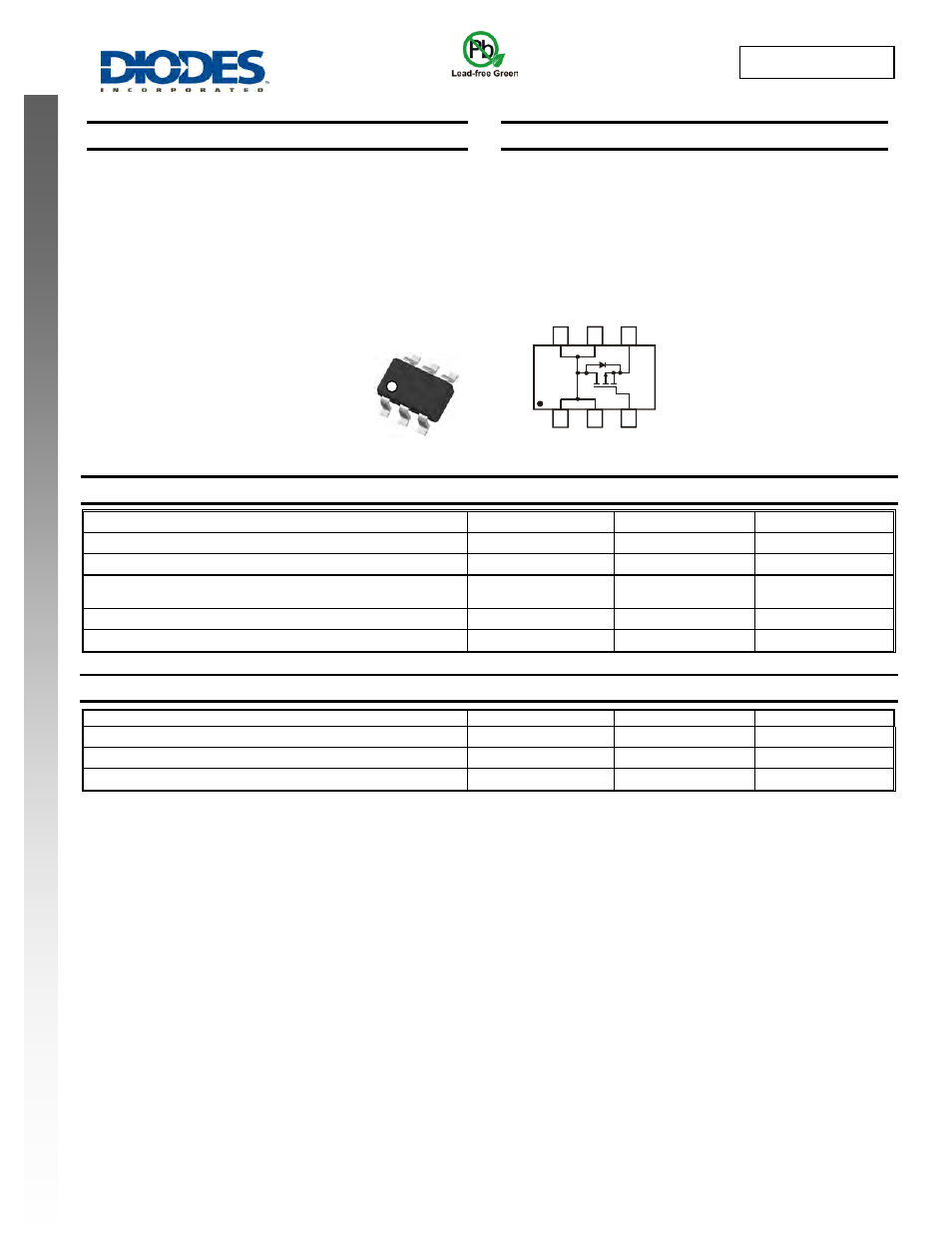

SOT-26
TOP VIEW
Internal Schematic
G
S
D
D
D
D
TOP VIEW
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Unit
Drain-Source Voltage
V
DSS
-20 V
Gate-Source Voltage
V
GSS
±12
V
Drain Current (Note 1) Continuous
T
A
= 25°C
T
A
= 70°C
I
D
-3.4
-2.7
A
Pulsed Drain Current (Note 2)
I
DM
-12 A
Body-Diode Continuous Current (Note 1)
I
S
2.0 A
Thermal Characteristics
Characteristic Symbol
Value
Unit
Total Power Dissipation (Note 1)
P
D
1.25 W
Thermal Resistance, Junction to Ambient (Note 1); Steady-State
R
θJA
100
°C/W
Operating and Storage Temperature Range
T
J
, T
STG
-55 to +150
°C
Notes:
1. Device mounted on 1"x1", FR-4 PC board with 2 oz. Copper and test pulse width t
≤10s.
2. Repetitive Rating, pulse width limited by junction temperature.
3. No purposefully added lead.
4. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
