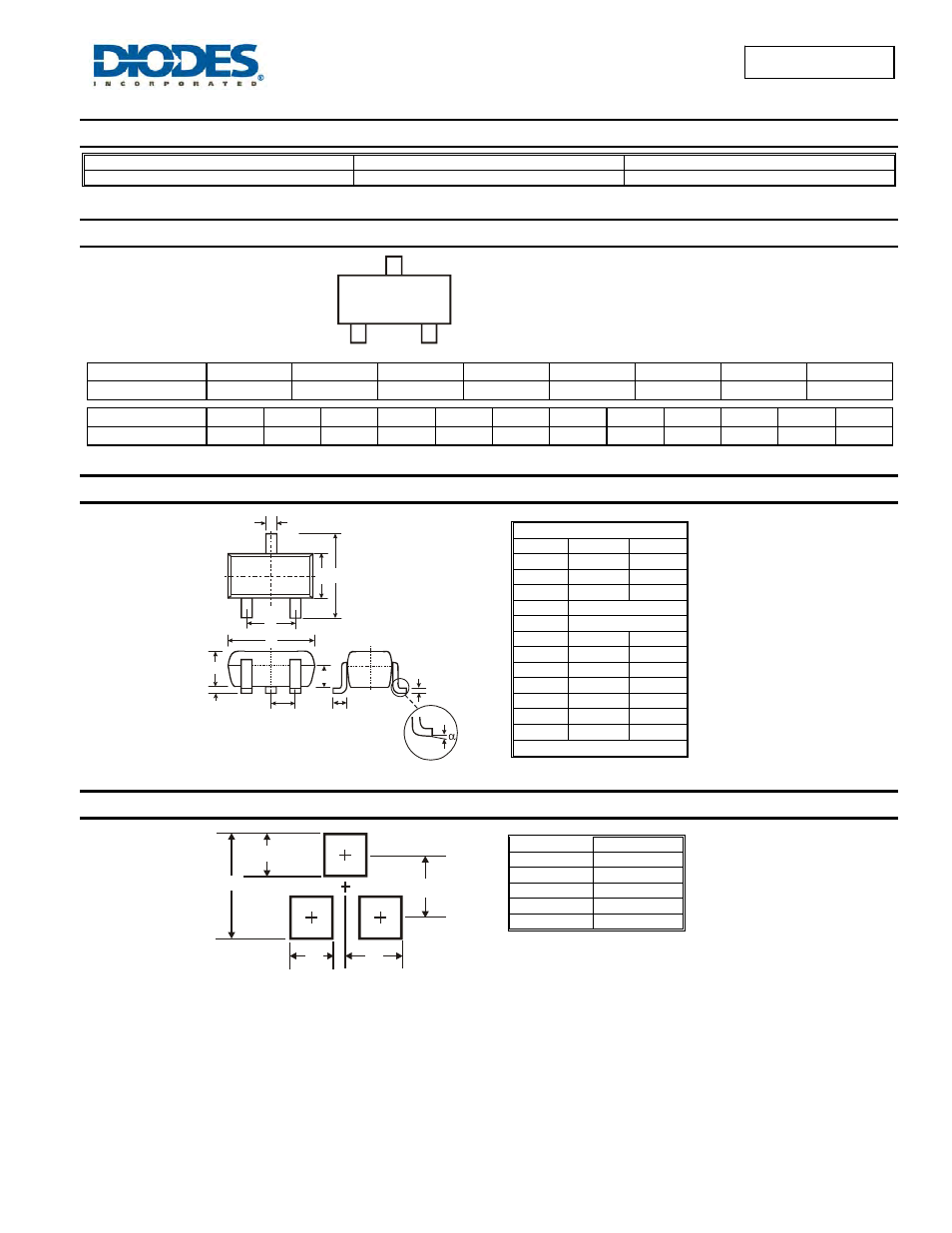

Page 4: Package outline dimensions, Suggested pad layout
DMP2066LSN
Document number: DS31467 Rev. 4 - 2
4 of 5
August 2011
© Diodes Incorporated
DMP2066LSN
NEW PROD
UC
T
Ordering Information
(Note 7)
Part Number
Case
Packaging
DMP2066LSN-7
SC-59
3000/Tape & Reel
Notes:
7. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015
Code V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
Package Outline Dimensions
Suggested Pad Layout
SC-59
Dim Min Max
A
0.35 0.50
B
1.50 1.70
C
2.70 3.00
D
0.95
G
1.90
H
2.90 3.10
J
0.013 0.10
K
1.00 1.30
L
0.35 0.55
M
0.10 0.20
N
0.70 0.80
α
0° 8°
All Dimensions in mm
Dimensions
Value (in mm)
Z
3.4
X
0.8
Y
1.0
C
2.4
E
1.35
PS4 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: V = 2008
M = Month ex: 9 = September
PS4
YM
A
M
J
L
D
B C
H
K
G
TOP VIEW
N
X
E
Y
C
Z
