Diodes DMP2066LDM User Manual
Dmp2066ldm new prod uc t, Features, Mechanical data

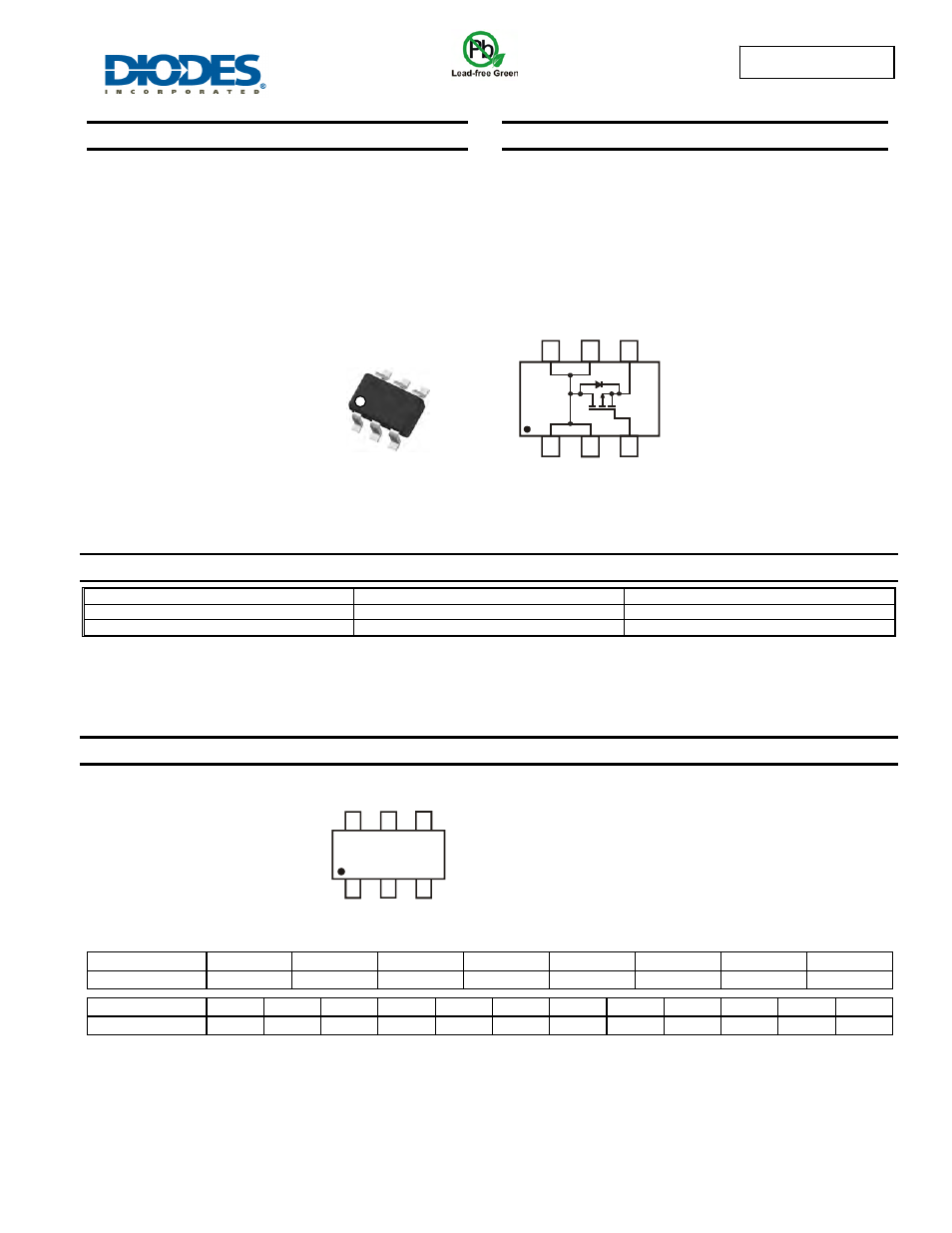

DMP2066LDM
Document number: DS31464 Rev. 4 - 2
1 of 5
December 2011
© Diodes Incorporated
DMP2066LDM
NEW PROD
UC
T
P-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
R
DS(ON)
:
• 40
m
Ω @V
GS
= -4.5V
• 70
m
Ω @V
GS
= -2.5V
•
Low Input/Output Leakage
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT26
•
Case Material – Molded Plastic. UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMP2066LDM-7
SOT26
3000/Tape & Reel
DMP2066LDMQ-7
SOT26
3000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w3. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015
Code V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
SOT26
Top View
DMC = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
DMC
YM
Top View
Internal Schematic
G
S
D
D
D
D
