DMP2039UFDE4
Document number: DS35675 Rev. 3 - 2
1 of 6
March 2012
© Diodes Incorporated
DMP2039UFDE4
25V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
A
= 25°C
-25V
26m
Ω @ V
GS
= -4.5V
-7.3
40m
Ω @ V
GS
= -1.8V
-6.0
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
•
Load Switching
•
Battery Management Application
•
Power Management Functions
Features and Benefits
• Low
R
DS(ON)
– ensures on state losses are minimized
•
0.4mm profile – ideal for low profile applications
•
PCB footprint of 4mm
2
•
Low Input Capacitance
•
ESD Protected Gate
•
Lead, Halogen, and Antimony Free, RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
X2-DFN2020-6
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.006 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMP2039UFDE4-7
X2-DFN2020-6
3,000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead. Halogen and Antimony free.
2. Diodes Inc.’s “Green” policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D

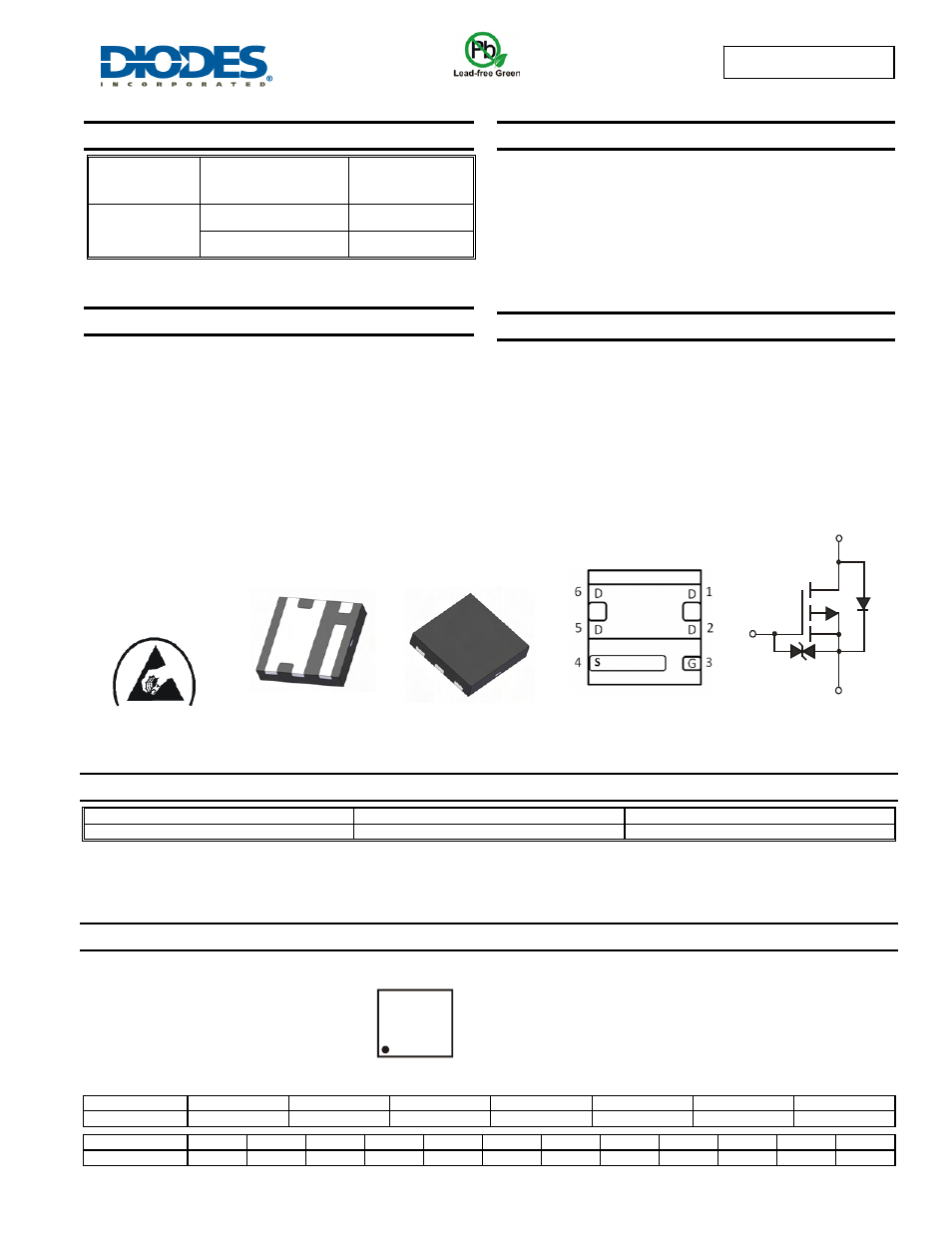

X2-DFN2020-6
Bottom View
Equivalent Circuit
Source
Gate
Protection
Diode
Gate
Drain
ESD PROTECTED
Bottom View
Internal Schematic
Top View
PD
YM
PD = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
Dot Denotes Pin 1
