DMG3413L
Document number: DS35051 Rev. 4 - 2
5 of 6
www.diodes.com
September 2013
© Diodes Incorporated
DMG3413L
NEW PROD
UC
T
0.00001 0.0001 0.001 0.01 0.1 1 10 100 1,000
t1, PULSE DURATION TIMES (sec)

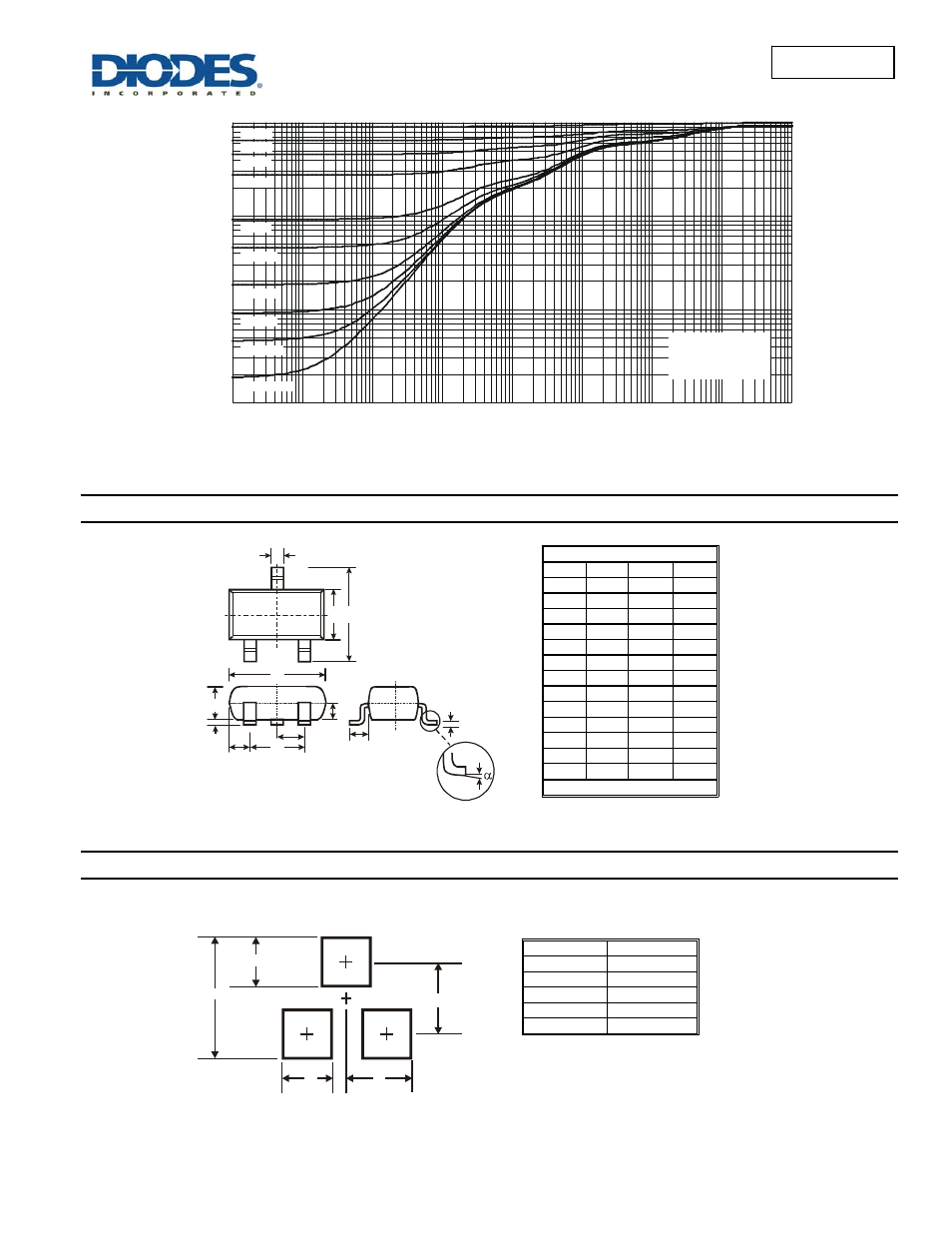

Fig. 13 Transient Thermal Resistance
R (t)=r(t) * R   JA JA
R =176°C/W
Duty Cycle, D=t1/ t2
JA
0.001
0.01
0.1
r(
t),
T
R
A
N
SI
EN
T
T
H
E
R
MA
L
R
ES
IS
T
AN
C
E
1
D = 0.7
D = 0.9
D = 0.5
D = 0.3
D = 0.1
D = 0.05
D = 0.02
D = 0.01
D = 0.005
Single Pulse
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOT23
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
 0° 8° -
All Dimensions in mm
Dimensions Value (in mm)
Z 2.9
X 0.8
Y 0.9
C 2.0
E 1.35
A
M
J L
D
F
B C
H
K
G
K1
X E
Y
C
Z
