DMN10H170SK3
Document number: DS35734 Rev. 4
1 of 6
www.diodes.com
May 2013
© Diodes Incorporated
DMN10H170SK3
N
EW
PR
O
D
U
C
T
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
C
= +25°C
100V
140m
Ω @ V
GS
= 10V 12A
160m Ω @ V
GS
= 4.5V 11A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high-efficiency power management
applications.
Applications
•
DC-DC Converters
• Power management functions
•
Analog Switch
Features
• Low On-Resistance
•
Low Input Capacitance
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: TO252 (DPAK)
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
• Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.33 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
DMN10H170SK3-13 TO252 2,500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

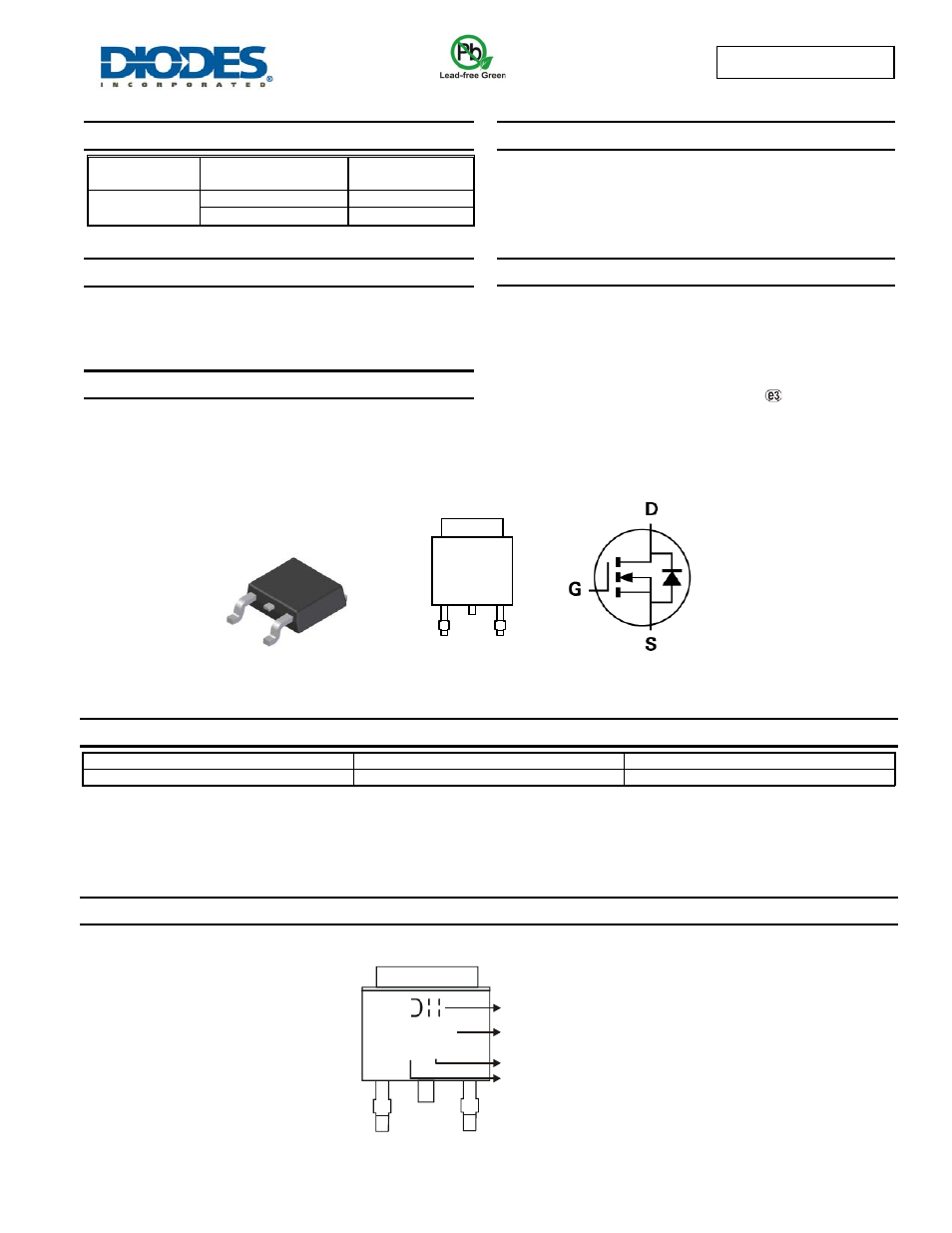

Marking Information
Internal Schematic
YYWW
N170SK
Logo
Part no.
.
Year: “11” = 2011
Xth week: 01 ~ 53
G S
D
D
Top View Top View
TO252
