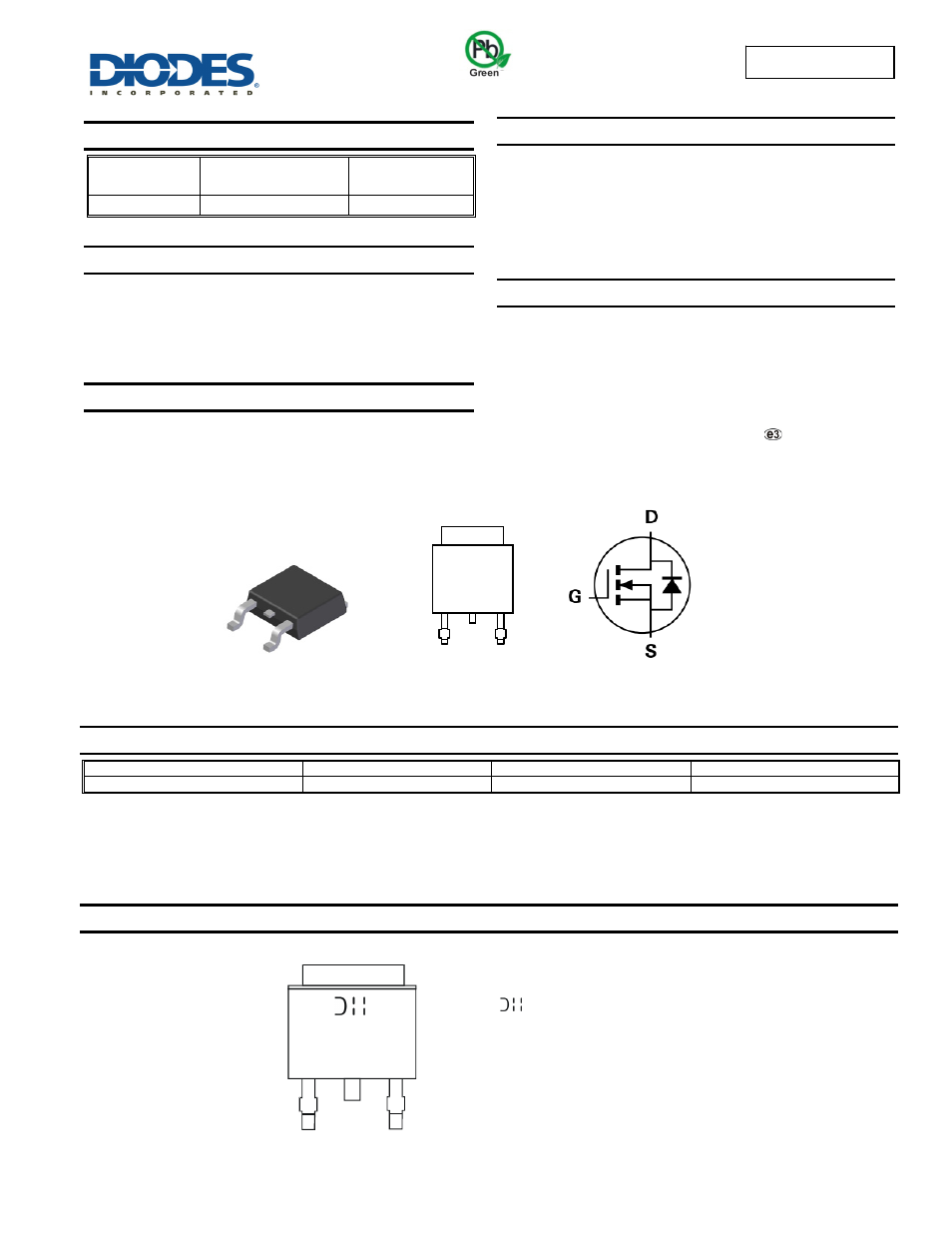

background image

DMJ7N70SK3

Document number: DS36907 Rev. 3 - 2

1 of 6

www.diodes.com

May 2014

© Diodes Incorporated

DMJ7N70SK3

NEW PROD

UC

T

700V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(on) max

I

D

T

C

= +25°C

700V

1.25Ω @ V

GS

= 10V

3.9A


Description

This new generation MOSFET has been designed to minimize the on-
state resistance (R

DS(on)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management
applications.

Applications

 Switching

Features

100% Unclamped Inductive Switch (UIS) test in production

Low Gate Input Resistance

Low Input Capacitance

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

Case: TO252 (DPAK)

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 0.33 grams (approximate)















Ordering Information

(Note 4)

Part Number

Compliance Case

Packaging

DMJ7N70SK3-13

Standard

TO252

2,500/Tape & Reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.


Marking Information













Internal Schematic

G

S

D

D

Top View

Top View

TO252

YYWW

J7N70S

.

=Manufacturer’s Marking
J7N70S = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 13 = 2013)
WW = Week Code (01 to 53)
