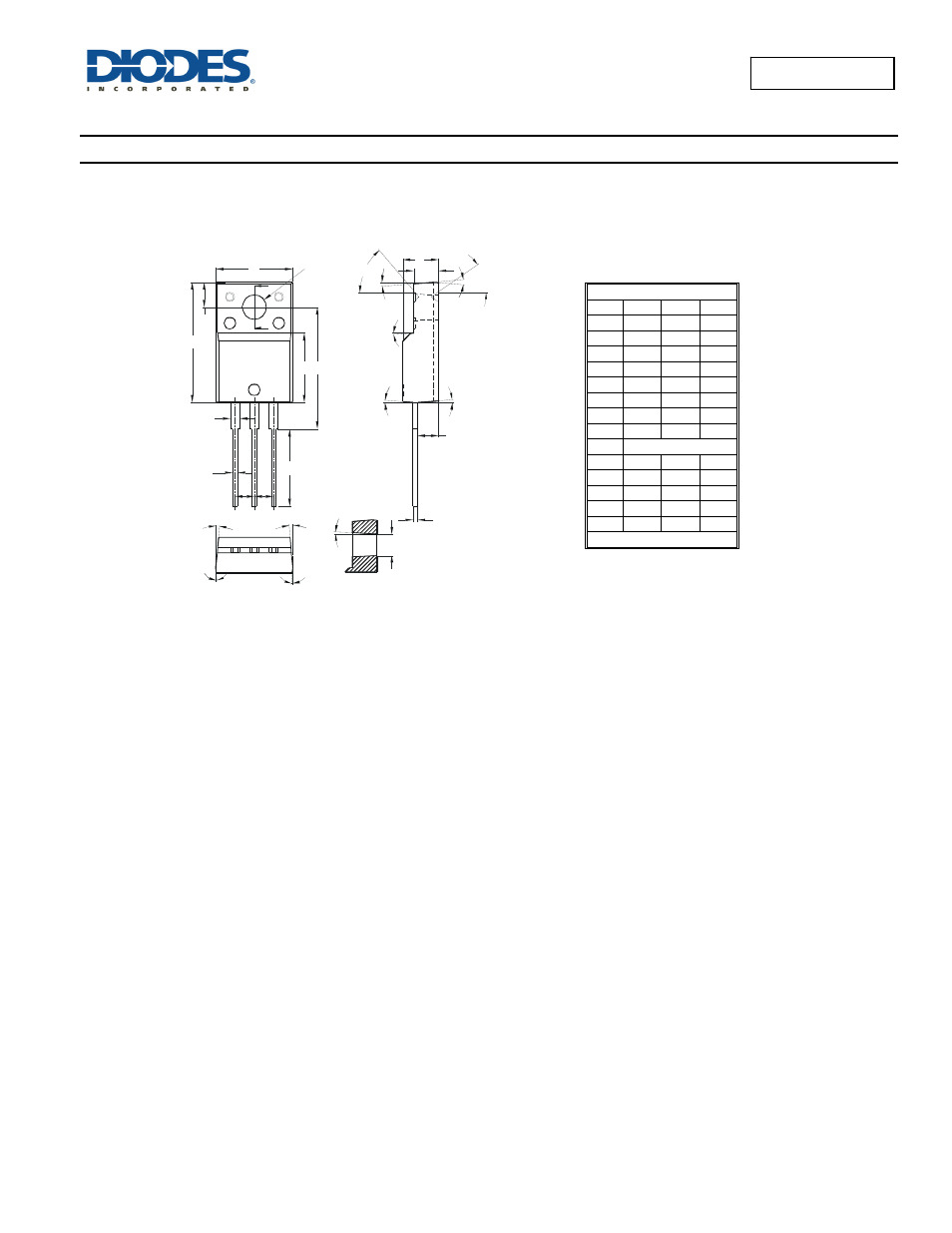

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
ITO-220AB
Dim Min Typ Max
A 4.50 4.70 4.90
A1 3.04 3.24 3.44
A2 2.56 2.76 2.96
b 0.50 0.60 0.75
b1 1.10 1.20 1.35
c 0.50 0.60 0.70
D 15.67 15.87 16.07
D1 8.99 9.19 9.39
e 2.54
E 9.91 10.11 10.31
L 9.45 9.75 10.05
L1 15.80 16.00 16.20
P 2.98 3.18 3.38
Q 3.10 3.30 3.50
All Dimensions in mm
SECTION B-B
3 °
Ø P
E
5 ° 5 °
5 °
5°
Q
D1
D
ØP
b1 3x
L
e
L1
B
A
A1
A2
c
5
0 °
5
°
5° 5
°
5°
3 5
°
5
°
e
B
b 3x
