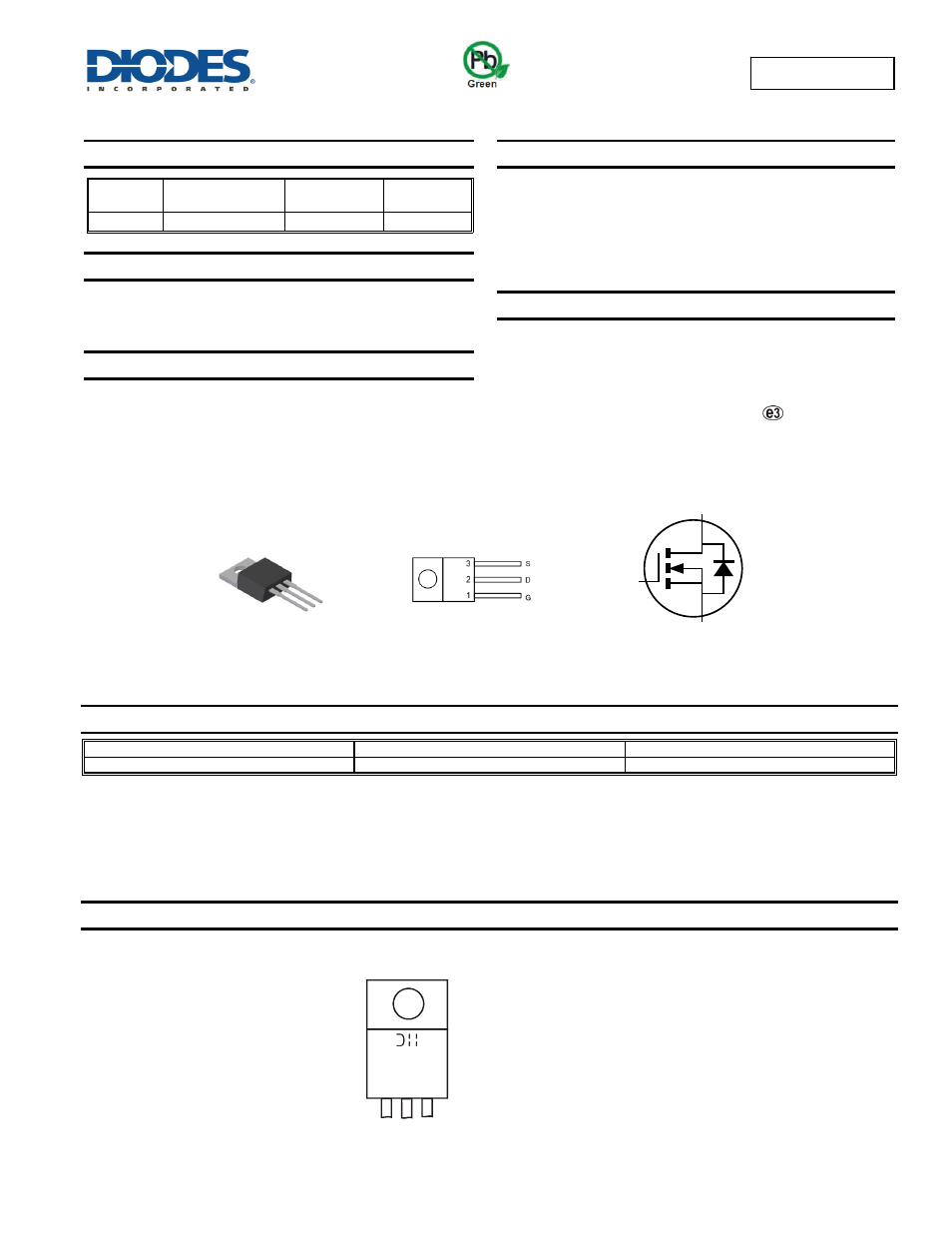

DMG4N65CT

Document number: DS35719 Rev. 4 - 2

1 of 6

www.diodes.com

November 2012

© Diodes Incorporated

DMG4N65CT

ADVAN

CE I

N

F

O

RM

ATI

O


N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

Description

This new generation complementary MOSFET features low on-
resistance and fast switching, making it ideal for high efficiency power
management applications.

Applications

• Motor control
• Backlighting
• DC-DC Converters
• Power management functions

V

(BR)DSS

R

DS(ON)

Package

I

D

T

C

= 25°C

650V

3.0Ω@V

GS

= 10V

TO220-3 4.0

A

Features

Low Input Capacitance

High BVDss rating for power application

Low Input/Output Leakage

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

TO220-3

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish-Matte Tin annealed over Copper Leadframe
Solderable per MIL-STD-202, Method 208

Terminal Connections: See Diagram Below

Weight: 0.008 grams (approximate)

















Ordering Information

(Note 4)

Part Number

Case

Packaging

DMG4N65CT TO220-3 50

pieces/tube

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.




Marking Information














Equivalent Circuit

D

S

G

4N65CT = Product Type Marking Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 12 = 2012)
WW = Week (01 - 53)

Top View

Pin Out Configuration

TO220-3

Top View

4N65CT

YYWW
