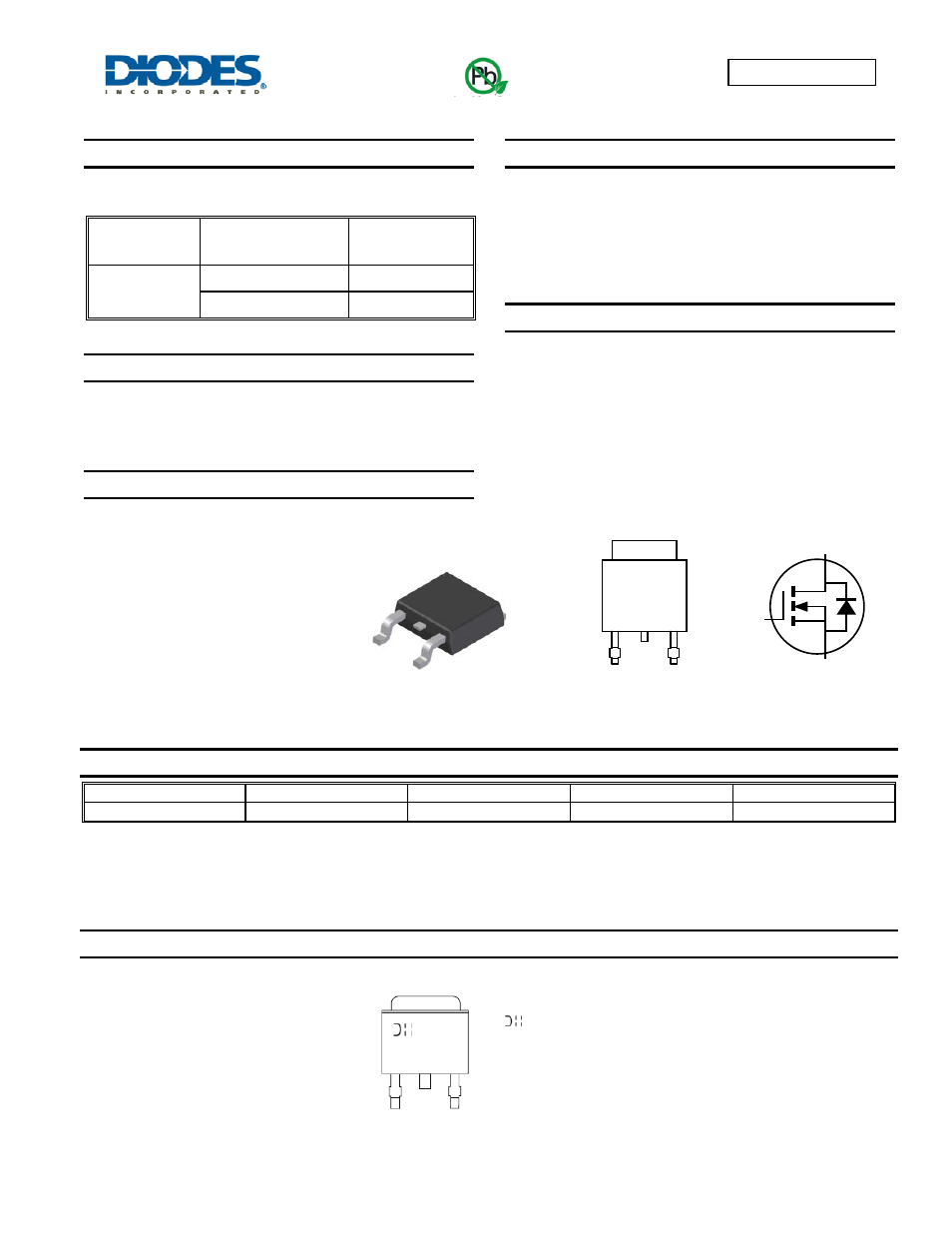

Diodes DMN6068LK3 - Manual

DMN6068LK3
Document Number DS32057 Rev 4 - 2
1 of 8
www.diodes.com
May 2013
© Diodes Incorporated
DMN6068LK3
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25
°C
60V
68m
Ω @ V
GS
= 10V 8.5A
100m Ω @ V
GS = 4.5V 7.0A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
• Motor Control
• Transformer Driving Switch
• DC-DC Converters
• Power Management Functions
• Uninterrupted Power Supply
Features and Benefits
• 100% Unclamped Inductive Switch (UIS) test in production
• Low on-resistance
• Fast switching speed
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: TO252
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See Diagram
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
DMN6068LK3-13 N6068L 13 16 2,500
Note: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
TOP VIEW PIN OUT -TOP VIEW
D
S
G
Equivalent Circuit
G S
D
D
= Manufacturer’s Marking
N6068L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)
YYWW
N6068L
TO252-3L
Green
