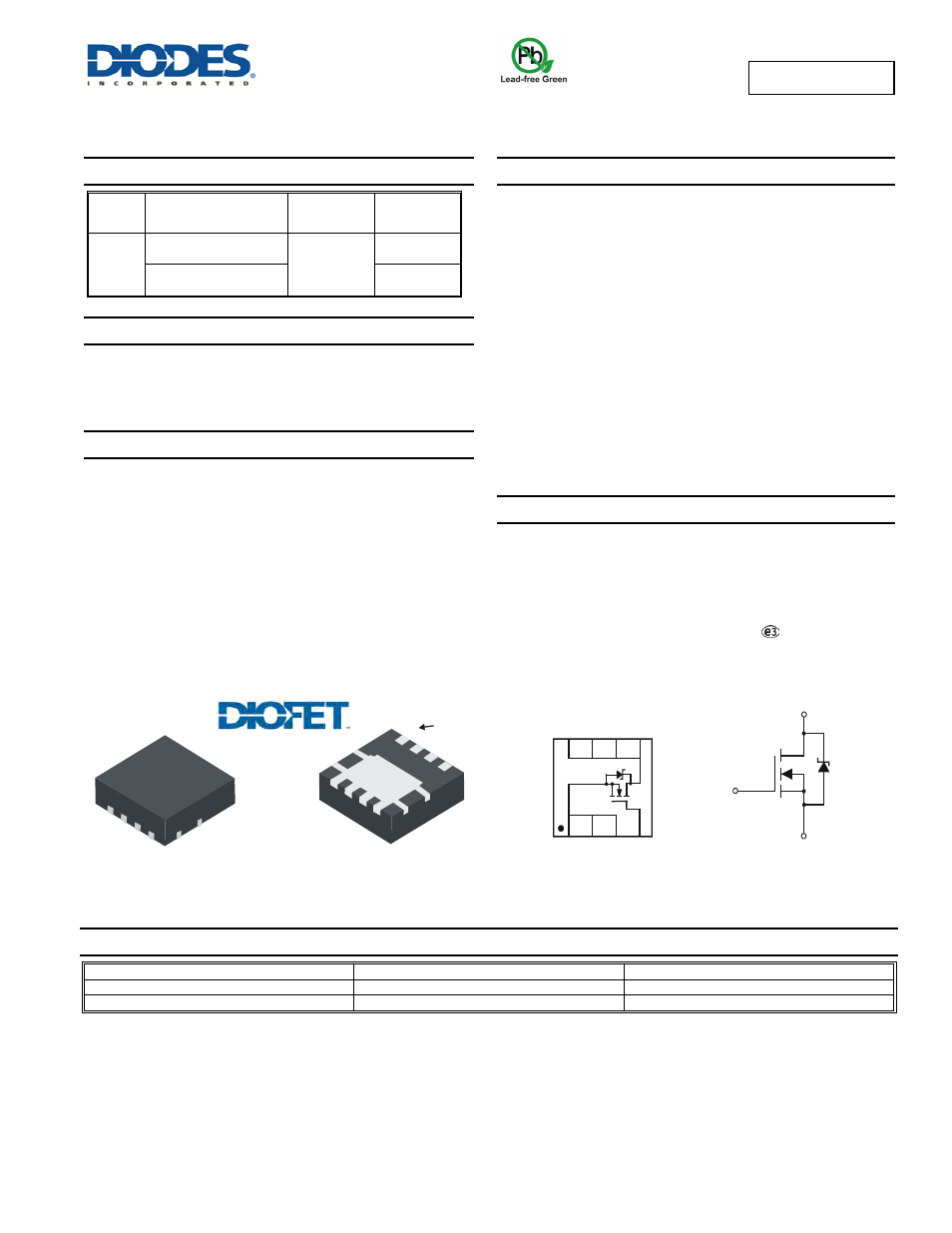

DMS3012SFG
30V N-CHANNEL ENHANCEMENT MODE MOSFET WITH SCHOTTKY DIODE
POWERDI
®
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
A
= +25°C
30V
10m
Ω @ V
GS
= 10V
POWERDI
3333-8
12A
15m
Ω @ V
GS
= 4.5V
9.5A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
• Backlighting
•
Power Management Functions
•
DC-DC Converters
Features
•
DIOFET utilizes a unique patented process to monolithically
integrate a MOSFET and a Schottky in a single die to deliver:
Low R
DS(ON)
– minimize conduction losses
Low
V
SD
– reducing the losses due to body diode conduction
Low
Q
rr
– lower Q
rr
of the integrated Schottky reduces body
diode switching losses
Low gate capacitance (Q
g
/Q
gs
) ratio – reduces risk of shoot
through or cross conduction currents at high frequencies
•
Small form factor thermally efficient package enables higher
density end products
•
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
•
100% UIS (Avalanche) rated
•
100% Rg tested
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
POWERDI3333-8
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminal
Connections
Indicator: See diagram
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.072 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMS3012SFG-7
POWERDI3333-8
2000/Tape & Reel
DMS3012SFG-13
POWERDI3333-8
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Bottom View
1
2
3
4
8
7
6
5
Top View
Pin Configuration
Internal Schematic
Source
Gate
Drain
S
S
S
G
D
D
D
D
Pin 1
Top View
