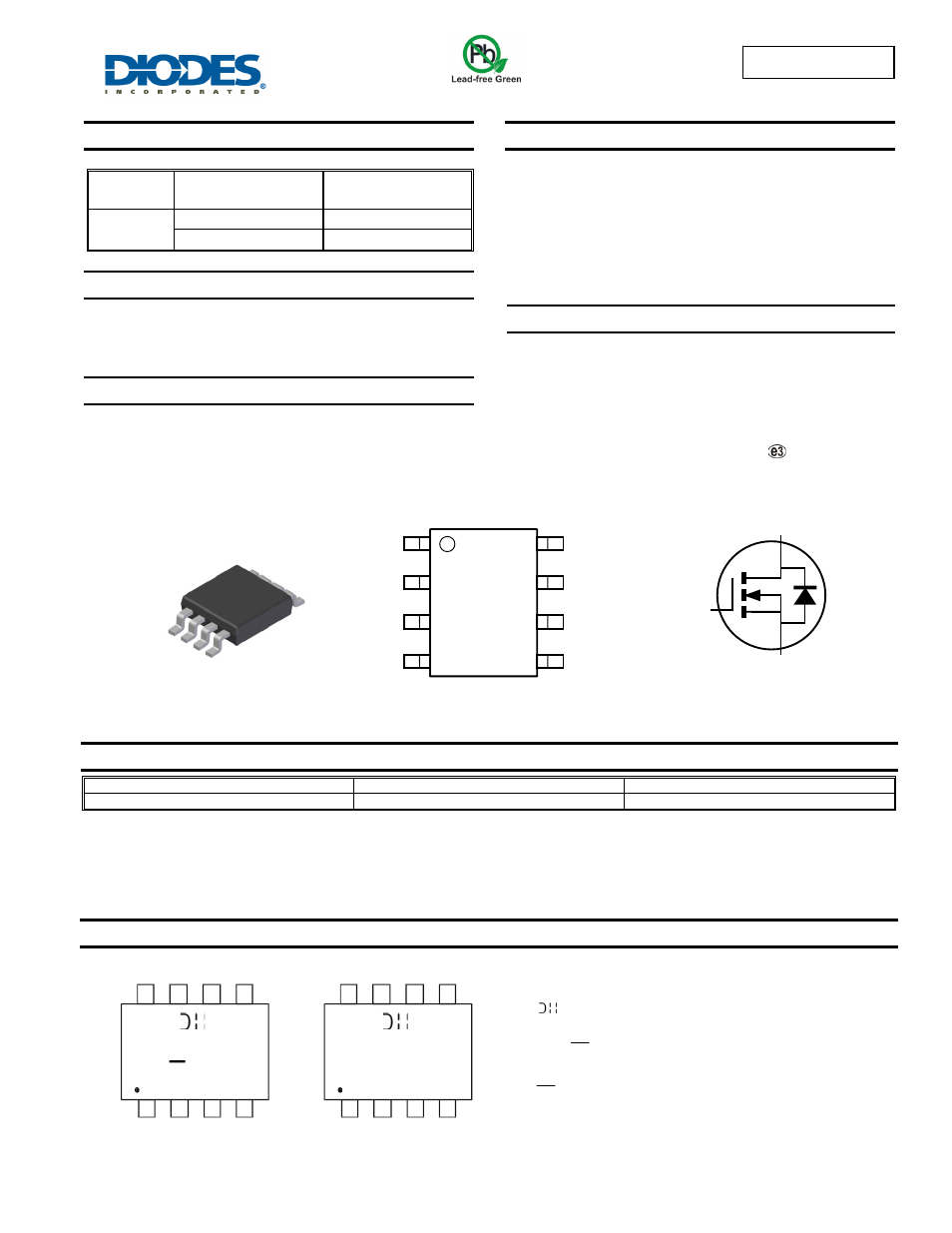

Dmn4800lss new prod uc t, Product summary, Description
DMN4800LSS
Document number: DS31736 Rev. 7 - 2
1 of 6
October 2013
© Diodes Incorporated
DMN4800LSS
NEW PROD
UC
T
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
Backlighting
Power Management Functions
DC-DC
Converters
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
30V
14mΩ @ V
GS
= 10V
8.6A
20mΩ @ V
GS
= 4.5V
7.1A
Features
Low
On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.072g (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN4800LSS-13
SO-8
2500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
SO-8
Top View
Internal Schematic
D
S
G
D
S
D
D
D
S
S
G
Equivalent circuit
Chengdu A/T Site
Shanghai A/T Site
= Manufacturer’s Marking
N4800LS = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)
1
4
8
5
N4800LS
WW
YY
1
4
8
5
N4800LS
WW
YY
