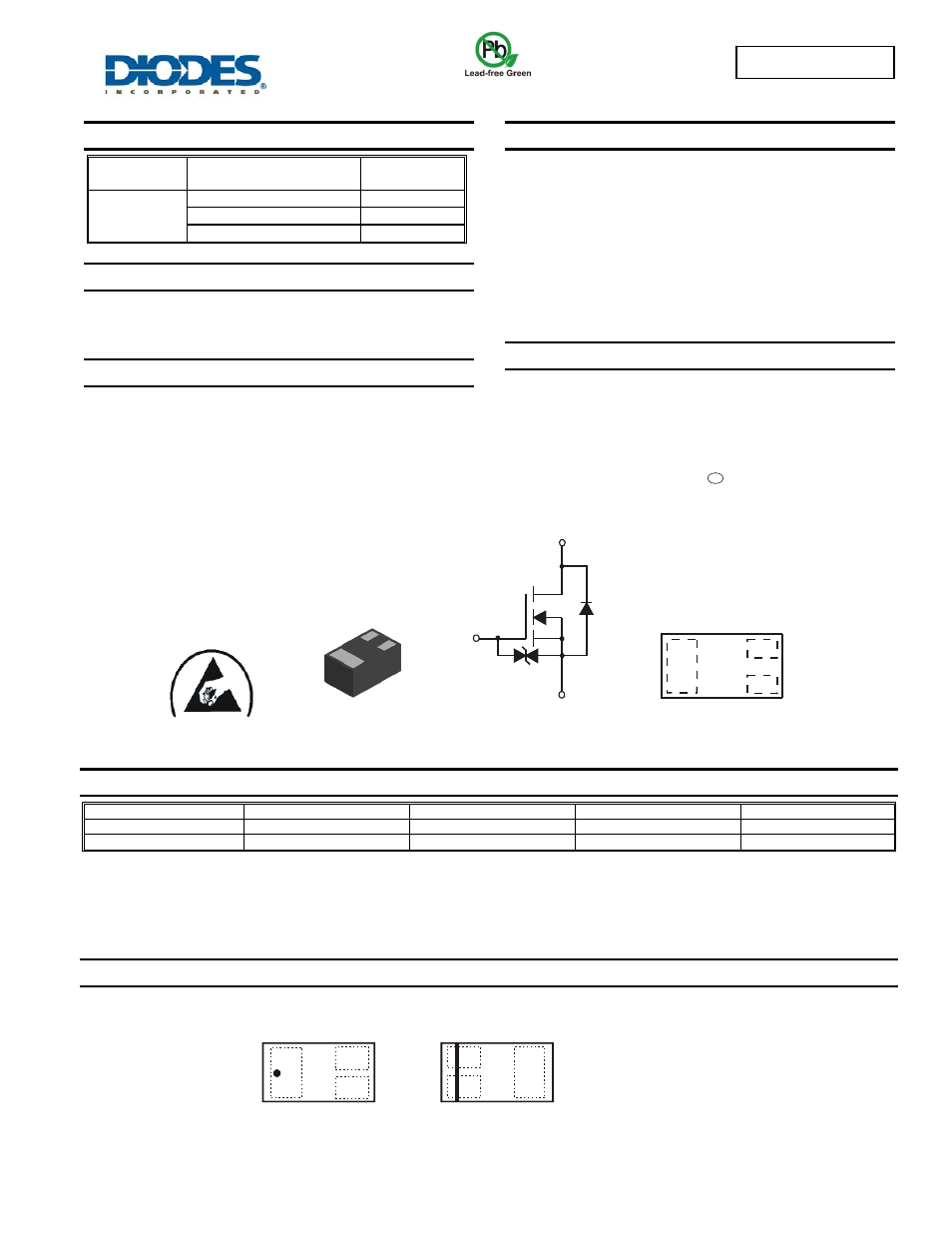

DMN32D2LFB4

Document number: DS31124 Rev. 7 - 2

1 of 5

www.diodes.com

June 2013

© Diodes Incorporated

DMN32D2LFB4

N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(on)

max

I

D

max

T

A

= +25

C

30V

1.2

 @ V

GS

= 4V

415mA

1.5

 @ V

GS

= 2.5V

370mA

2.2

 @ V

GS

= 1.8V

300mA

Description

This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.

Applications

 Backlighting

Power Management Functions

 DC-DC

Converters

Features

 Low

On-Resistance

Very Low Gate Threshold Voltage, 1.2V max

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

Ultra-Small Surface Mount Package

 ESD

Protected

Gate

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case:

X2-DFN1006-3

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208

Weight: 0.001 grams (approximate)
















Ordering Information

(Note 4)

Part Number

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

DMN32D2LFB4-7 DV

7

8

3000

DMN32D2LFB4-7B DV

7

8

10,000

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html


Marking Information












X2-DFN1006-3

Bottom View

Equivalent Circuit

Top View

Pin-Out

Source

Body
Diode

Gate
Protection
Diode

Gate

Drain

D

S

G

DV = Product Type Marking Code

ESD PROTECTED

DV

DV

DMN32D2LFB4-7

DMN32D2LFB4-7B

Top View

Bar Denotes Gate

and Source Side

Top View

Dot Denotes

Drain Side

e4
