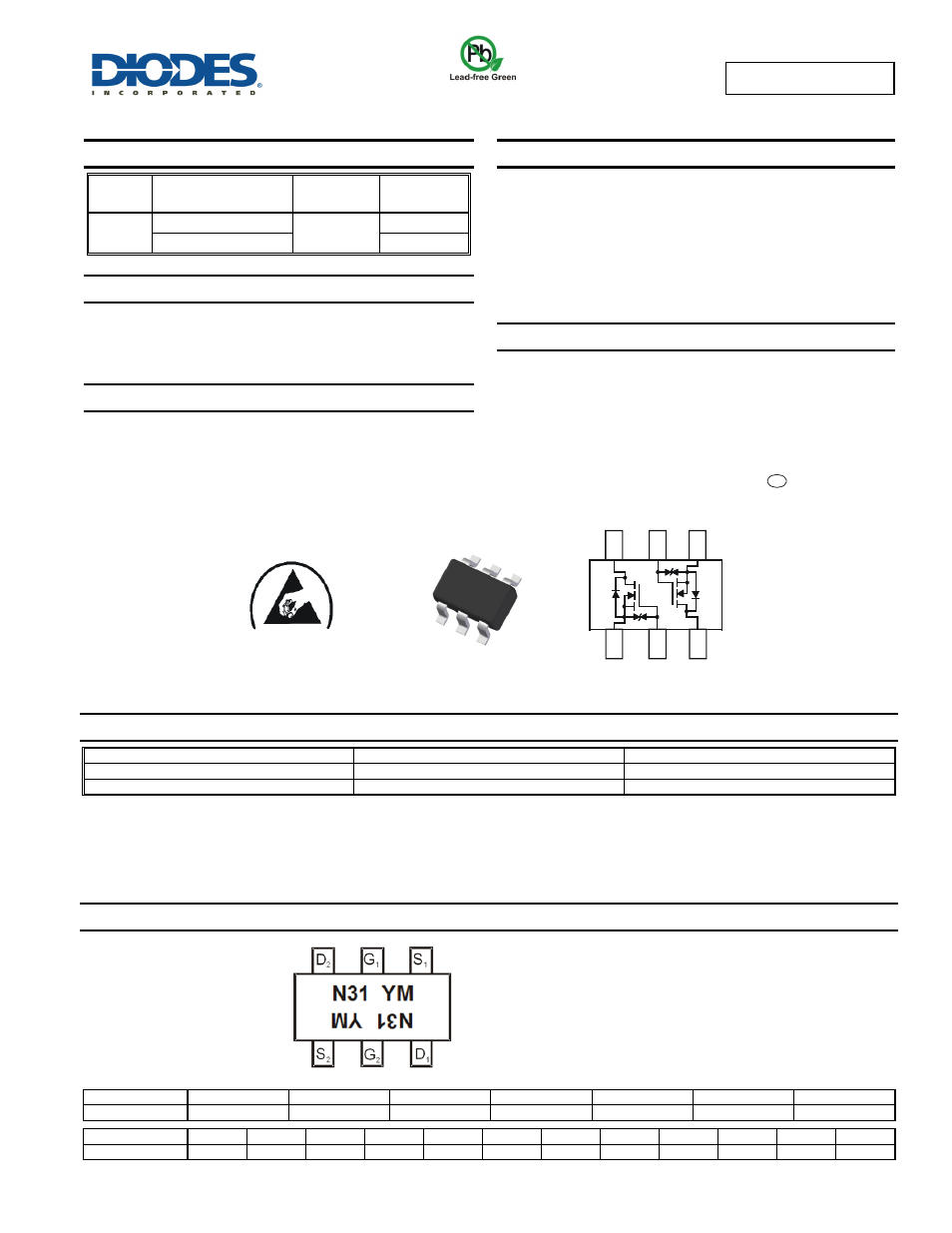

DMN3190LDW
Document number: DS36192 Rev. 4 - 2
1 of 5
September 2013
© Diodes Incorporated
DMN3190LDW
NEW PROD
UC
T
ADVAN
CE I
N
F
O
RM
ATI
O
N
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
(MAX)
Package
I
D
(MAX)
T
A
= +25°C
30V
190mΩ @ V
GS
= 10V
SOT363
1A
335mΩ @ V
GS
= 4.5V
0.75A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
Motor
Control
Power Management Functions
Load
Switch
Features and Benefits
Low
On-Resistance
Low Input Capacitance
Fast Switching Speed
ESD
Protected
Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT363
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal
Connections
Indicator: See diagram
Terminals:
Finish
Matte Tin annealed over Alloy42 leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN3190LDW-7
SOT363
3000K/Tape & Reel
DMN3190LDW-13 SOT363 10000K/Tape
&
Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
N31 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
ESD PROTECTED
Top View
S
2
D
2
D
1
S
1
G
2
G
1
Q
1
Q
2
Top View
Internal Schematic
e3
