DMN3033LDM
Document number: DS31345 Rev. 4 - 2
4 of 5
July 2009
© Diodes Incorporated
DMN3033LDM
Ordering Information
(Note 7)
Part Number
Case
Packaging
DMN3033LDM-7
SOT-26
3000/Tape & Reel
Notes:
7. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2007
2008
2009
2010
2011
2012
2013 2014 2015
Code U V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D

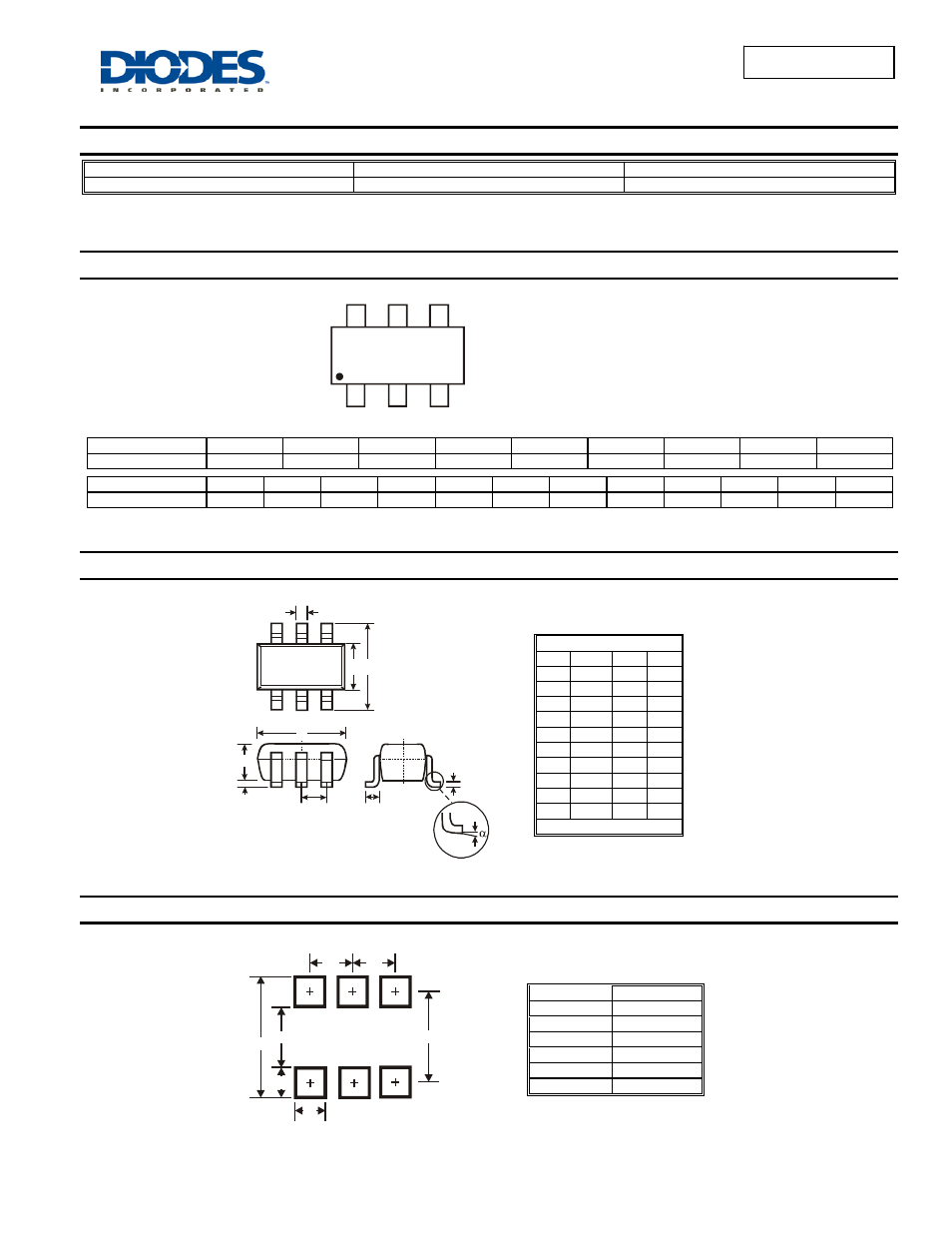

Package Outline Dimensions
Suggested Pad Layout
SOT-26
Dim
Min Max
Typ
A
0.35 0.50 0.38
B
1.50 1.70 1.60
C
2.70 3.00 2.80
D
⎯
⎯ 0.95
H
2.90 3.10 3.00
J
0.013 0.10 0.05
K
1.00 1.30 1.10
L
0.35 0.55 0.40
M
0.10 0.20 0.15
α
0° 8°
⎯
All Dimensions in mm
Dimensions
Value (in mm)
Z
3.20
G
1.60
X
0.55
Y
0.80
C1
2.40
C2
0.95
NA5 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: U = 2007)
M = Month (ex: 9 = September)
NA5
YM
A
M
J
L
D
B C
H
K
X
Z
Y
C1
C2
C2
G
