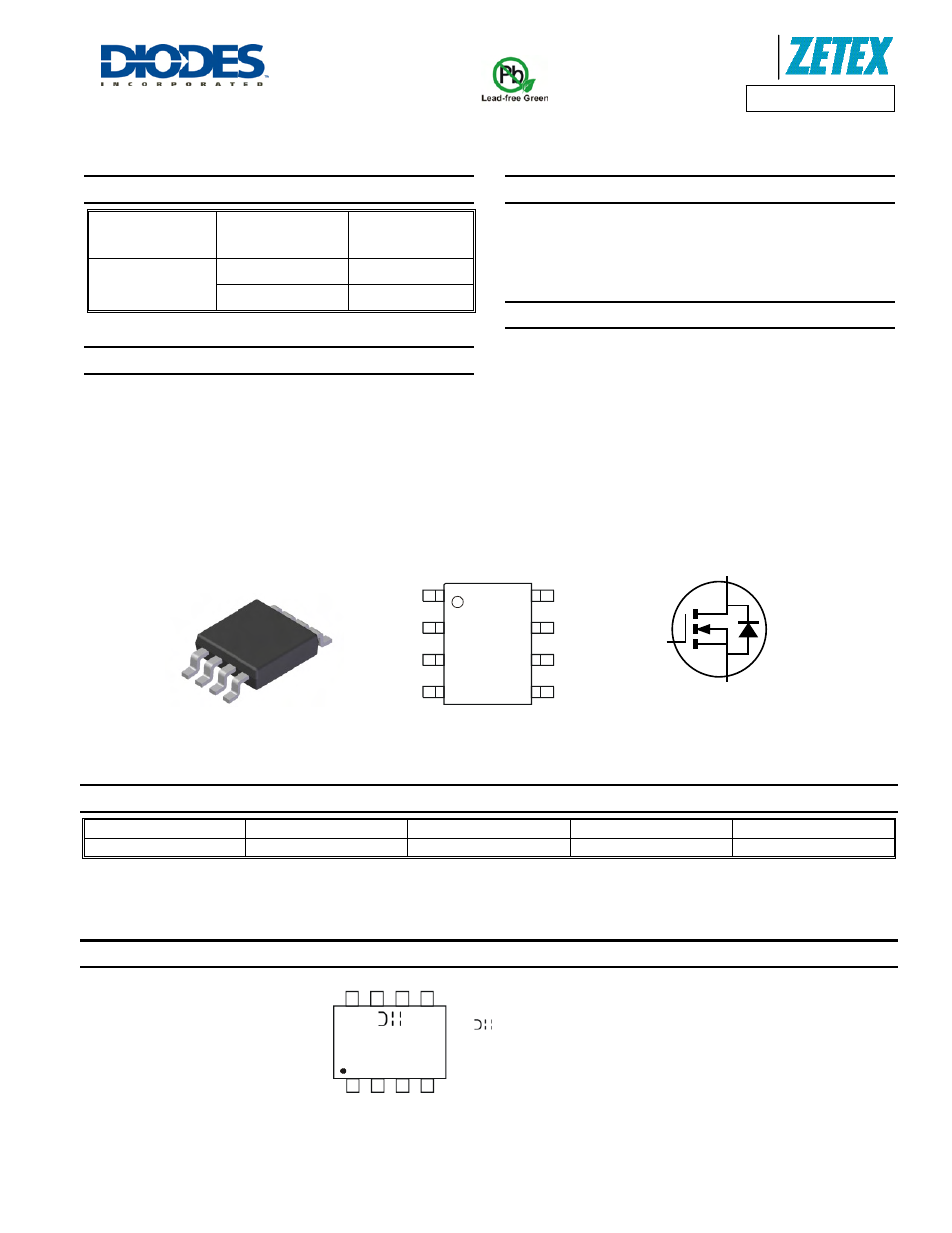

DMN3024LSS
Document Revision: 3
1 of 8
July 2009
© Diodes Incorporated
A Product Line of
Diodes Incorporated
DMN3024LSS
30V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25
°C
30V
24m
Ω @ V
GS
= 10V
8.5A
36m
Ω @ V
GS
= 4.5V
6.9A
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
•
Motor control
•
Backlighting
•
DC-DC Converters
•
Power management functions
Features and Benefits
•
Low on-resistance
•
Fast switching speed
•
“Green” component and RoHS compliant (Note 1)
Mechanical Data
• Case:
SO-8
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals Connections: See Diagram
•
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.074 grams (approximate)
Ordering Information
(Note 1)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DMN3024LSS-13 N3024LS
13
12
2,500
Note:
1. Diodes, Inc. defines “Green” products as those which are Eu RoHS compliant and contain no halogens or antimony compounds; further information
about Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information
N3024LS = Product Type Marking Code
= Manufacturer’s Marking
YY WW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)
TOP VIEW
TOP VIEW
D
S
G
Equivalent Circuit
D
S
S
G
D
D
D
S
N3024LS
YY WW
