DMN3007LSS
Document number: DS31460 Rev. 5 - 2
1 of 5
April 2010
© Diodes Incorporated
DMN3007LSS
SINGLE N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
• 7mΩ @ V
GS
= 10V
• 10mΩ @ V
GS
= 4.5V
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Lead Free By Design/RoHS Compliant (Note 2)
•
"Green" Device (Note 4)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SO-8
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See Diagram
•
Terminals: Finish - Matte Tin annealed over Copper lead
frame. Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 4
•
Ordering Information: See Page 4
•
Weight: 0.072g (approximate)
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Units
Drain-Source Voltage
V
DSS
30 V
Gate-Source Voltage
V
GSS
±20
V
Drain Current (Note 1) Steady
State
T
A
= 25°C
T
A
= 70°C
I
D
16
13
A
Pulsed Drain Current (Note 3)
I
DM
64 A
Thermal Characteristics
Characteristic Symbol
Value
Unit
Total Power Dissipation (Note 1)
P
D
2.5 W
Thermal Resistance, Junction to Ambient
R
θJA
50 °C/W
Operating and Storage Temperature Range
T
J,
T
STG
-55 to +150
°C
Notes:
1. Device mounted on 2 oz. Copper pads on FR-4 PCB, with R
θJA
= 50°C
2. No purposefully added lead.
3. Pulse
width
≤10μS, Duty Cycle ≤1%.
4. Diodes Inc.'s "Green" policy can be found on our website at

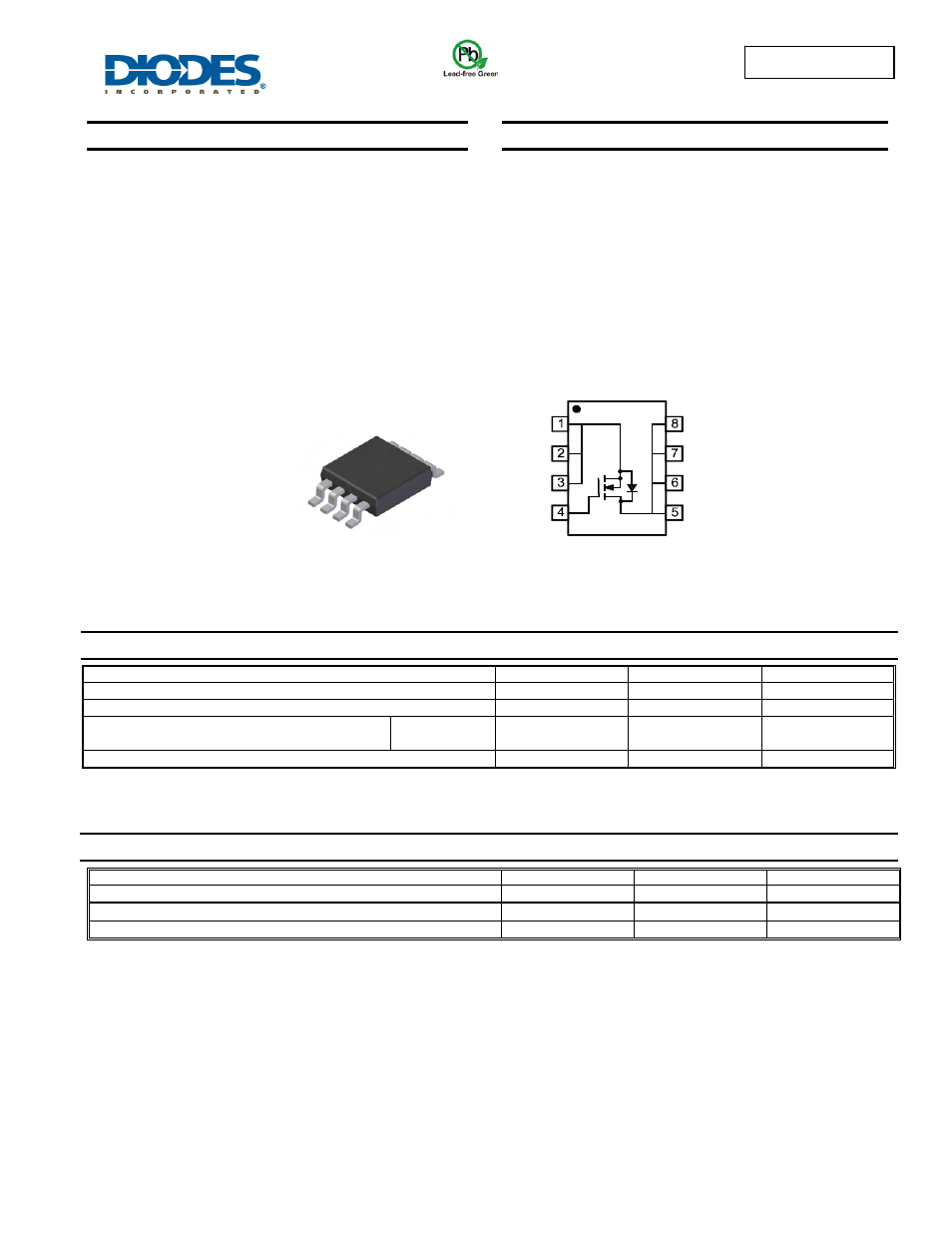

SO-8
Top View
Top View
Internal Schematic
S
D
D
G
D
D
S
S
