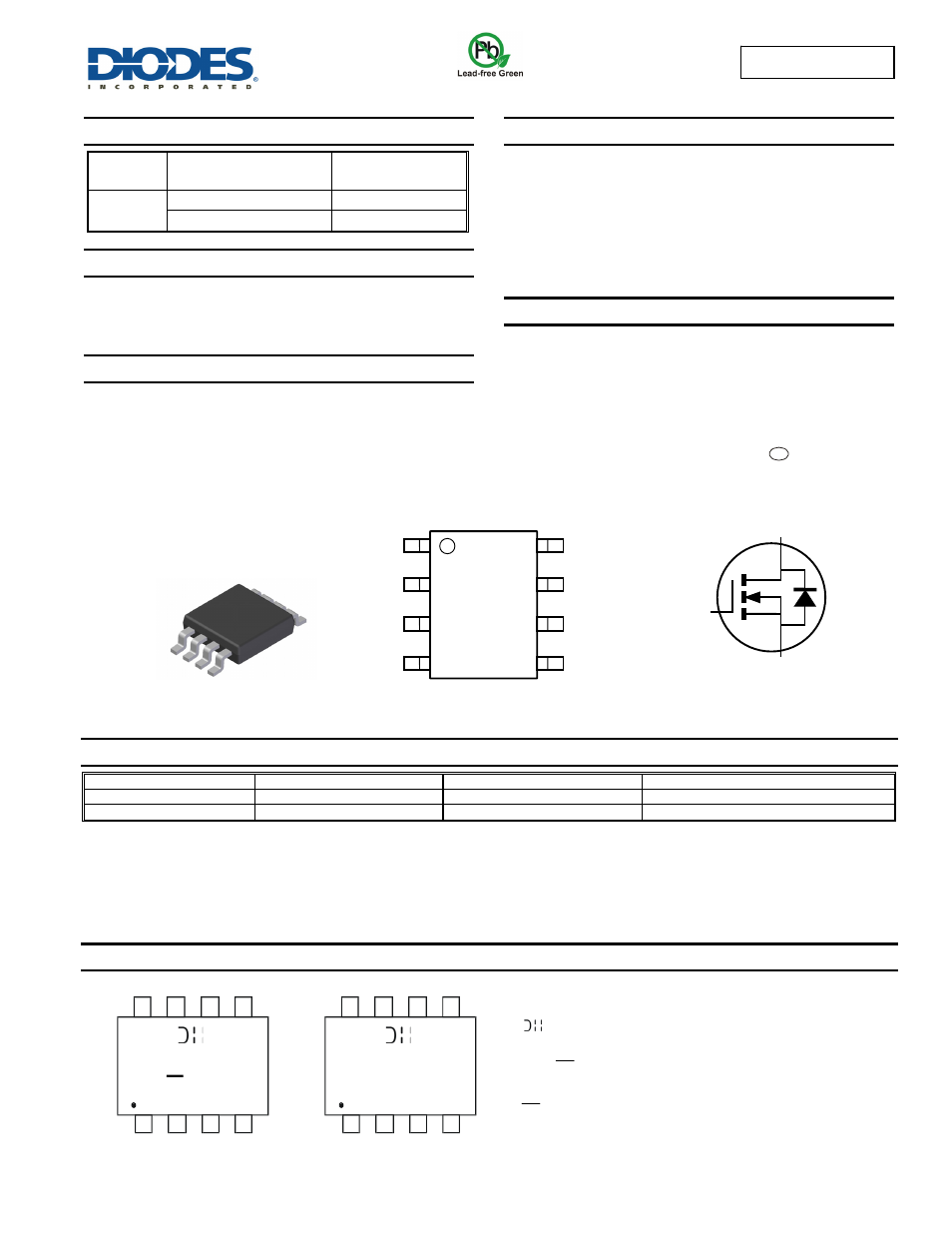

Dmg4496sss new prod uc t, Product summary, Description

DMG4496SSS

Document number: DS32048 Rev. 5 - 2

1 of 6

www.diodes.com

September 2013

DMG4496SSS

NEW PROD

N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

DS(ON)

max

= +25°C

30V

21.5mΩ @ V

= 10V

10A

29mΩ @ V

= 4.5V

Description

This MOSFET has been designed to minimize the on-state resistance
(R

DS(ON)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Applications

 Backlighting


Power Management Functions

 DC-DC

Converters

Features and Benefits

 Low

On-Resistance



Low Input Capacitance



Fast Switching Speed



Low Input/Output Leakage



Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)



Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case:

SO-8



Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0



Moisture Sensitivity: Level 1 per J-STD-020

 Terminal

Connections

Indicator: See diagram

 Terminals:

Finish

 Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208



Weight: 0.074 grams (approximate)

Ordering Information

(Note 4 & 5)

Part Number

Compliance Case

Packaging

DMG4496SSS-13

Standard

SO-8

2500 / Tape & Reel

DMG4496SSSQ-13

Automotive

SO-8

2500 / Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SO-8

Top View

Internal Schematic

Top View

Equivalent circuit

Chengdu A/T Site

Shanghai A/T Site

= Manufacturer’s Marking
G4496SS = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)

G4496SS
