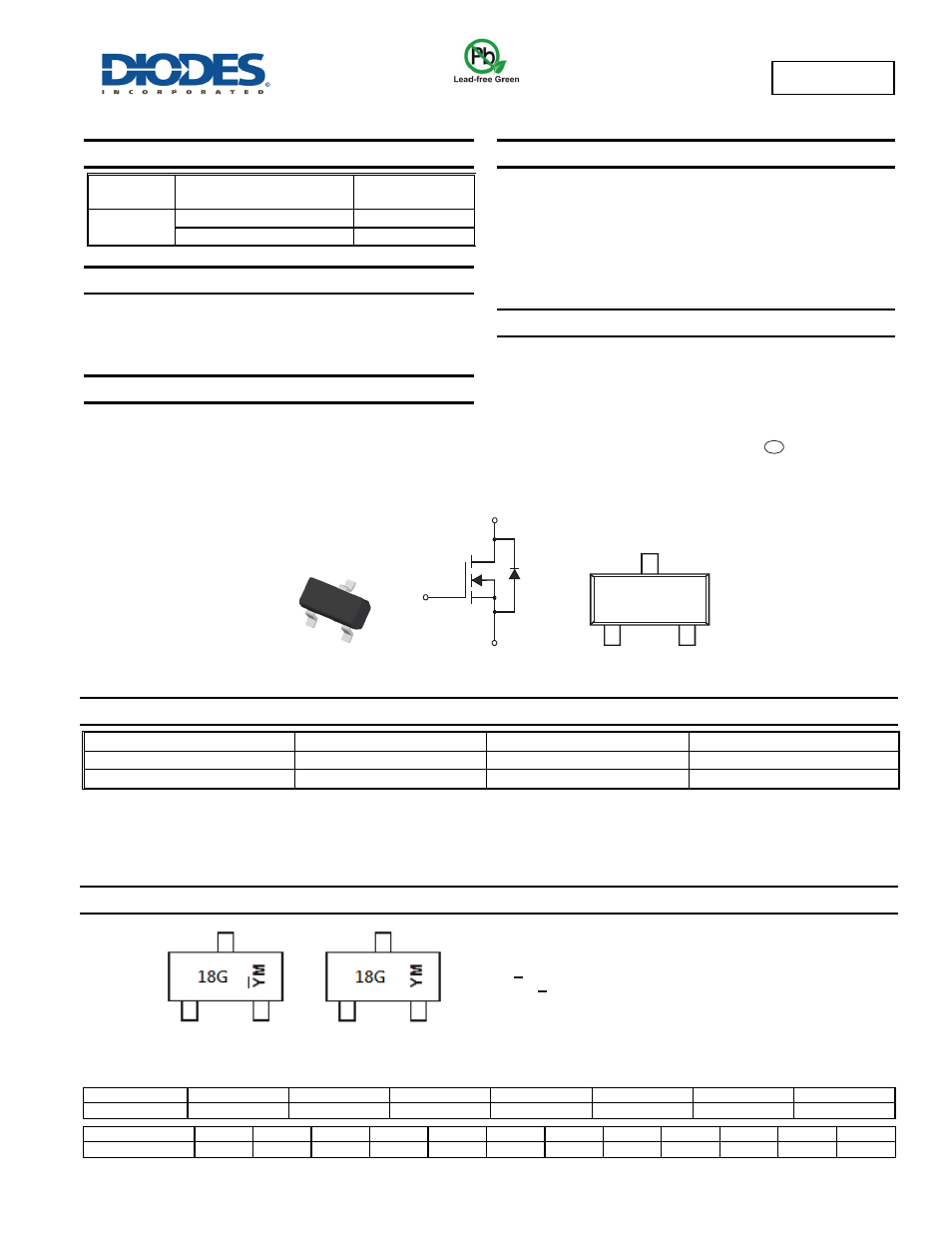

DMG3418L
Document number: DS36366 Rev. 3 - 2
1 of 5
March 2014
© Diodes Incorporated
DMG3418L
ADVANCED INFORMATION
ADVANCED INFORMATION
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON) max
I
D
T
A
= +25°C
30V
60mΩ @V
GS
= 10V
4 A
70mΩ @V
GS
= 4.5V
3 A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
• Backlighting
•
Power Management Functions
• DC-DC
Converters
• Motor
Control
Features
• Low
On-Resistance
•
Low Input Capacitance
•
Fast Switching Speed
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish — Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Terminals Connections: See Diagram Below
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance Case
Packaging
DMG3418L-7
Standard
SOT23
3000/Tape & Reel
DMG3418L-13
Standard
SOT23
10000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2012
2013
2014
2015
2016
2017
2018
Code
Z A B C D E F
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
e3
D
G
S
Top View
Internal Schematic
Top View
18G = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
= Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or = Year (ex: A = 2013)
M = Month (ex: 9 = September)
Source
Gate
Drain
Chengdu A/T Site
Shanghai A/T Site
YM
Y
