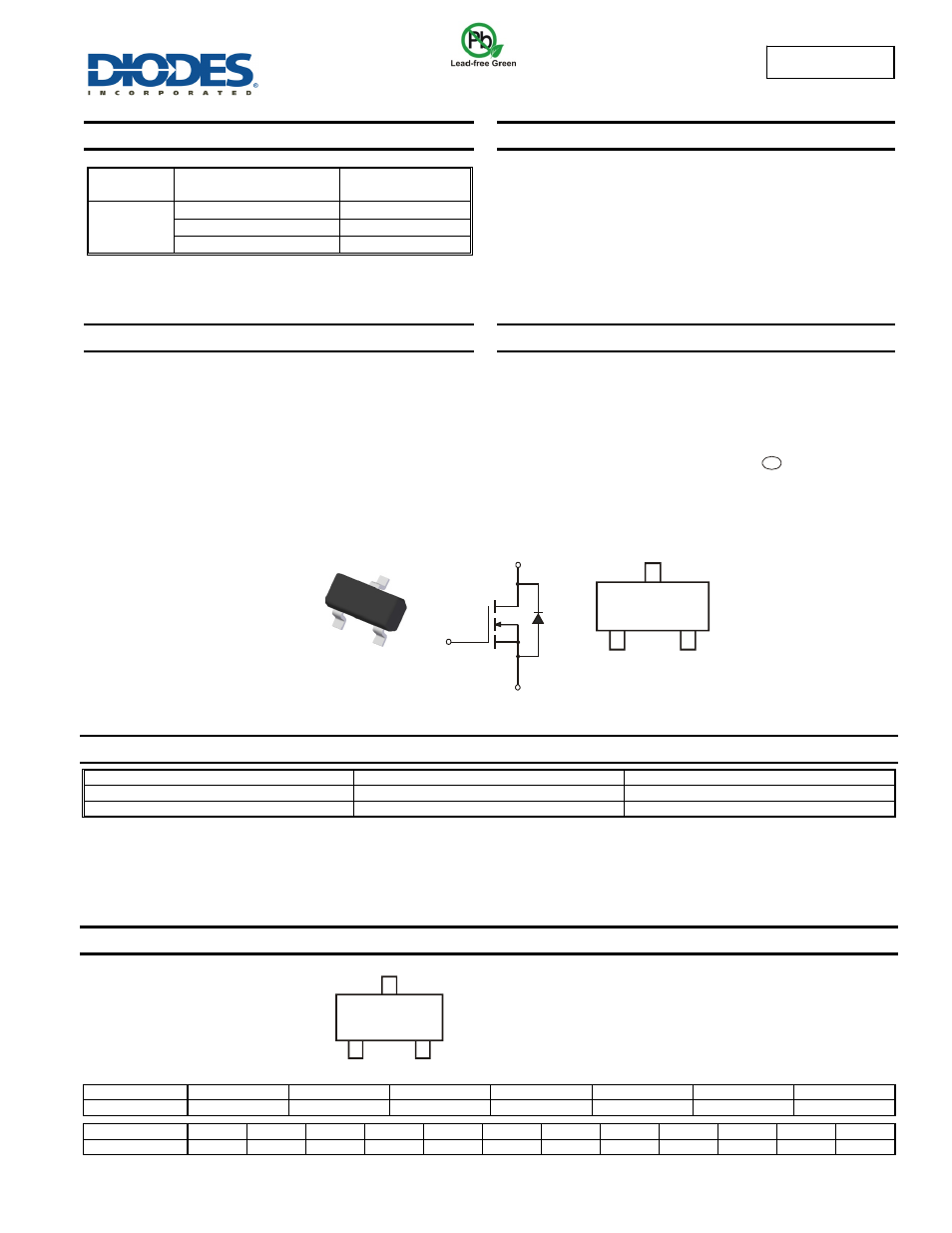

DMG3402L
Document number: DS36077 Rev. 2 - 2
1 of 5
December 2013
© Diodes Incorporated
DMG3402L
N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Product Summary
Applications
DC-DC
Converters
Power Management Functions
Battery Operated Systems and Solid-State Relays
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
30V
52mΩ @ V
GS
= 10V
4A
65mΩ @ V
GS
= 4.5V
3A
85mΩ @ V
GS
= 2.5V
2A
Features
Low On-Resistance:
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMG3402L-7
SOT23
3000/Tape & Reel
DMG3402L-13
SOT23
10000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2012
2013
2014
2015
2016
2017
2018
Code
Z A B C D E F
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT23
TOP VIEW
Source
EQUIVALENT CIRCUIT
Gate
Drain
D
G
S
Pin Configuration
N32 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
e3
N32
YM
