DMN2990UFA
Document number: DS35765 Rev. 3 - 2
1 of 6
www.diodes.com
June 2013
© Diodes Incorporated

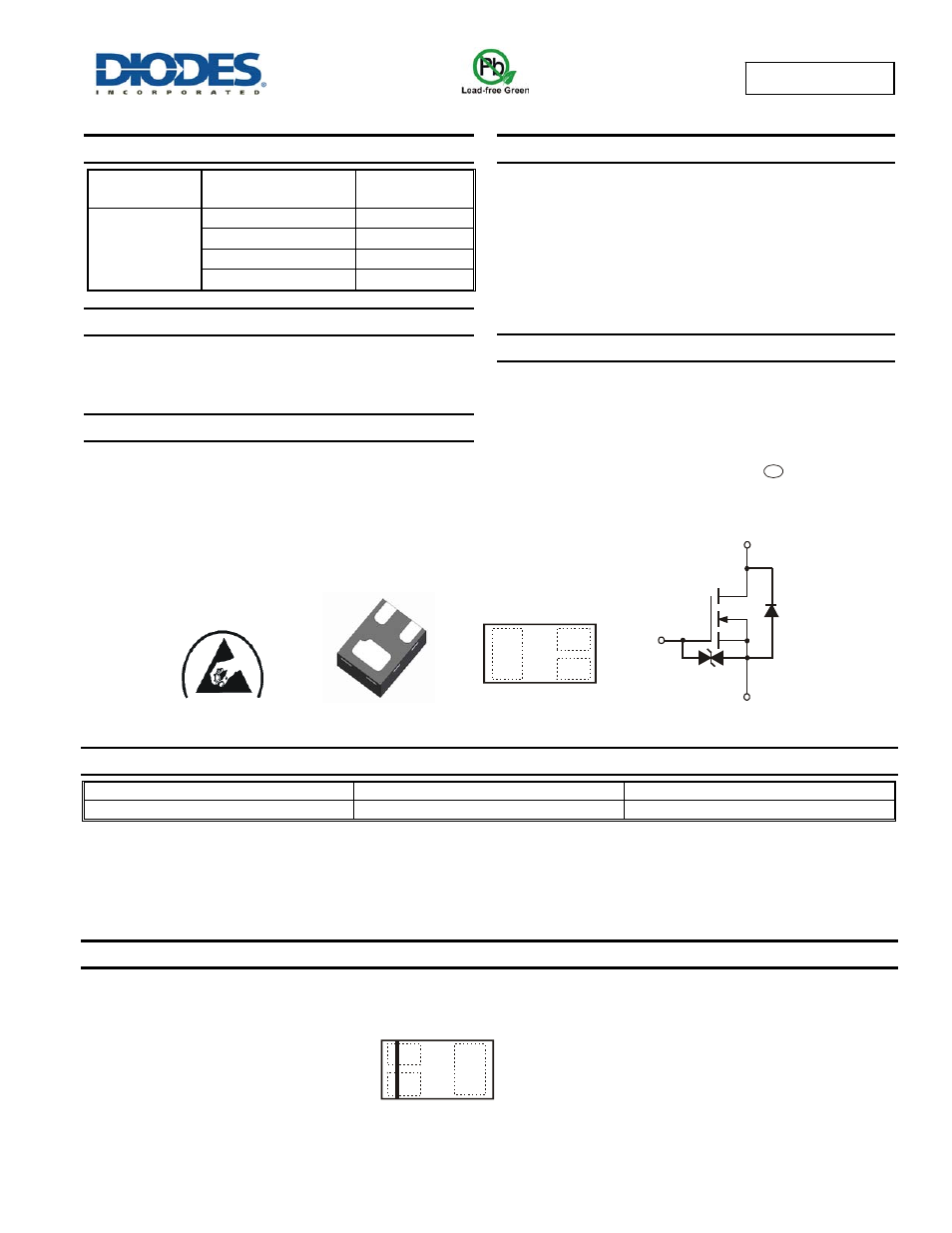

DMN2990UFA
NEW PROD
UC
T
20V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
20V
0.99 Ω @ V
GS = 4.5V 510mA
1.2 Ω @ V
GS
= 2.5V 470mA
1.8 Ω @ V
GS
= 1.8V 380mA
2.4 Ω @ V
GS
= 1.5V 330mA
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications

General Purpose Interfacing Switch
 Power Management Functions
 Analog
Switch
Features and Benefits

Low Package Profile, 0.4mm Maximum Package height
 0.48mm 2 package footprint, 16 times smaller than SOT23
 Low
On-Resistance

Very low Gate Threshold Voltage, 1.0V max
 ESD Protected Gate

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
 Case:
X2-DFN0806-3

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – NiPdAu over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
DMN2990UFA-7B X2-DFN0806-3 10K/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Source
Body
Diode
Gate
Protection
Diode
Gate
Drain
NW = Product Type Marking Code
DMN2990UFA-7B
Top View
Bar Denotes Gate
and Source Side
Bottom View Equivalent Circuit
Top View
Package Pin Configuration
D
S
G
ESD PROTECTED
NW
e4
