DMN2300UFB
20V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
max
T
A
= 25
°C
(Note 4)
20V
175m
Ω @ V
GS
= 4.5V
1.30A
240m
Ω @ V
GS
= 2.5V
1.11A
360m
Ω @ V
GS
= 1.8V
0.91A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
• Load
switch
Features and Benefits
•
Footprint of just 0.6mm
2
– thirteen times smaller than SOT23
•
0.5mm profile – ideal for low profile applications
•
On resistance <200m
Ω @ V
GS
= 4.5V
•
Low Gate Threshold Voltage
•
Fast Switching Speed
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
ESD Protected Gate 2KV
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN1006-3
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 3)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DMN2300UFB-7 NI
7
8
3,000
DMN2300UFB-7B NI
7
8
10,000
Notes:
1. No purposefully added lead
2. Diodes Inc's "Green" policy can be found on our w
3. For packaging details, go to our website at

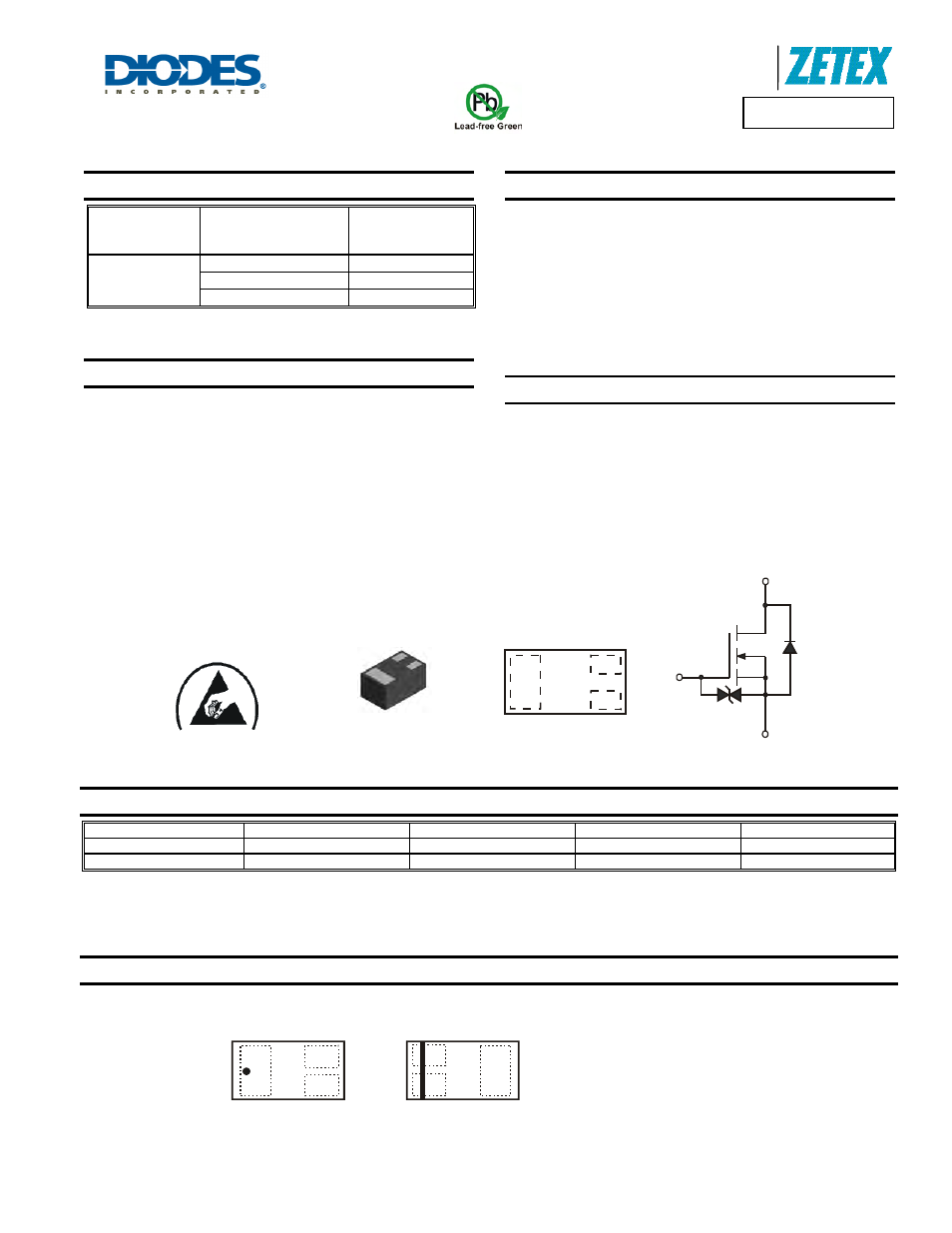

Marking Information
DFN1006-3
Equivalent Circuit
Top View
Internal Schematic
Bottom View
NI = Product Type Marking Code
DMN2300UFB-7
DMN2300UFB-7B
Top View
Bar Denotes Gate
and Source Side
Top View
Dot Denotes
Drain Side
NI
NI
Source
Body
Diode
Gate
Protection
Diode
Gate
Drain
D
S
G
ESD PROTECTED TO 2kV
