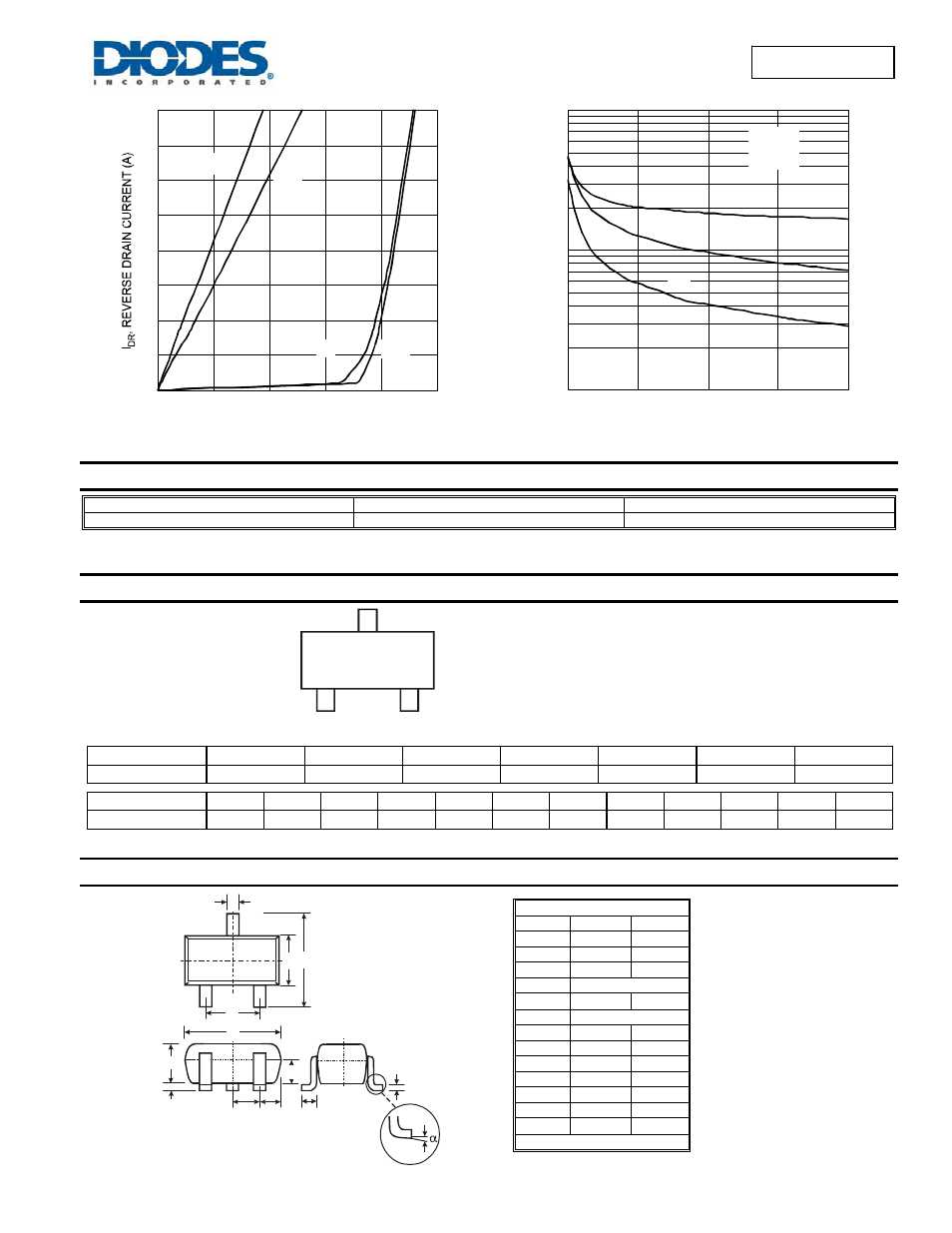

Fig. 7 Reverse Drain Current vs. Source-Drain Voltage
0
0.5
1
1.5
2
2.5
3
3.5
4
0 0.2 0.4 0.6 0.8 1
V , SOURCE-DRAIN VOLTAGE (V)
SD
V = 4.5V
GS
2.5V
0V -4.5V
Fig. 8 Typical Total Capacitance
10
100
1,000
0 5 10 15 20
V , DRAIN-SOURCE VOLTAGE (V)
DS
C
,
C
A
P
A
C
IT
A
N
C
E (
p
F
)
f = 1MHz
V
= 0V
GS
T = 25°C
A
C
rss
C
oss
C
iss
Ordering Information
(Note 4)
Part Number Case Packaging
DMN2114SN-7 SC59 3000/Tape & Reel
Notes: 4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Date Code Key
Year 2006 2007 2008 2009 2010 2011 2012
Code T U V W X Y Z
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Package Outline Dimensions
SC59
Dim Min Max
A 0.35 0.50
B 1.50 1.70
C 2.70 3.00
D 0.95
E ⎯ ⎯
G 1.90
H 2.90 3.10
J 0.013 0.10
K 1.00 1.30
L 0.35 0.55
M 0.10 0.20
N 0.70 0.80
α 0° 8°
All Dimensions in mm
NS2 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: T = 2006
M = Month ex: 9 = September
NS2
YM
A
M
J
L D E
B C
H
K
G
TOP VIEW
N
