DMN2075UDW
Document number: DS35542 Rev. 1 - 2
5 of 6
www.diodes.com
September 2011
© Diodes Incorporated
DMN2075UDW
NEW PROD
UC
T
0.00001 0.0001 0.001 0.01 0.1 1 10 100 1,000
t1, PULSE DURATION TIMES (sec)

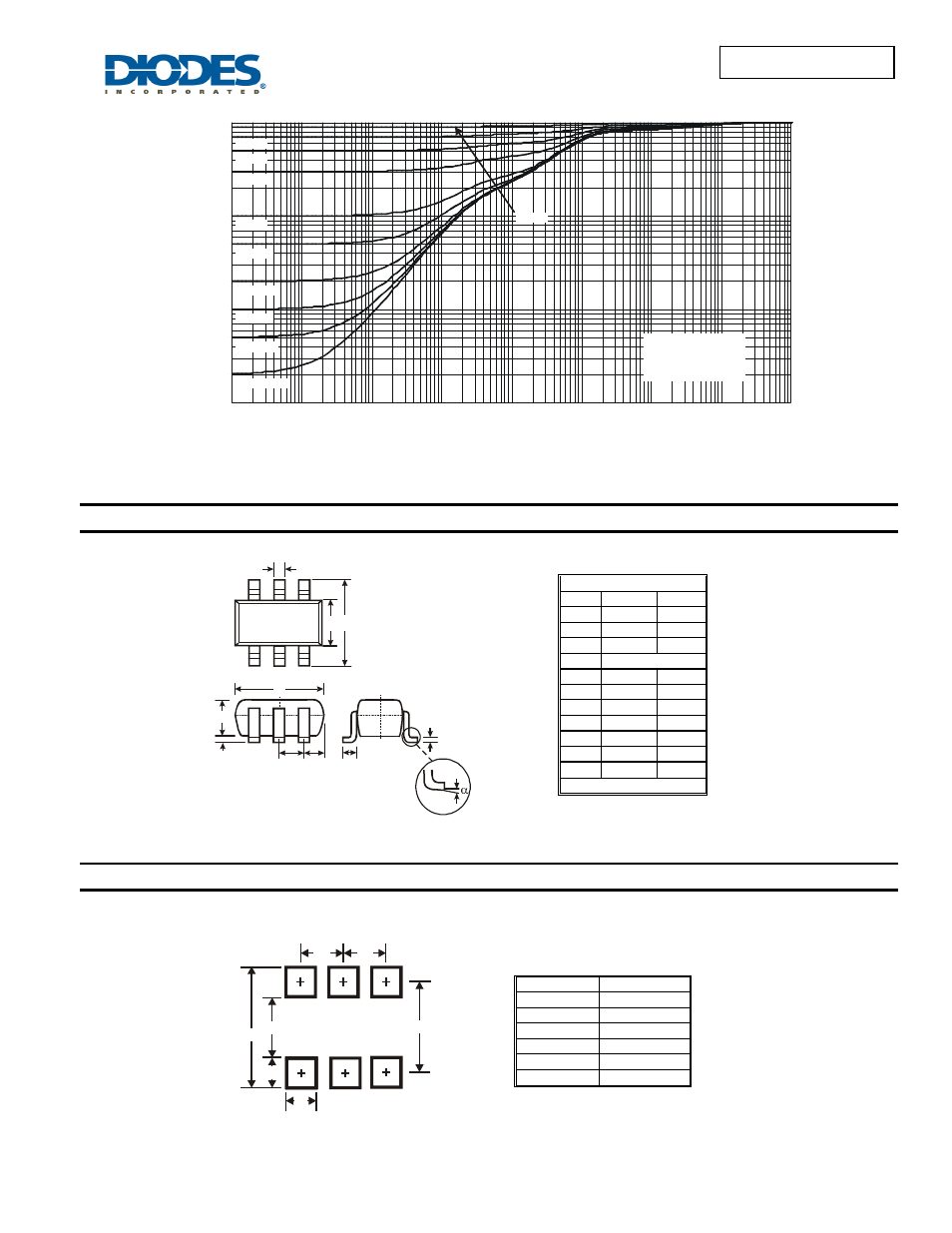

Fig. 12 Transient Thermal Resistance
R (t) = r(t) * R θ θ JA JA
R = 225°C/W
Duty Cycle, D = t1/ t2
θJA
0.001
0.01
0.1
r(
t),
T
R
A
N
SI
EN
T
T
H
E
R
MA
L
R
ES
IS
T
AN
C
E
1
D = 0.7
D = 0.9
D = 0.5
D = 0.3
D = 0.1
D = 0.05
D = 0.02
D = 0.01
D = 0.005
Single Pulse
Package Outline Dimensions
Suggested Pad Layout
SOT363
Dim Min Max
A 0.10 0.30
B 1.15 1.35
C 2.00 2.20
D 0.65 Typ
F 0.40 0.45
H 1.80 2.20
J 0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.22
α 0° 8°
All Dimensions in mm
Dimensions Value (in mm)
Z 2.5
G 1.3
X 0.42
Y 0.6
C1 1.9
C2 0.65
A
M
J
L D
B C
H
K
F
X
Z
Y
C1
C2 C2
G
