DMN2013UFX
Document number: DS36657 Rev. 2 - 2
5 of 6
www.diodes.com
March 2014
© Diodes Incorporated
DMN2013UFX

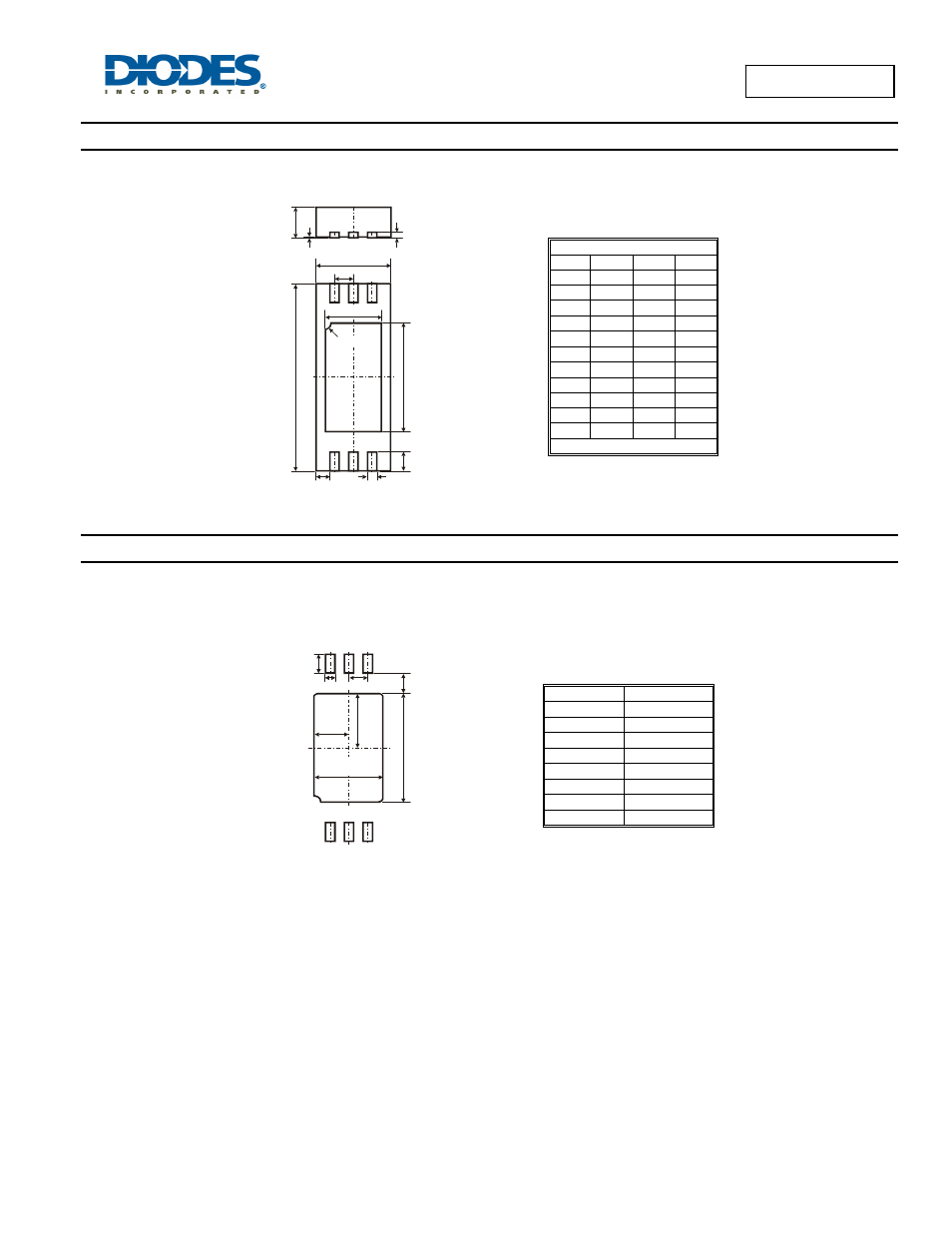

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
W-DFN5020-6
Dim Min Max Typ
A 0.75 0.85 0.80
A1 0 0.05 0.02
A3   0.15
b 0.20 0.30 0.25
D 1.90 2.10 2.00
D2 1.40 1.60 1.50
e   0.50
E 4.90 5.10 5.00
E2 2.80 3.00 2.90
L 0.35 0.65 0.50
Z   0.375
All Dimensions in mm
Dimensions Value (in mm)
C 0.50
G 0.35
X 0.35
X1 0.90
X2 1.80
Y 0.70
Y2 1.60
Y3 3.20
e
D
A3
A1
A
E
D2
E2
L
Z b
Pin 1 ID
Y3
X2
X1 Y2
X C
Y
G
