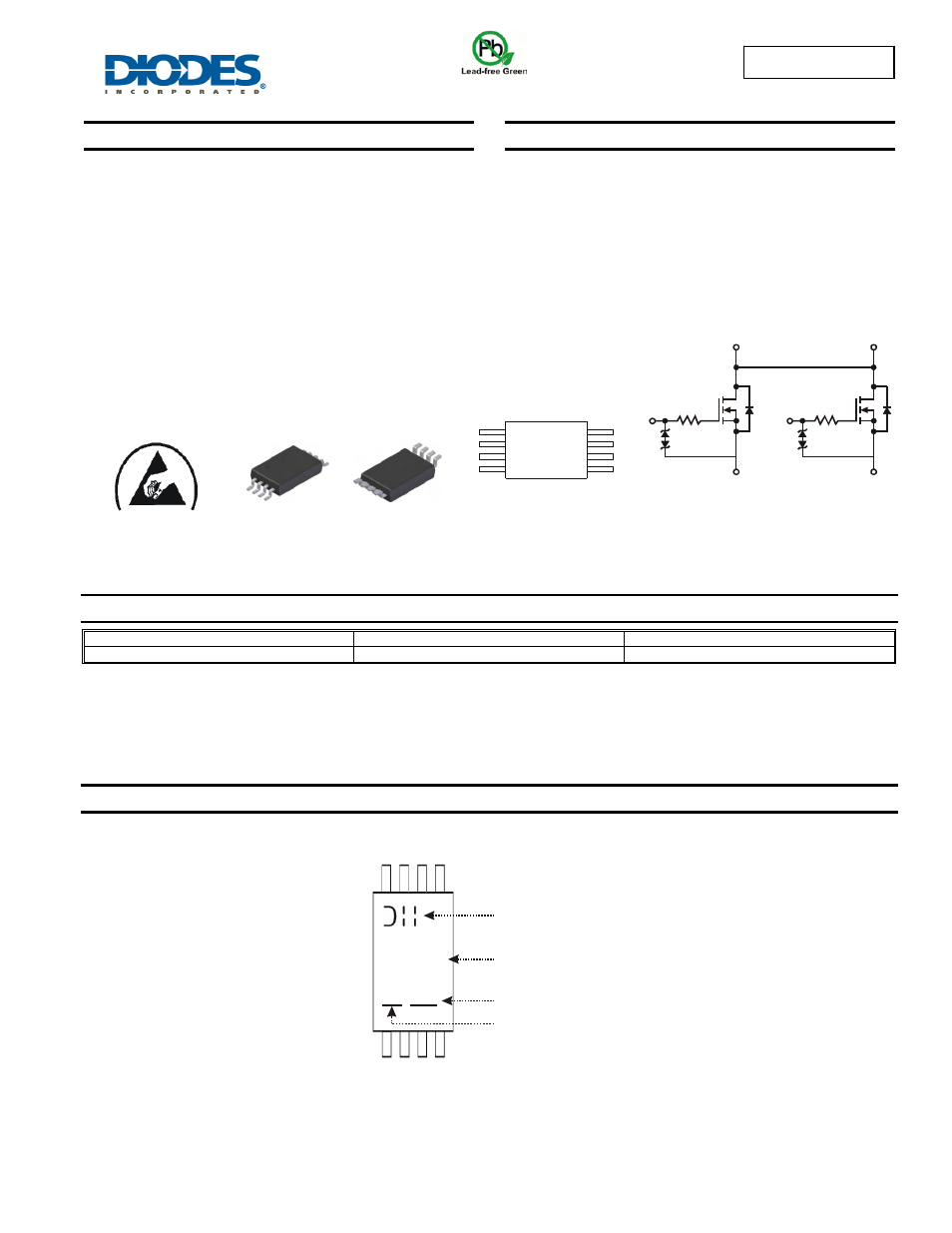

DMG6968UTS
Document number: DS31793 Rev. 5 - 2
1 of 6
March 2012
© Diodes Incorporated
DMG6968UTS
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
ESD Protected Up To 2KV
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TSSOP-8
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
•
Weight: 0.039 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMG6968UTS-13
TSSOP-8
2500 / 13” Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Top View
Internal Schematic
Bottom View
ESD PROTECTED TO 2kV
G1
S1
S2
G2
D
D
N-Channel
N-Channel
Top View
Pin Configuration
8
7
6
5
1
2
3
4
D
S1
S1
G1
D
S2
S2
G2
Top View
Logo
Part no
Year: “09” = 2009
Xth week : 01~52
1
4
8
5
N6968U
YY WW
