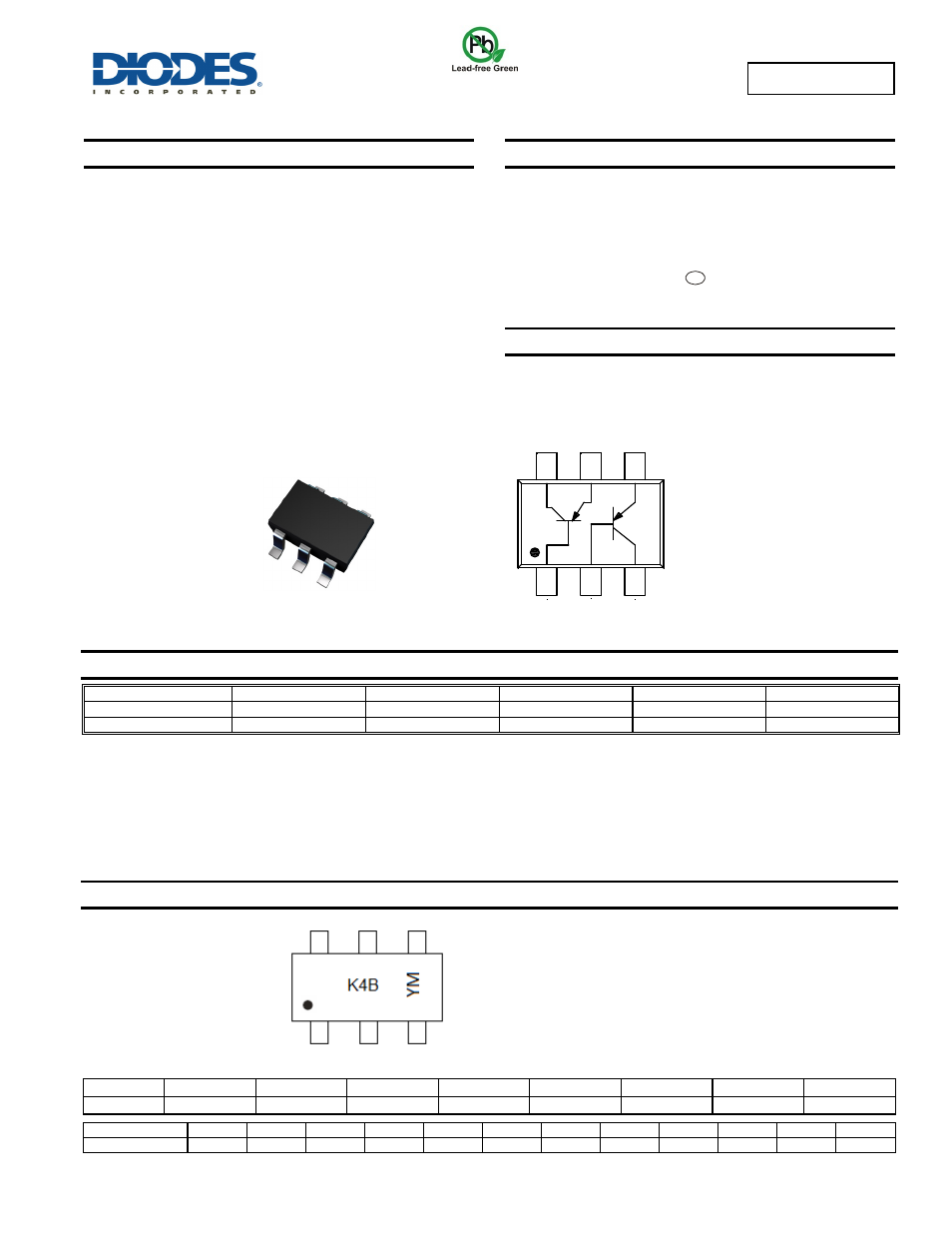

DMMT3906W
40V MATCHED PAIR PNP SMALL SIGNAL TRANSISTOR IN SOT363
Features
• BV
CEO
> -40V
•
I
C
= -200mA High Collector Current
•
Pair of PNP Transistors That Are Intrinsically Matched (Note 1)
•
2% Matching on Current Gain (h
FE
)
•
2mV Matching on Base-Emitter Voltage (V
BE
)
•
Fully Internally Isolated in a Small Surface Mount Package
•
Totally Lead-Free & Fully RoHS Compliant (Notes 2 & 3)
•
Halogen and Antimony Free. "Green" Device (Note 4)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP Capable (Note 5)
Mechanical Data
• Case:
SOT363
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ Matte Tin Finish. Solderable per
MIL-STD-202, Method 208
•
Weight: 0.006 grams (approximate)
Applications
• Current
Mirrors
•
Differential and Instrumentation Amplifiers
• Comparators
Ordering Information
(Note 4 & 5)
Part Number
Compliance
Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
DMMT3906W-7-F AEC-Q101
K4B
7
8
3,000
DMMT3906WQ-7-F Automotive
K4B
7
8
3,000
Notes:
1. Intrinsically matched pair as this is built with adjacent die from the same wafer.
2. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
3. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
4. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
6. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2010
2011
2012
2013
2014
2015
2016 2017
Code
X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Device Schematic and Pin-Out
Top View
K4B = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 2 = February)
SOT363
e3
C 2
E 2
E 1
B 2
B 1
C 1
