Diodes FCX705 - Manual

S E M I C O N D U C T O R S
SUMMARY
V
CEO
=120V; V
CE(sat)
= 1.3V; I
C
= -1A
DESCRIPTION
This new PNP Darlington transistor provides users with very efficient performance
combining low V
CE (sat)
and very high H
FE
to give extremely low on state losses at
120V operation. This makes it deal for use in a variety of efficient driving functions
including motors, lamps relays and solenoids and will also benefit circuits
requiring high output current switching.
FEATURES
•
Low Saturation Voltage
•
H
FE
min 3K @ -1A
•
I
C
= -2A Continuous
•
SOT89 package with Ptot - 1W
•
Specification is also available in Eline and SOT223
package outlines
APPLICATIONS
•
Various driving functions
- Lamps
- Motors
- Relays and solenoids
•
High output current switches
DEVICE MARKING
705
FCX705
ISSUE 4 - DECEMBER 2002
120V PNP SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR
1

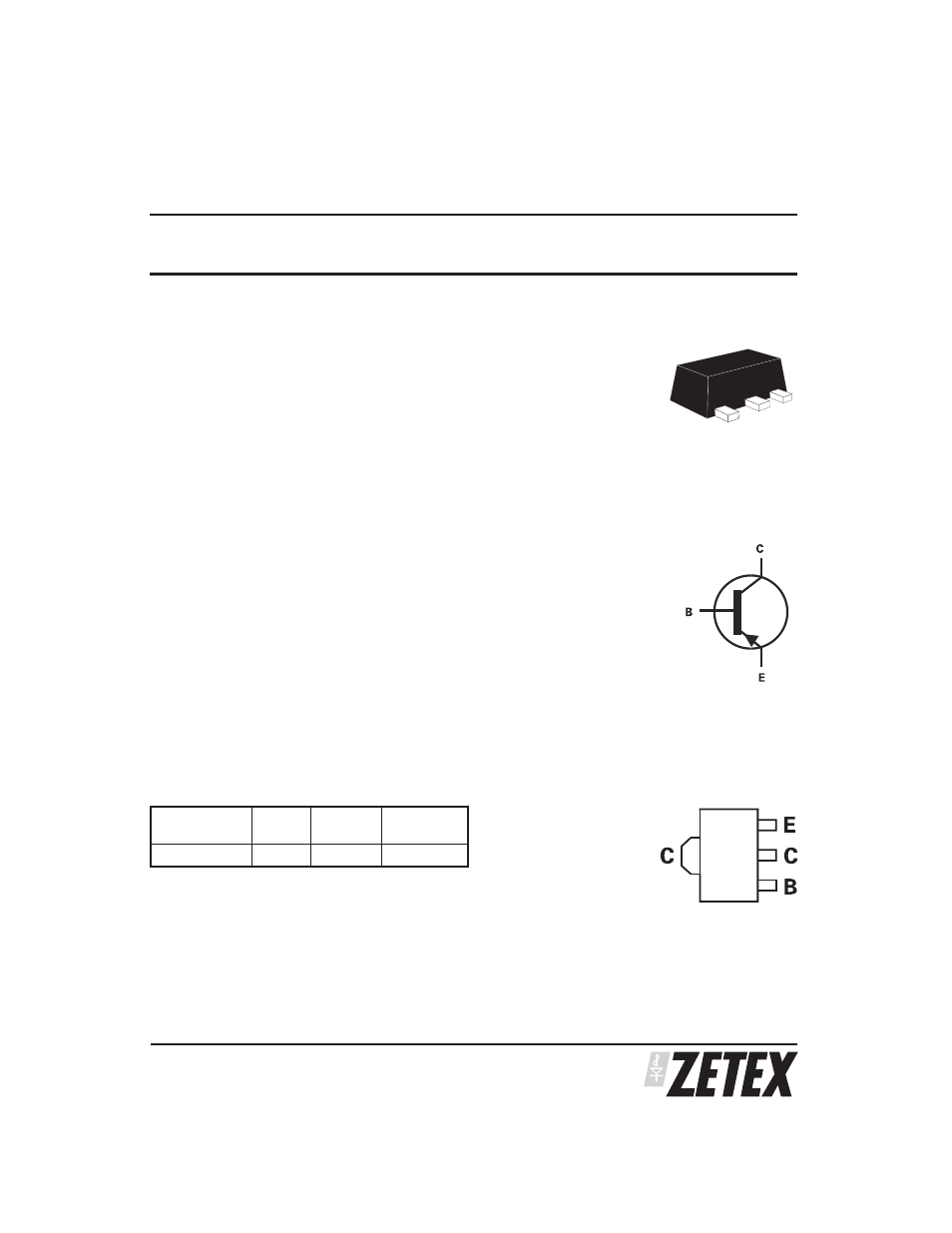

SOT89
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY
PER REEL
FCX705TA 7’‘ 12mm 1000 units
ORDERING INFORMATION
Top View
