DS31224 Rev. 4 - 2 4 of 4
www.diodes.com
DEMD48
© Diodes Incorporated
Ordering Information
(Note 4)
Device Packaging Shipping
DEMD48-7 SOT-563 3000/Tape & Reel
Note: 4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
NEW PROD
UC
T
Marking Information
D48 YM
D48 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: U = 2007
M = Month ex: 9 = September
Date Code Key
Year 2007 2008 2009 2010 2011 2012
Code U V W X Y Z
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

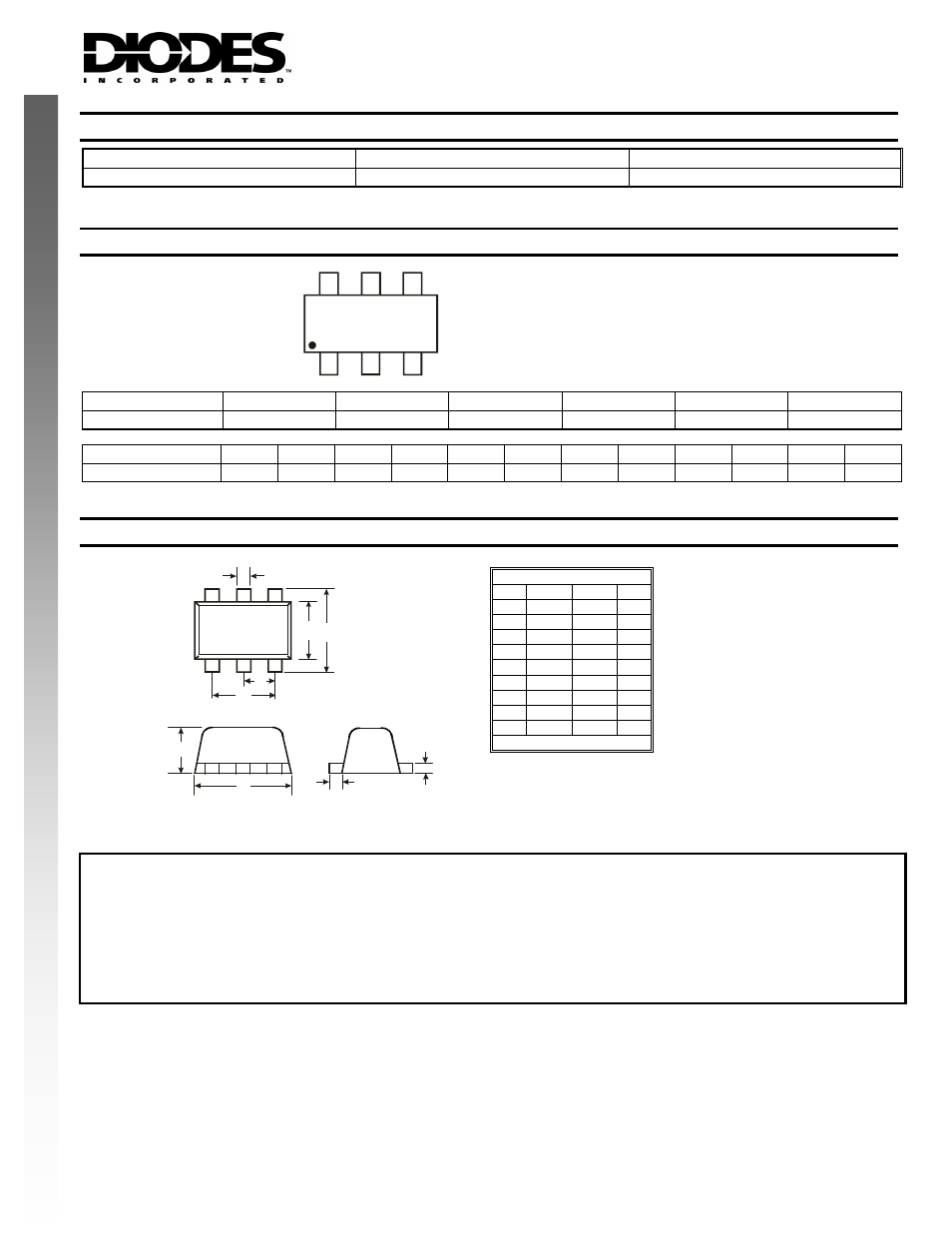

Package Outline Dimensions
SOT-563
Dim Min Max Typ
A 0.15 0.30 0.20
B 1.10 1.25 1.20
C 1.55 1.70 1.60
D - - 0.50
G 0.90 1.10 1.00
H 1.50 1.70 1.60
K 0.55 0.60 0.60
L 0.10 0.30 0.20
M 0.10 0.18 0.11
All Dimensions in mm
A
M
L
B C
H
K
G
D
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
