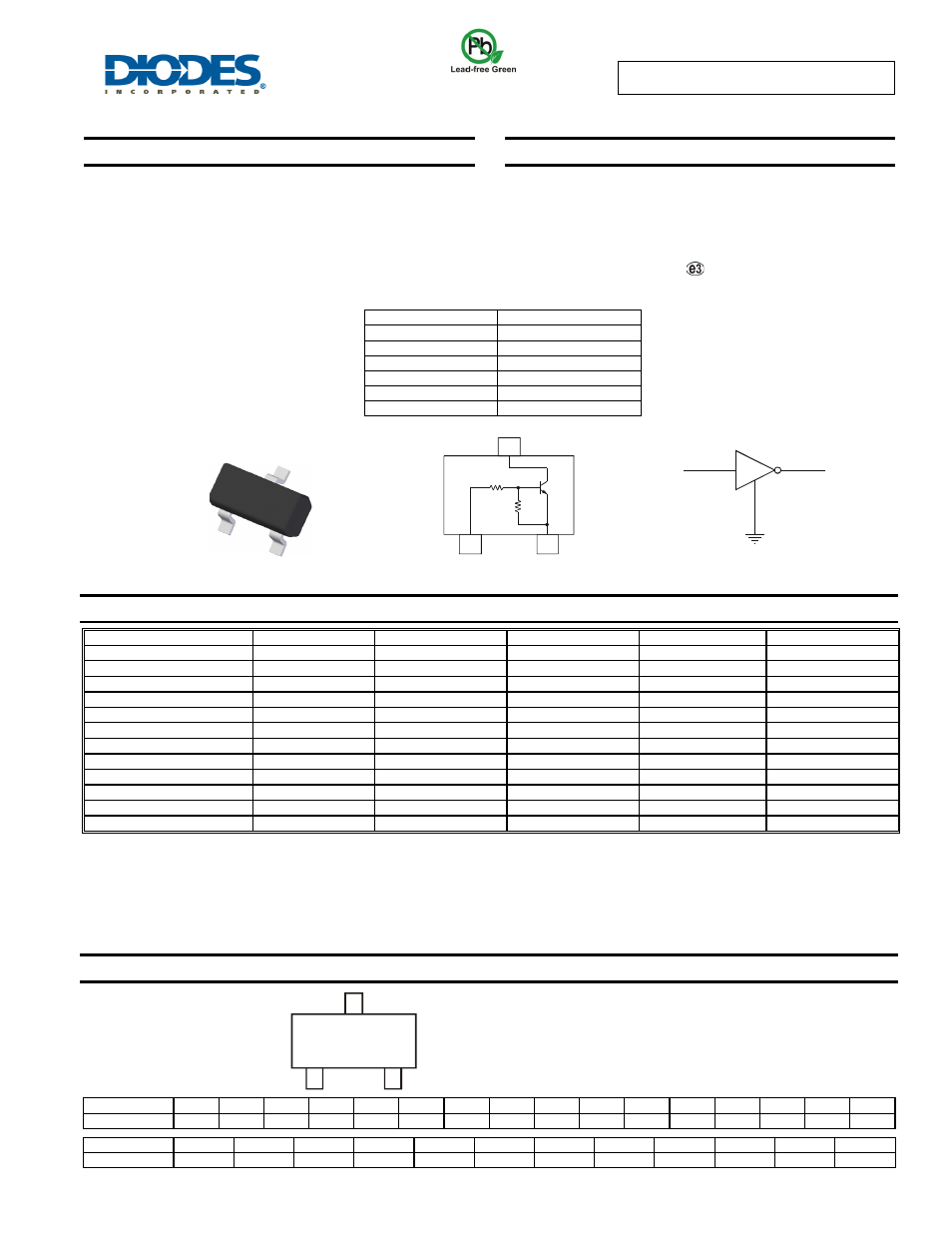

DDTC(R1 = R2 SERIES) CA
Document number: DS30329 Rev. 12 - 2
1 of 5
www.diodes.com
November 2013
© Diodes Incorporated
DDTC(R1 = R2 SERIES) CA
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
Epitaxial Planar Die Construction
Complementary PNP Types Available (DDTA)
Built-In Biasing Resistors, R1
R2
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.008 grams (approximate)
Part Number
R1, R2 (NOM)
DDTC123ECA 2.2KΩ
DDTC143ECA 4.7KΩ
DDTC114ECA 10KΩ
DDTC124ECA 22KΩ
DDTC144ECA 47KΩ
DDTC115ECA 100KΩ
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DDTC123ECA-7-F AEC-Q101
N04
7
8
3,000
DDTC123ECAQ-7-F Automotive
N04
7
8
3,000
DDTC143ECA-7-F AEC-Q101
N08
7
8
3,000
DDTC143ECA-13-F AEC-Q101
N08
13
8
10,000
DDTC114ECA-7-F AEC-Q101
N13
7
8
3,000
DDTC114ECAQ-7-F Automotive
N13
7
8
3,000
DDTC114ECAQ-13-F Automotive
N13
13
8
10,000
DDTC124ECA-7-F AEC-Q101
N17
7
8
3,000
DDTC144ECA-7-F AEC-Q101
N20
7
8
3,000
DDTC144ECAQ-7-F Automotive
N20
7
8
3,000
DDTC144ECAQ-13-F Automotive
N20
13
8
10,000
DDTC115ECA-7-F AEC-Q101
N24
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2002
2003
2004
2005
2006 2007
2008
2009
2010
2011 2012
2013
2014
2015
2016
2015
Code N P R S T U V W X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Device Schematic
Top View
SOT23
R1
OUT
B
C
E
R2
3
2
1
IN
GND(0)
NXX = Product Type Marking Code, See Table above
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
NXX
YM
1
3
2
GND (0)
C
B
IN
OUT
E
Equivalent Inverter Circuit
