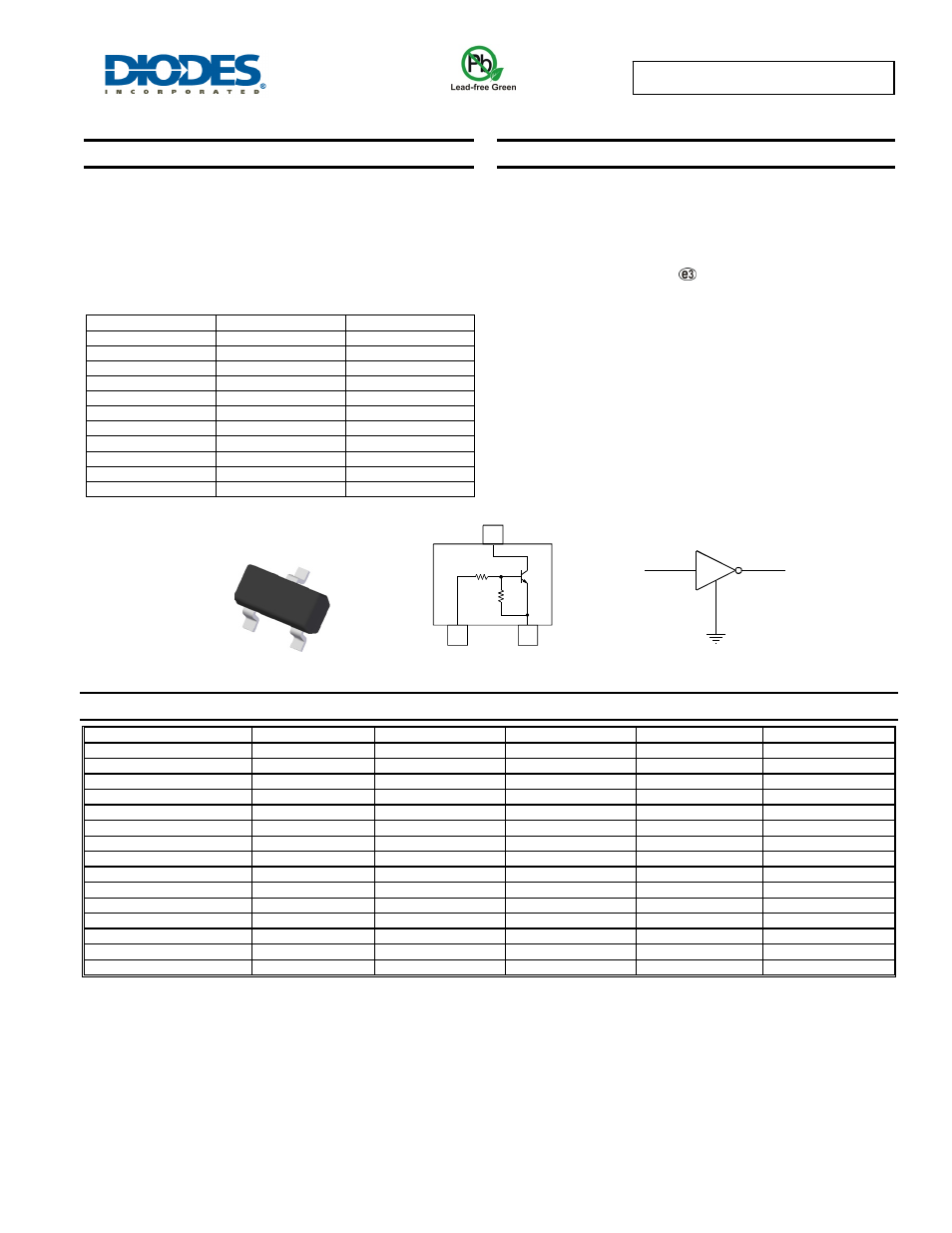

DDTC (R1
R2 SERIES) CA
Document number: DS30330 Rev. 11 - 2
1 of 6
November 2013
© Diodes Incorporated
DDTC (R1
R2 SERIES) CA
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
Epitaxial Planar Die Construction
Complementary PNP Types Available (DDTA)
Built-In Biasing Resistors, R1
R2
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Part Number
R1 (NOM)
R2 (NOM)
DDTC113ZCA 1KΩ 10KΩ
DDTC123YCA 2.2KΩ 10KΩ
DDTC123JCA 2.2KΩ 47KΩ
DDTC143XCA 4.7KΩ 10KΩ
DDTC143FCA 4.7KΩ 22KΩ
DDTC143ZCA 4.7KΩ 47KΩ
DDTC114YCA 10KΩ 47KΩ
DDTC114WCA 10KΩ 4.7KΩ
DDTC124XCA 22KΩ 47KΩ
DDTC144VCA 47KΩ 10KΩ
DDTC144WCA 47KΩ 22KΩ
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.008 grams (approximate)
Ordering Information
(Notes 3 & 4)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DDTC113ZCA-7-F
AEC-Q101 N02
7
8
3,000
DDTC123YCA-7-F
AEC-Q101 N05
7
8
3,000
DDTC123JCA-7-F AEC-Q101
N06
7
8
3,000
DDTC143XCA-7-F AEC-Q101
N09
7
8
3,000
DDTC143FCA-7-F AEC-Q101
N10
7
8
3,000
DDTC143ZCA-7-F AEC-Q101
N11
7
8
3,000
DDTC143ZCAQ-7-F Automotive
N11
7
8
3,000
DDTC143ZCAQ-13-F Automotive
N11
13
8
10,000
DDTC114YCA-7-F AEC-Q101
N14
7
8
3,000
DDTC114YCAQ-7-F Automotive
N14
7
8
3,000
DDTC114YCAQ-13-F Automotive
N14
13
8
10,000
DDTC114WCA-7-F AEC-Q101
N15
7
8
3,000
DDTC124XCA-7-F AEC-Q101
N18
7
8
3,000
DDTC144VCA-7-F AEC-Q101
N21
7
8
3,000
DDTC144WCA-7-F AEC-Q101
N22
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
5. For packaging details, go to our website at
Top View
Device Schematic
Equivalent Inverter Circuit
R1
OUT
B
C
E
R2
3
2
1
IN
GND(0)
1
3
2
GND (0)
C
B
IN
OUT
E
SOT23
