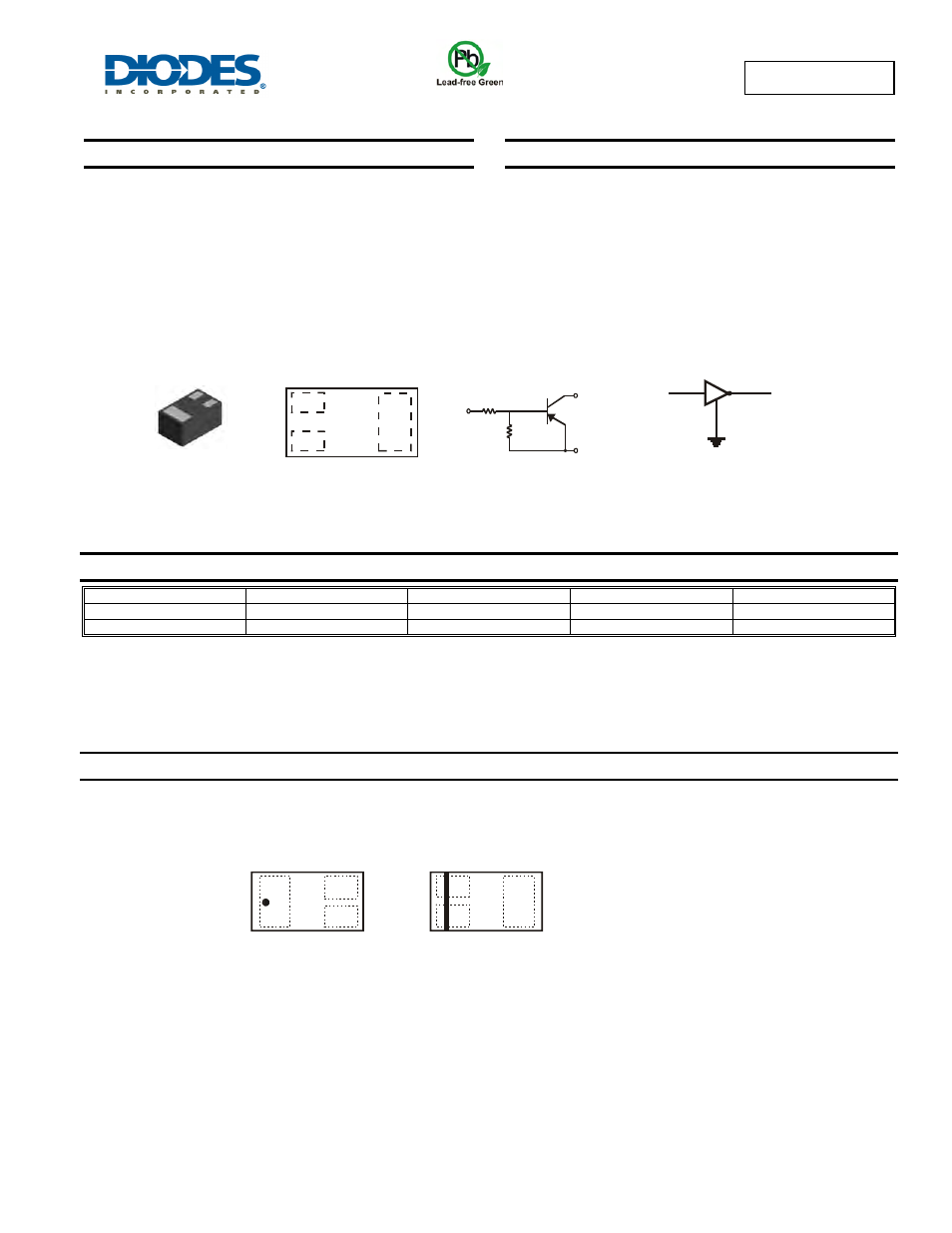

DDTA114YLP
50V PRE-BIASED SMALL SIGNAL SURFACE MOUNT PNP TRANSISTOR
Features
•
Epitaxial Planar Die Construction
•
Ultra-Small Leadless Surface Mount Package
•
Ideally Suited for Automated Assembly Processes
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: DFN1006-3
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish — NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0009 grams (approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DDTA114YLP-7
P3 7 8
3,000
DDTA114YLP-7B
P3 7 8
10,000
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w
Marking Information
IN
C 3
E
2
1
R
2
R
1
B
+ Supply
or GND
OUT
(or -supply)
47k
Ω
10k
Ω
1
3
2
IN
OUT
(or -supply)
B
C
E
GND (or +supply)
P3 = Product Type Marking Code
Bottom View
Device Symbol
Top View
Pin-Out
Equivalent Inverter
Circuit
DFN1006-3
C
E
B
DDTC113TLP-7
DDTC113TLP-7B
Top View
Bar Denotes Base
and Emitter Side
Top View
Dot Denotes
Collector Side
P3
P3
