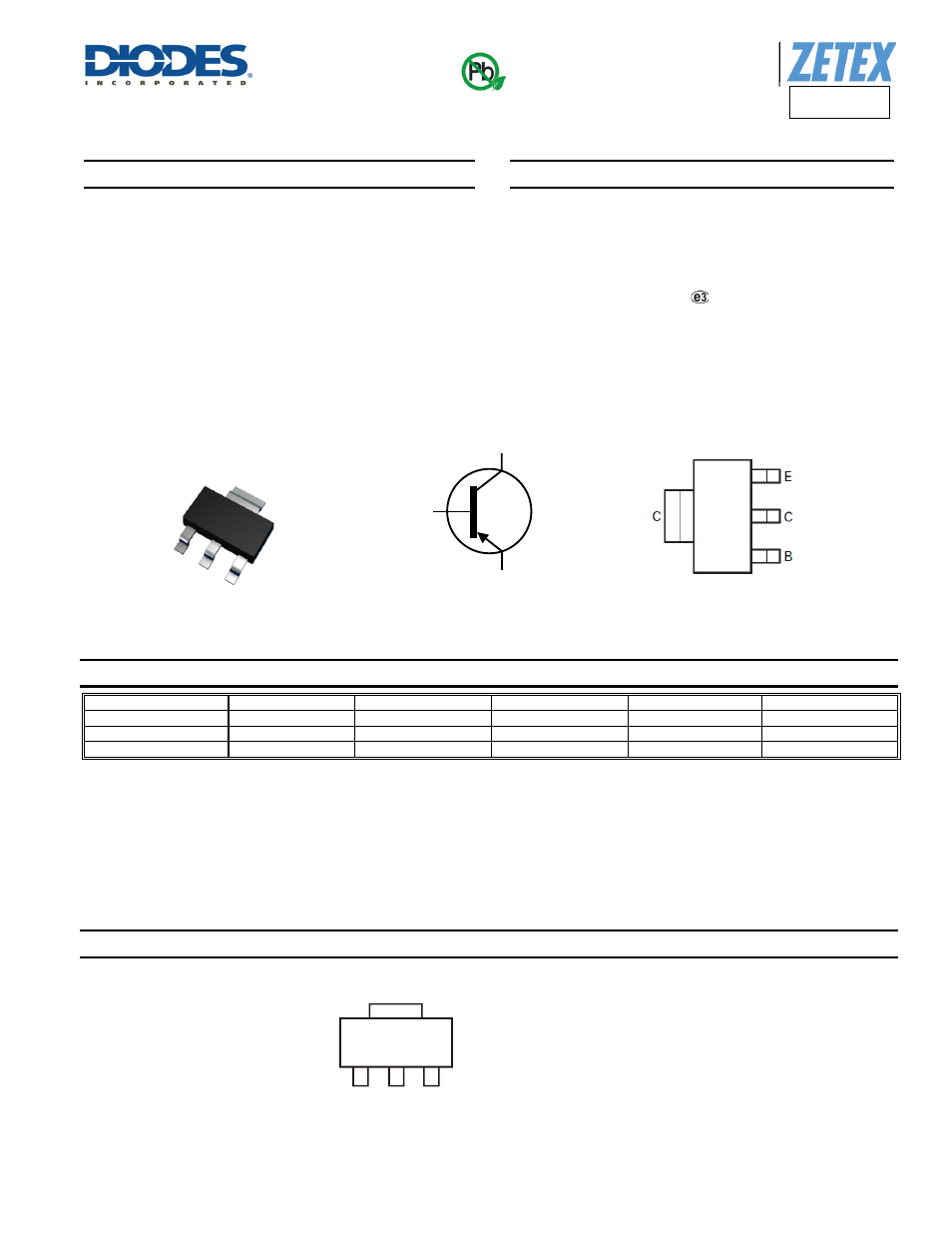

FZT957
Da
tasheet Number: DS33191 Rev. 5 - 2
1 of 7
May 2014
© Diodes Incorporated
FZT957
A Product Line of
Diodes Incorporated
300V PNP MEDIUM POWER TRANSISTOR IN SOT223
Features
• BV
CEO
> -300V
•
I
C
= -1A high Continuous Collector Current
•
I
CM
= -2A Peak Pulse Current
•
Low Saturation Voltage V
CE(sat)
< -240mV @ -1A
•
h
FE
specified up to -2A for a high gain hold up
•
Complementary NPN Type: FZT857
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Mechanical Data
• Case:
SOT223
•
Case material: molded plastic. “Green” molding compound.
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FZT957TA AEC-Q101 FZT957
7
12
1,000
FZT957TC AEC-Q101 FZT957
13
12
4,000
FZT957QTC Automotive FZT957
13
12
4,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to5. For packaging details, go to our website at
Marking Information
FZT957 = Product Type Marking Code
SOT223
Top View
Device Symbol
Top View
Pin-Out
Green
C
E
B
FZT
951
FZT
957
