FZT855

A Product Line of

Diodes Incorporated






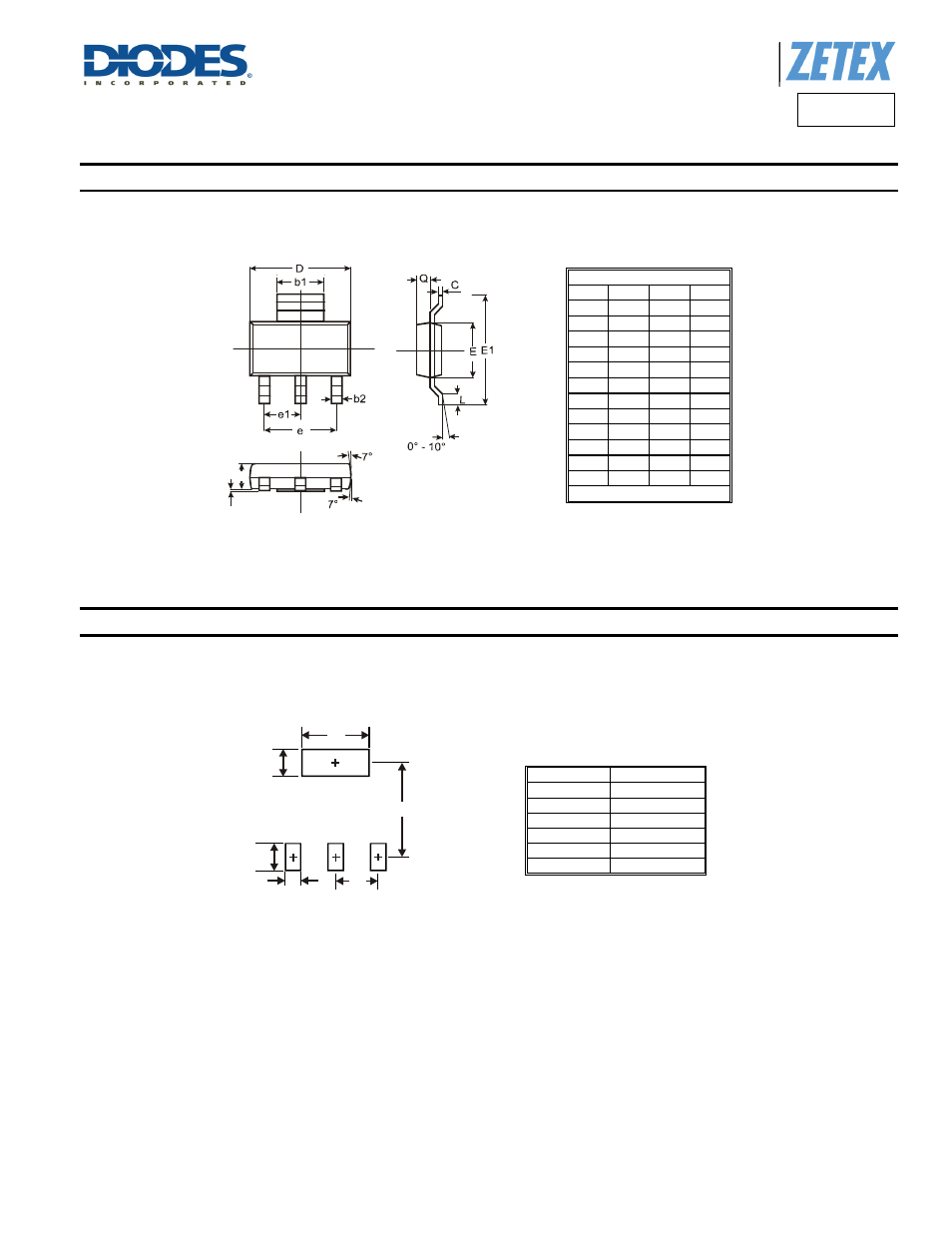

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.


























Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.



















For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances
between device Terminals and PCB tracking.














SOT223

Dim Min Max Typ

A 1.55

1.65

1.60

A1 0.010 0.15 0.05

b1 2.90 3.10 3.00
b2 0.60 0.80 0.70

C 0.20

0.30

0.25

D 6.45

6.55

6.50

E 3.45

3.55

3.50

E1 6.90 7.10 7.00

e — —

4.60

e1 — — 2.30

L 0.85

1.05

0.95

Q 0.84

0.94

0.89

All Dimensions in mm

Dimensions Value (in mm)

X1

3.3

X2

1.2

Y1

1.6

Y2

1.6

C1

6.4

C2

2.3

A1

A

X2

C1

C2

X1

Y2

Y1
