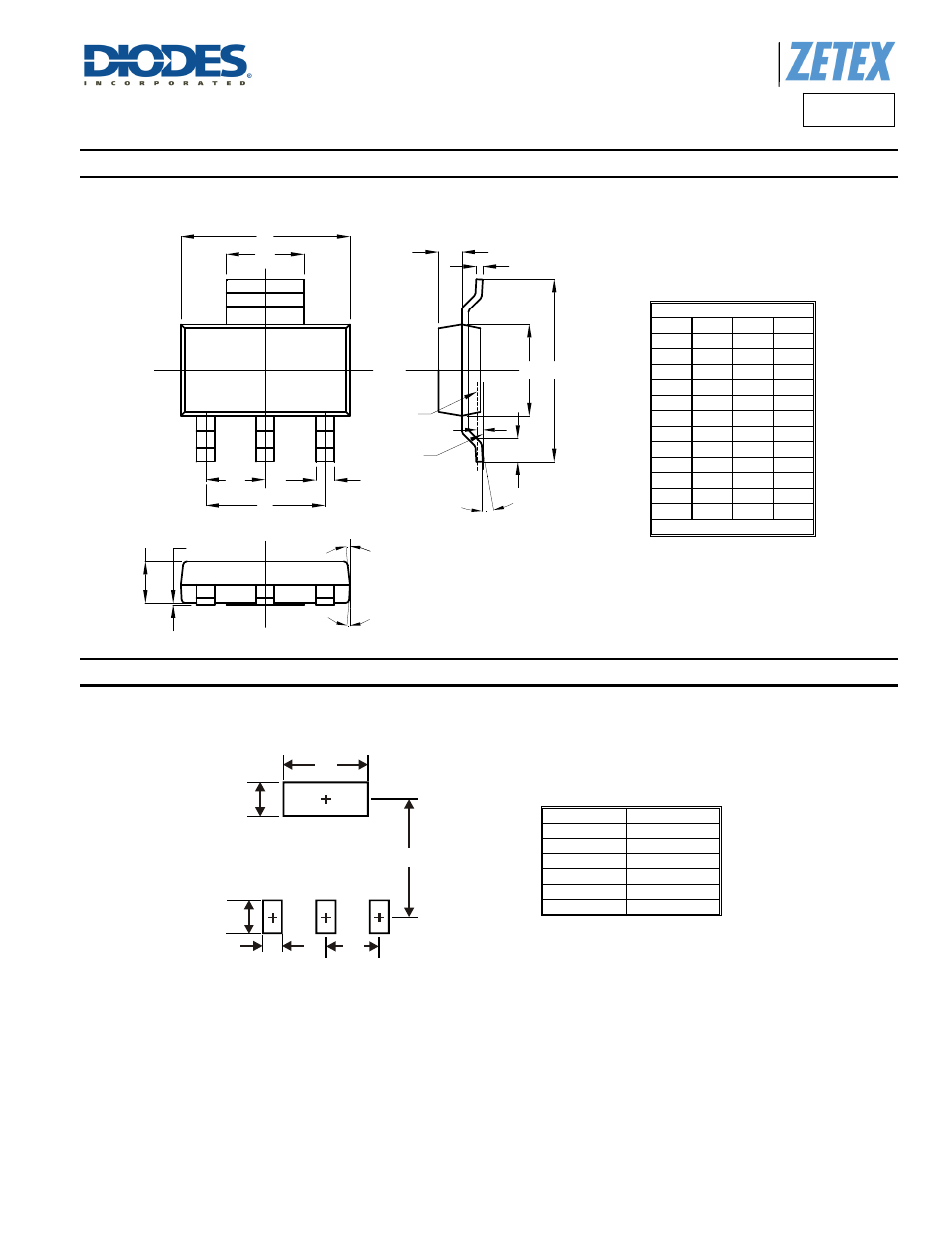

Package Outline Dimensions
Suggested Pad Layout
Note: For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device
Terminals and PCB tracking.
SOT223
Dim Min Max Typ
A 1.55 1.65 1.60
A1 0.010 0.15 0.05
b 0.60 0.80 0.70
b1 2.90 3.10 3.00
C 0.20 0.30 0.25
D 6.45 6.55 6.50
E 3.45 3.55 3.50
E1 6.90 7.10 7.00
e - -
4.60
e1 - - 2.30
L 0.85 1.05 0.95
Q 0.84 0.94 0.89
All Dimensions in mm
Dimensions Value (in mm)
X1
3.3
X2
1.2
Y1
1.6
Y2
1.6
C1
6.4
C2
2.3
X2
C1
C2
X1
Y2
Y1
