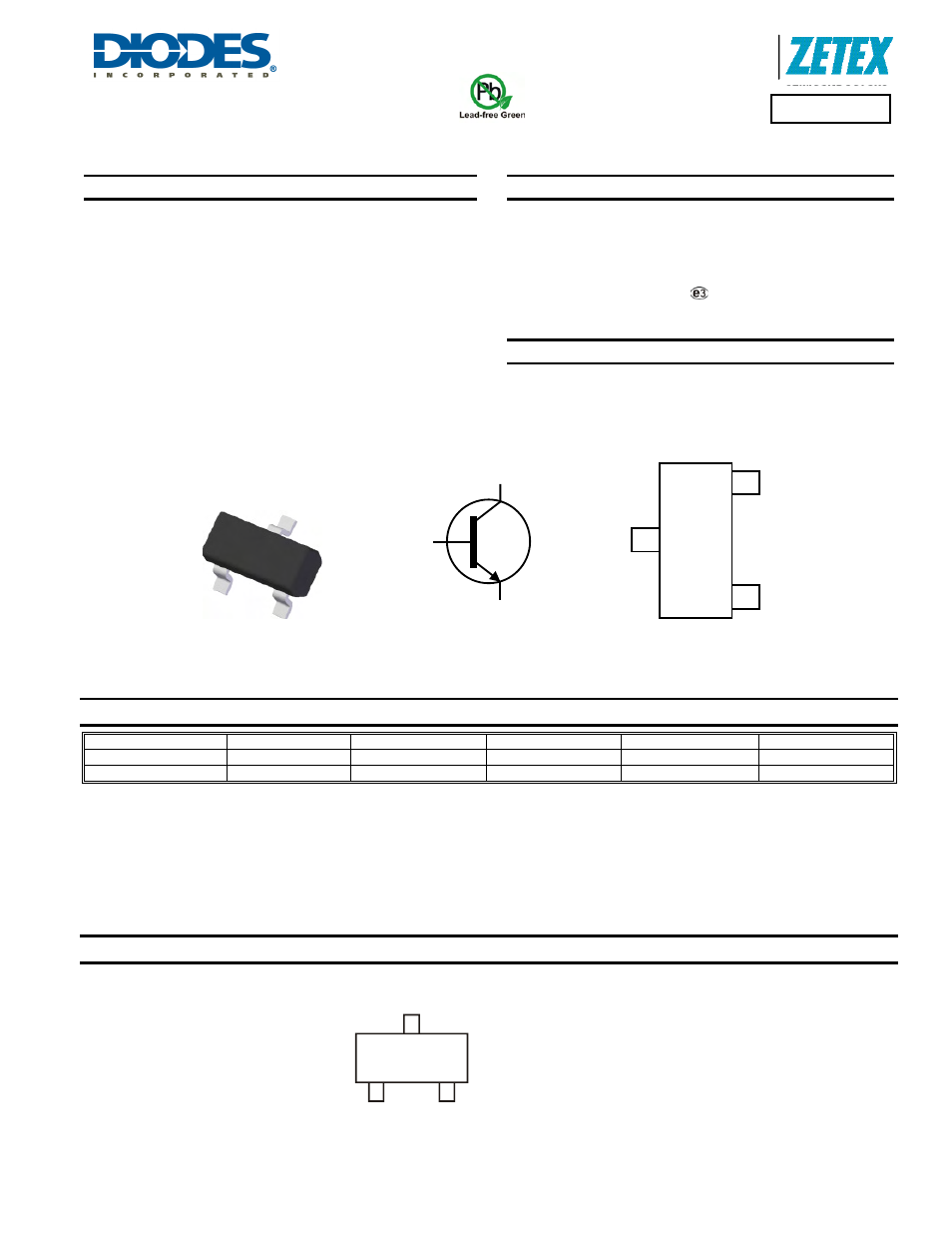

FMMT625
Document number: DS33237 Rev. 5 - 2
1 of 7
September 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT625
150V NPN SILICON LOW SATURATION TRANSISTOR IN SOT23
Features
• BV
CEO
> 150V
•
Maximum Continuous Collector Current I
C
= 1A
• 625mW
Power
dissipation
•
h
FE
characterised up to 3.0A
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Mechanical Data
• Case:
SOT23
•
Case Material: molded plastic, “Green” molding compound
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight 0.008 grams (approximate)
Applications
• DC-DC
Modules
•
Power Management Functions
•
Motor control and drive functions
Ordering Information
(Note 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FMMT625TA AEC-Q101
625
7
8
3000
units
FMMT625QTA Automotive
625
7
8
3000
units
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at
Marking Information
625 = Product Type Marking Code
625
SOT23
Top View
Pin-Out
Top View
Device Symbol
C
E
B
C
E
B
