FMMTA42
Datasheet Number: DS33126 Rev.7 - 2
4 of 6
www.diodes.com
July 2012
© Diodes Incorporated
FMMTA42
A Product Line of
Diodes Incorporated
Electrical Characteristics
(@T A = +25°C, unless otherwise specified.)
Characteristic Symbol Min Typ Max Unit Test Condition
Collector-Base Breakdown Voltage BV CBO
300 — — V I C = 100µA
Collector-Emitter Breakdown Voltage (Note 10) BV
CEO
300 — — V I
C
= 1mA
Emitter-Base Breakdown Voltage BV
EBO
7 — — V I
E
= 100µA
Collector Cutoff Current I
CBO
— — 100 nA V
CB
= 200V
Emitter Cutoff Current I
EBO
— — 100 nA V
EB
= 6V
Static Forward Current Transfer Ratio
(Note 10)
h
FE
25
40
40
— — —
I C = 1mA, V CE = 10V
I
C
= 10mA, V
CE
= 10V
I
C
= 30mA, V
CE
= 10V
Collector-Emitter Saturation Voltage (Note 10) V CE(sat)
— — 500 mV I C = 20mA, I B = 2mA
Base-Emitter Saturation Voltage(Note 10) V
BE(sat)
— — 900 mV I
C
= 20mA, I
B
= 2mA
Output Capacitance C
obo
— — 6 pF V
CB
= 20V. f = 1MHz
Transition Frequency f
T
50 — — MHz
V
CE
= 20V, I
C
= 10mA,
f = 20MHz
Note: 10. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.

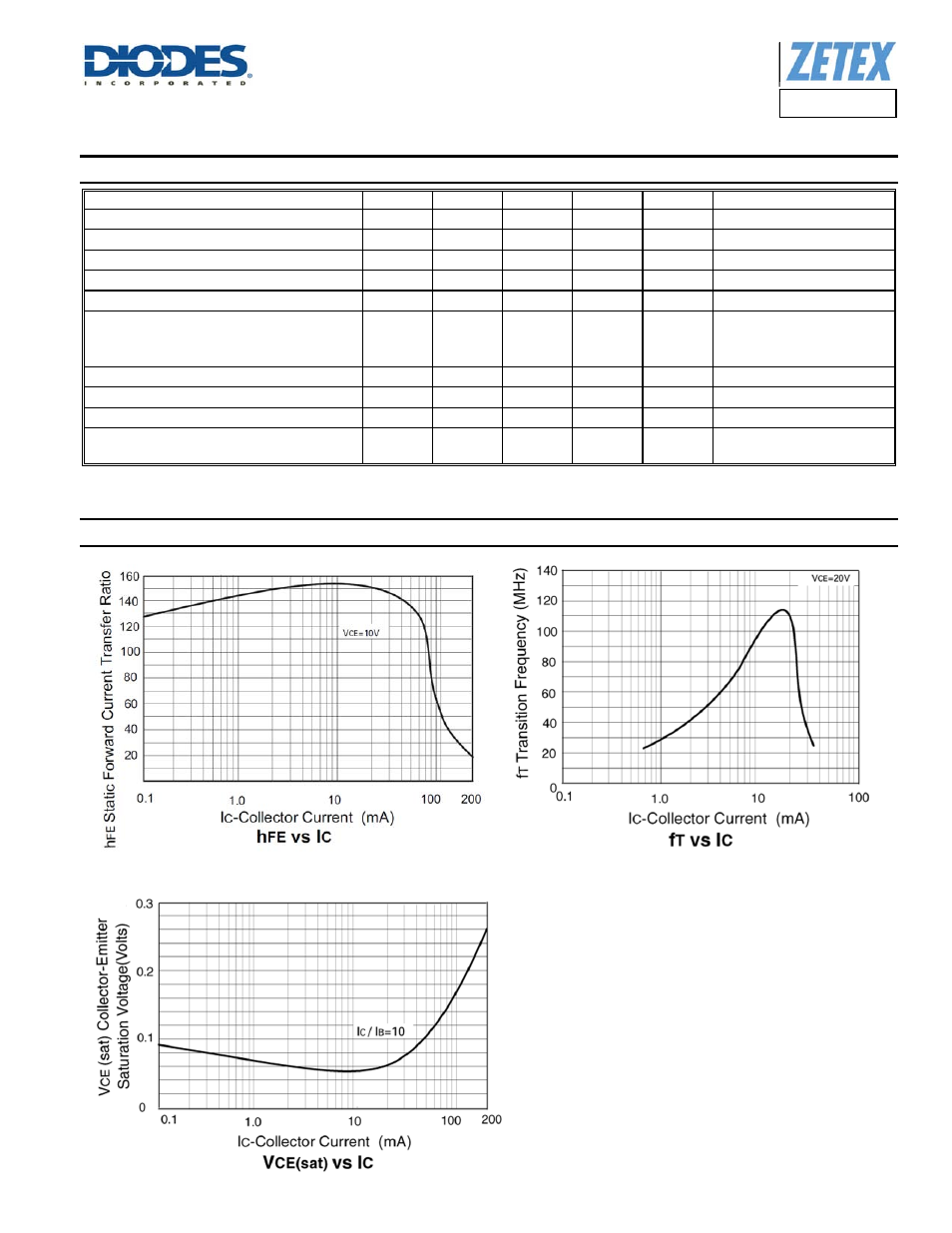

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
