FMMTA42
Datasheet Number: DS33126 Rev.7 - 2
1 of 6
www.diodes.com
July 2012
© Diodes Incorporated
FMMTA42
A Product Line of
Diodes Incorporated

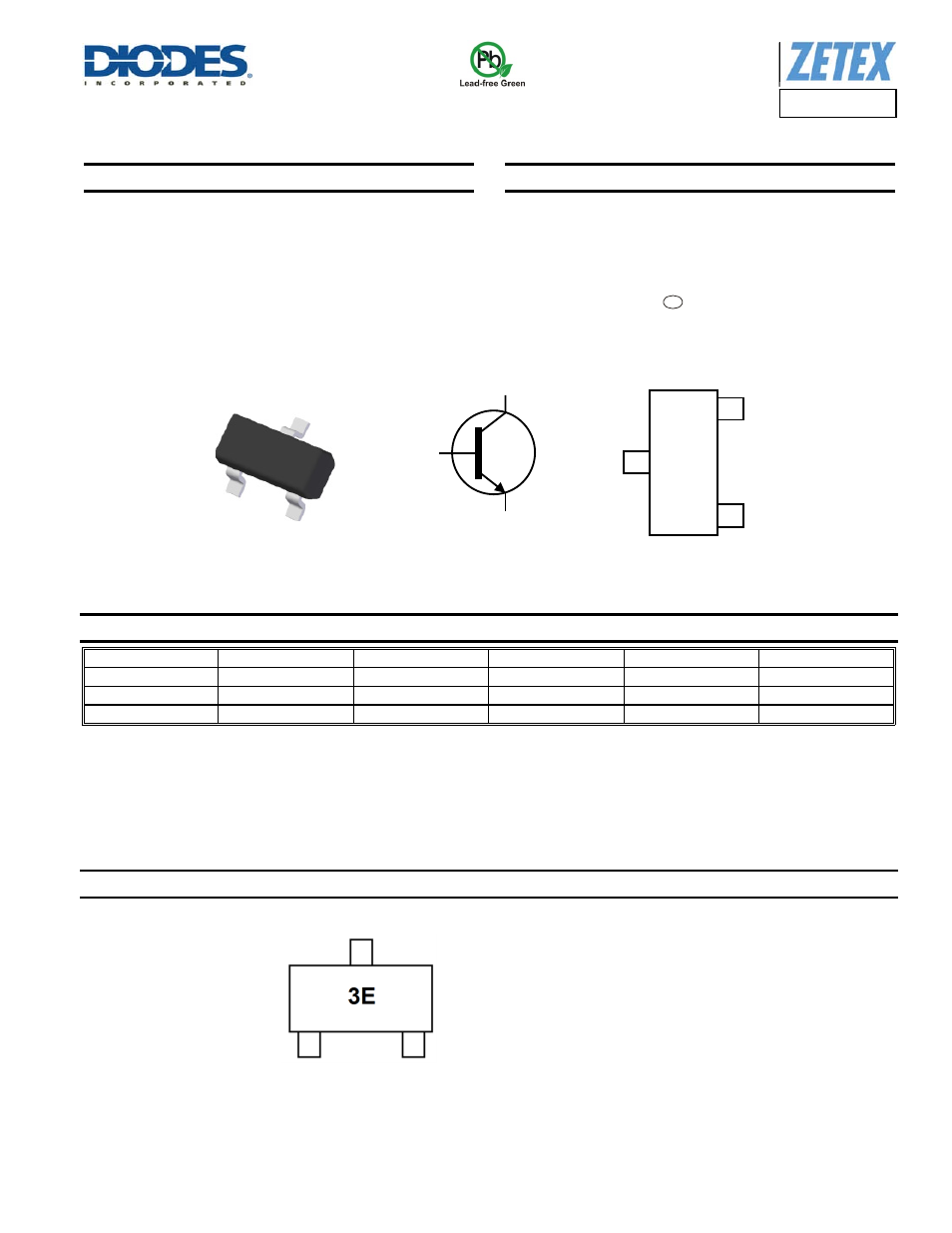

300V NPN HIGH VOLTAGE TRANSISTOR IN SOT23
Features
 BV
CEO
> 300V

I
C
= 200mA high Collector Current
 350mW
Power dissipation
 Excellent h
FE
Characteristics Up To 30mA
 Complementary part number FMMTA92

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)
Mechanical Data
 Case: SOT23

Case material: molded Plastic. “Green” molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208

Weight: 0.008 grams (Approximate)
Ordering Information
(Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMTA42TA AEC-Q101 3E 7 8 3,000
FMMTA42TC AEC-Q101 3E 13 8 10,000
FMMTA42QTA Automotive 3E 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
3E = Product Type Marking Code
e3
SOT23
Top View
Pin-Out
Top View Device Symbol
C
E
B
C
E
B
